Front Lighting Wiring Circuit - Quad Headlamps
Front Lighting Wiring Circuit - Quad Headlamps

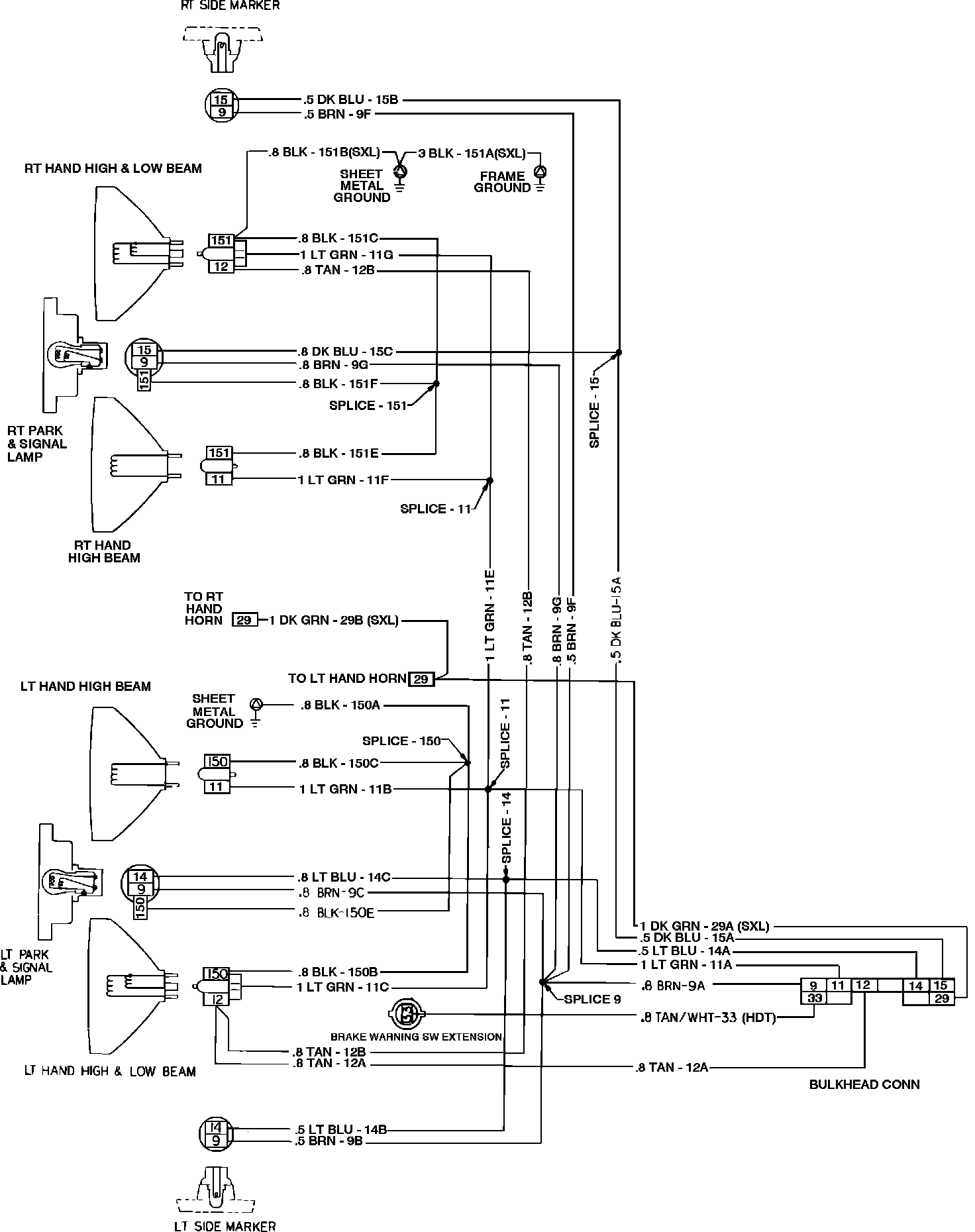

Front Lighting Wiring Circuit (W/Quad Headlamps):
