C 10 1/2 Ton Pickup 2WD L6-250 4.1L VIN D 2-bbl
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Related Tests, Information and Procedures
>>
C Charts
>>
Chart C-4C EST Performance Check
>>
With Carburetor
With Carburetor

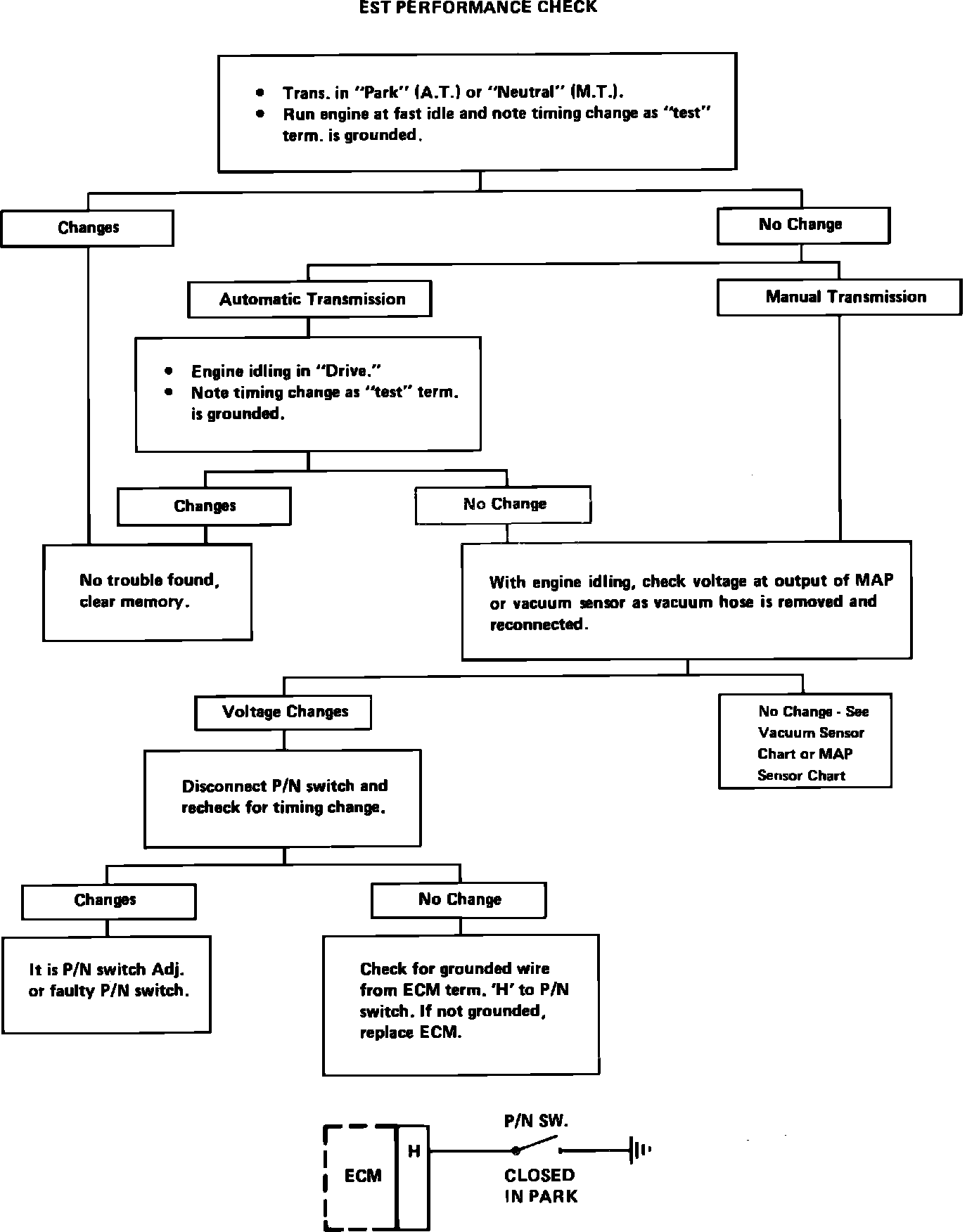

Fig. 4 EST performance check. All carbureted models:
