Home >> Chevrolet >> 2013 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 4ET50 - Automatic Transmission >> Variable Low and 1-2 Reverse Clutch Housing and Front Differential Transfer Drive Gear Disassemble

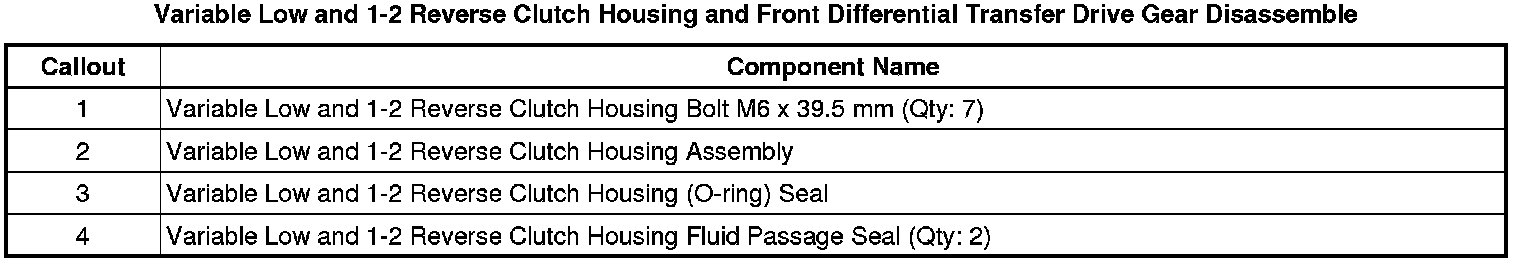

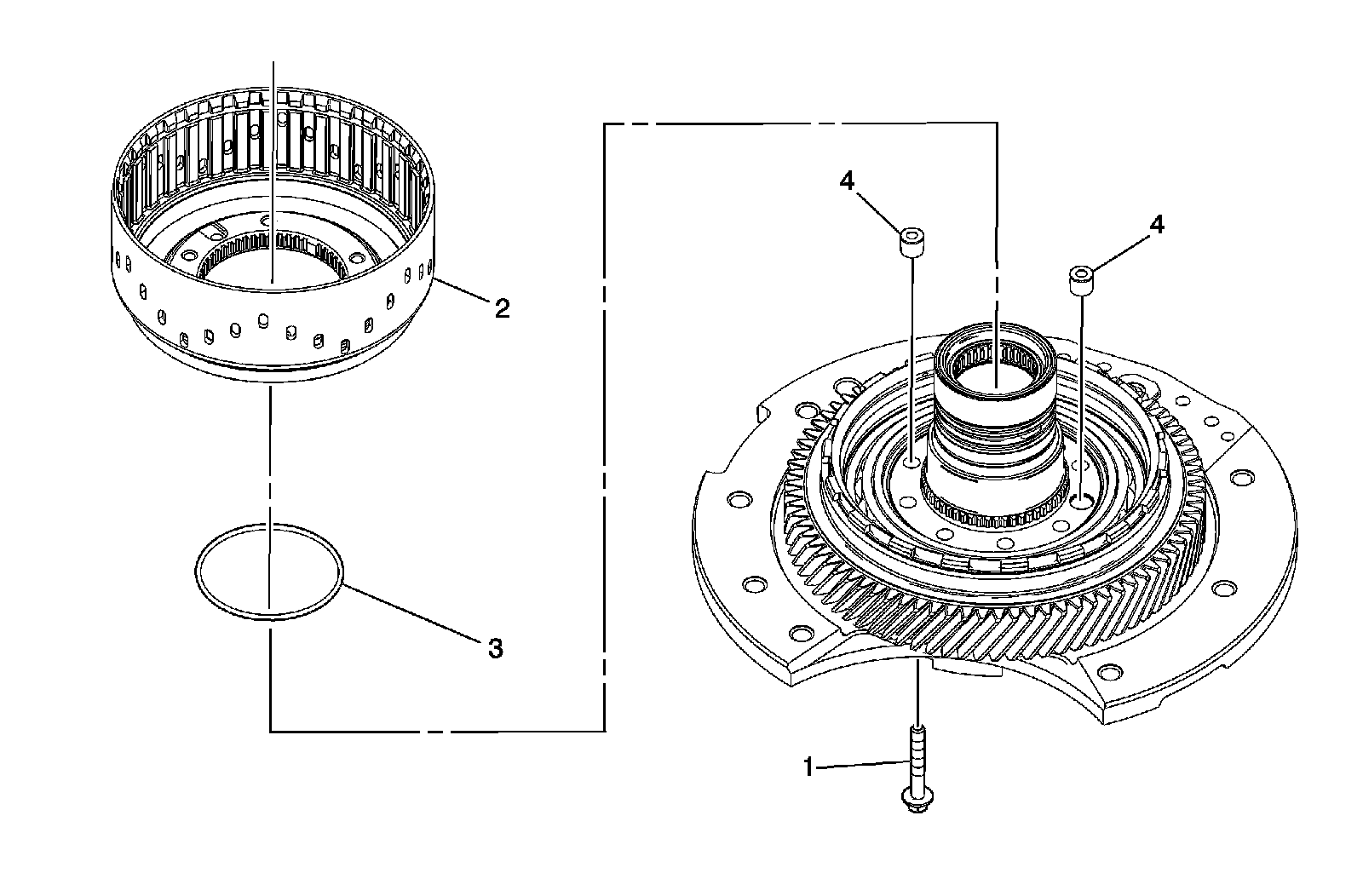

Variable Low and 1-2 Reverse Clutch Housing and Front Differential Transfer Drive Gear Disassemble




Variable Low and 1-2 Reverse Clutch Housing and Front Differential Transfer Drive Gear Disassemble
