Variable High and 2-3-4, Variable Low and 1-2 Reverse, and 1-3 Reverse Clutch Accumulator Piston Removal




Variable High and 2-3-4, Variable Low and 1-2 Reverse, and 1-3 Reverse Clutch Accumulator Piston Removal

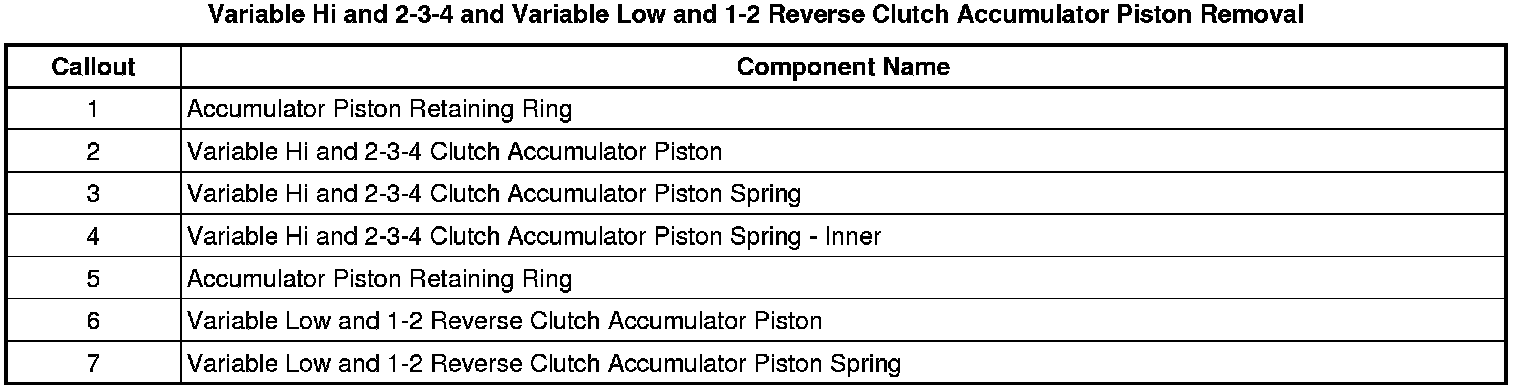

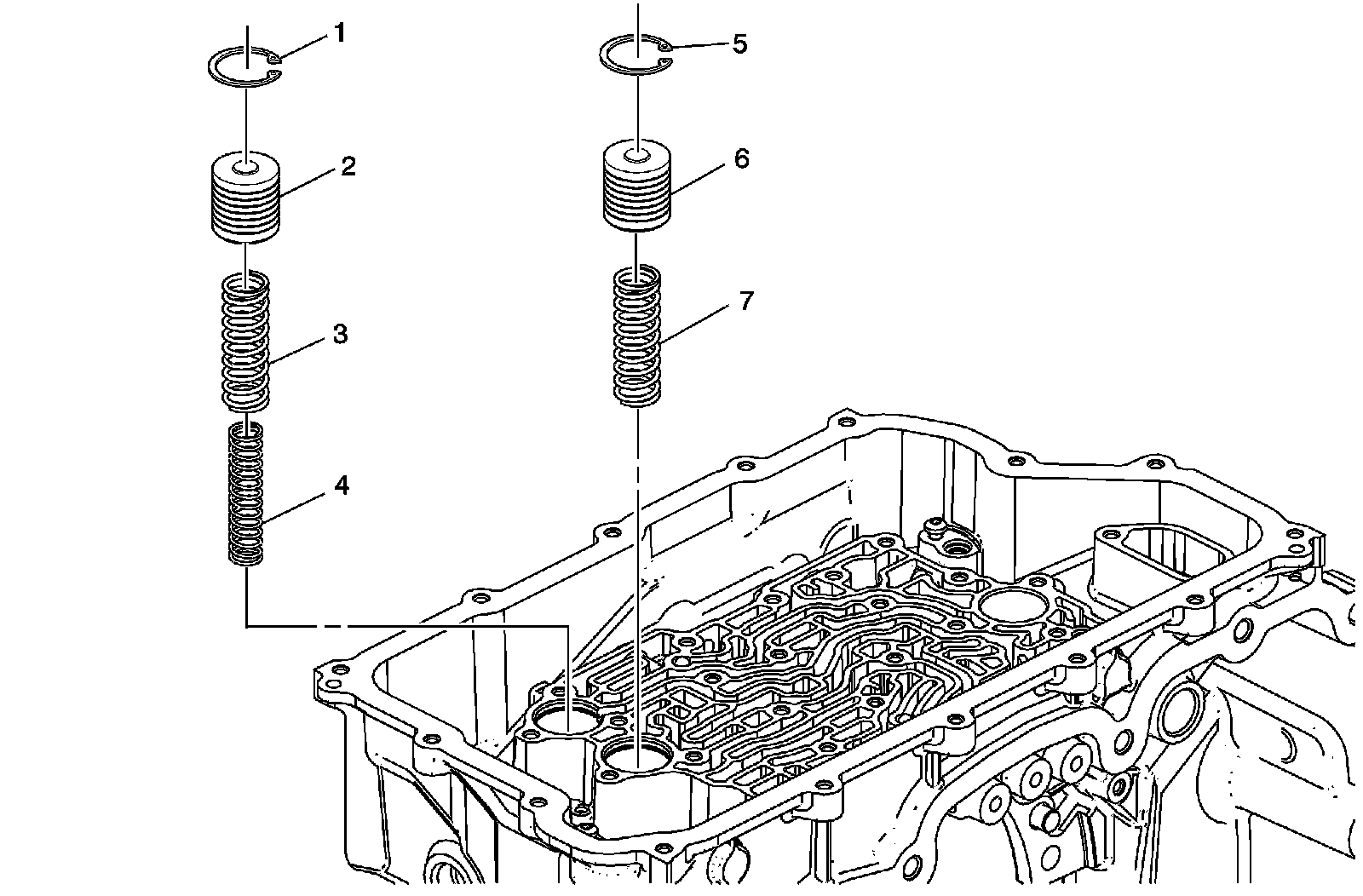

Variable Hi and 2-3-4 and Variable Low and 1-2 Reverse Clutch Accumulator Piston Removal

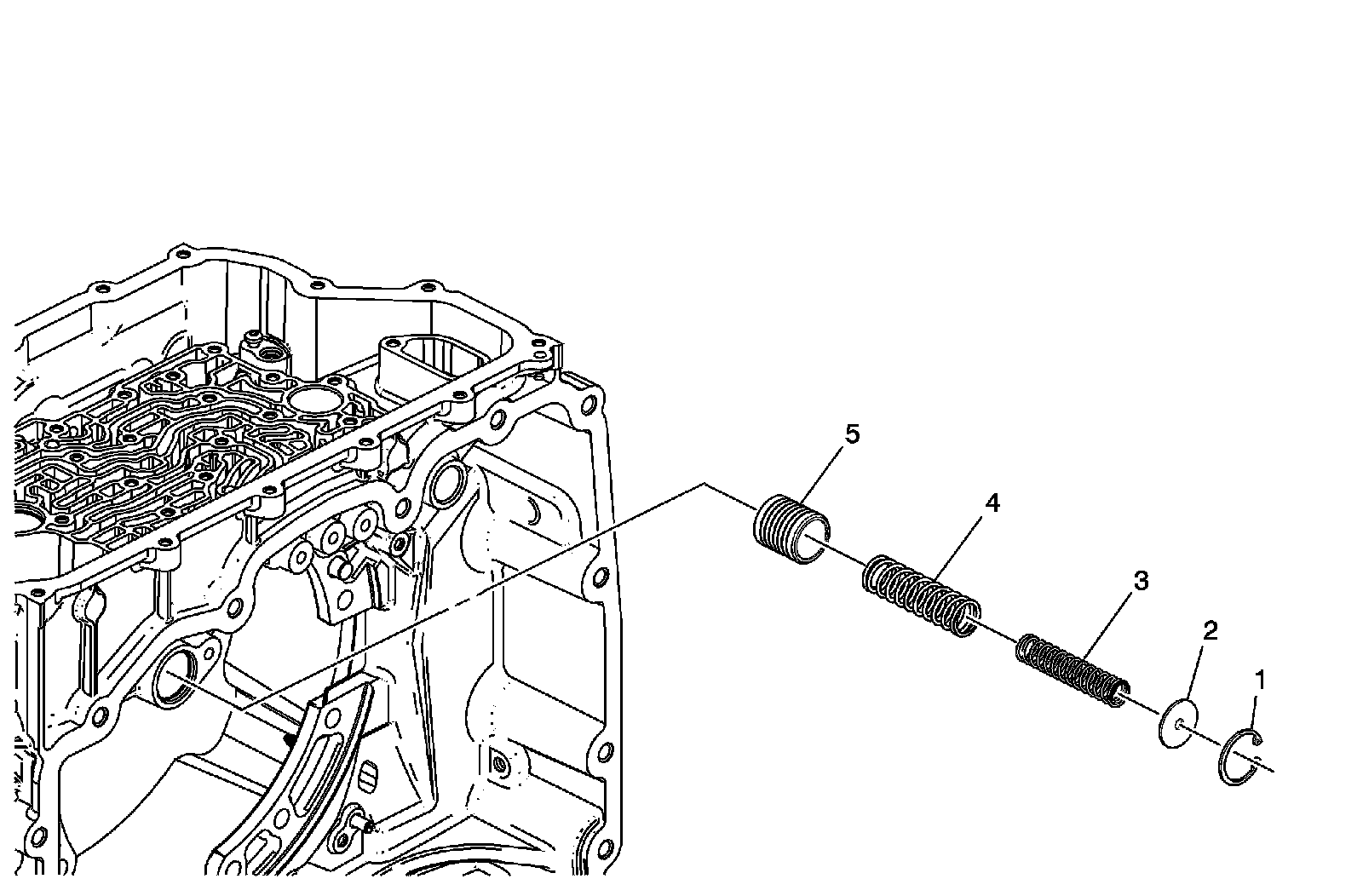

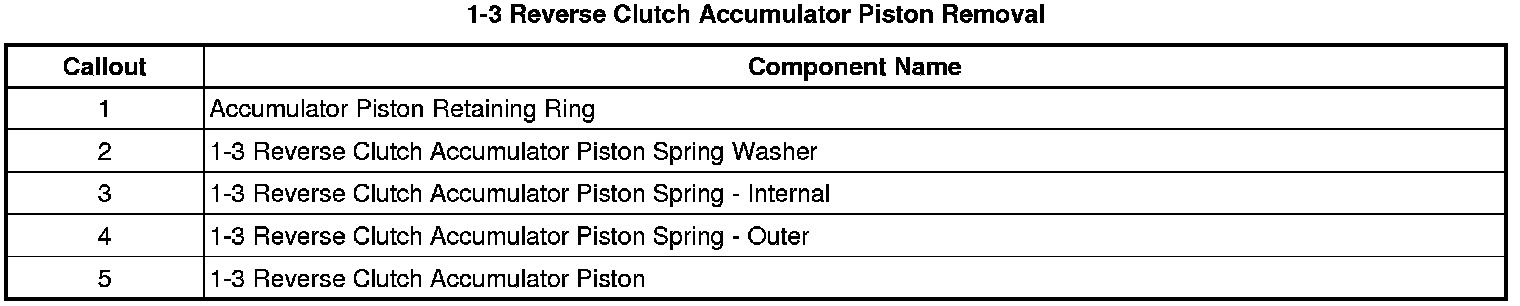

1-3 Reverse Clutch Accumulator Piston Removal
