Front Differential Drive Pinion Gear Roller Bearing and Lubricant Dam Replacement




Front Differential Drive Pinion Gear Roller Bearing and Lubricant Dam Replacement

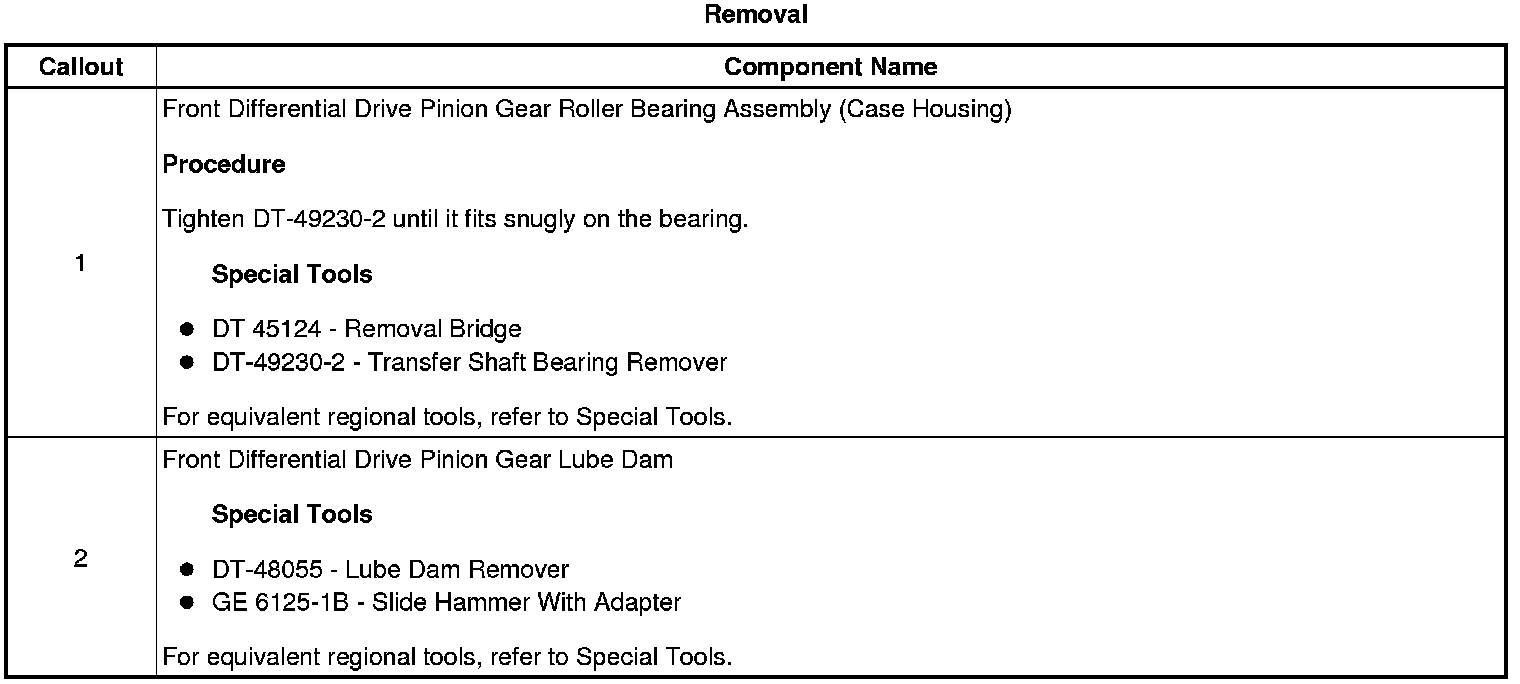

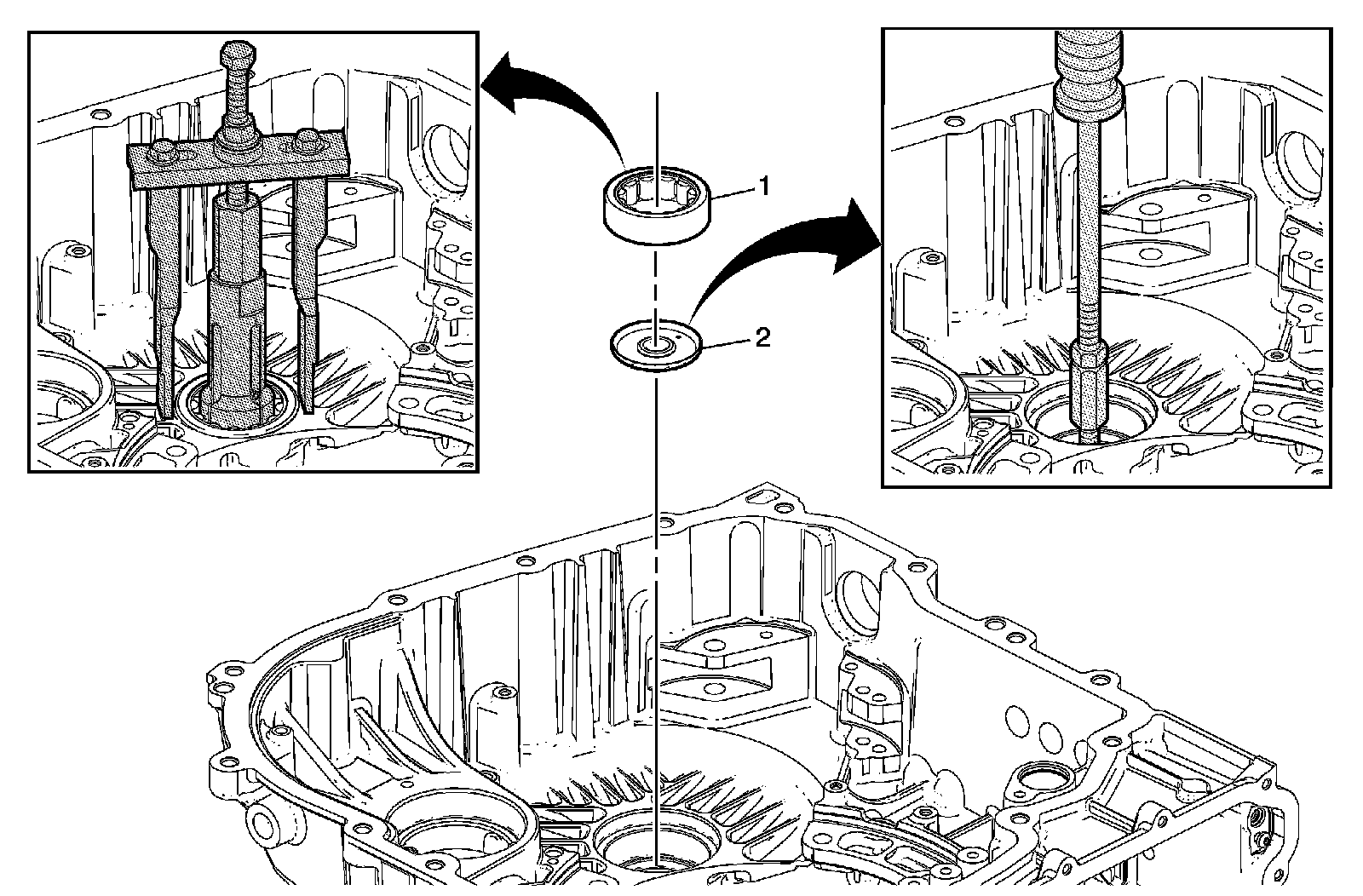

Removal

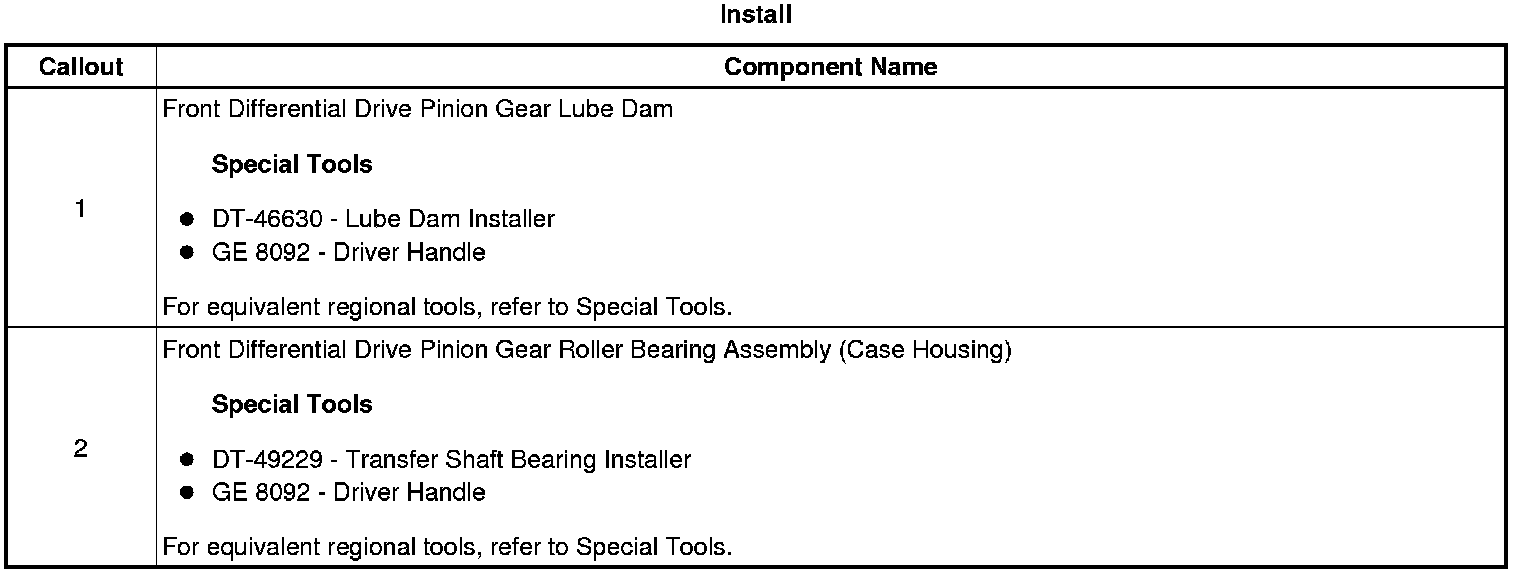

Install
