Home >> Chevrolet >> 2013 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 4ET50 - Automatic Transmission >> Front Differential Drive Pinion Gear Roller Bearing and Lubricant Dam Installation - Torque Dampener Side

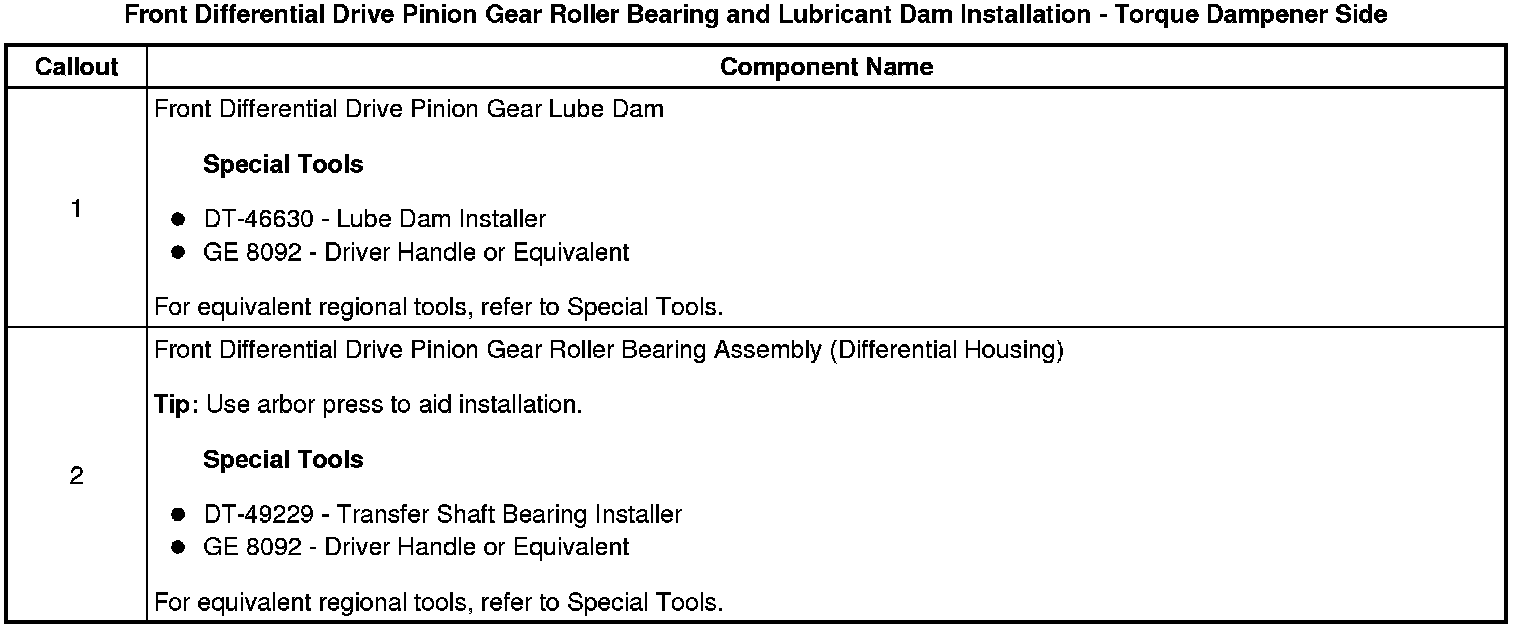

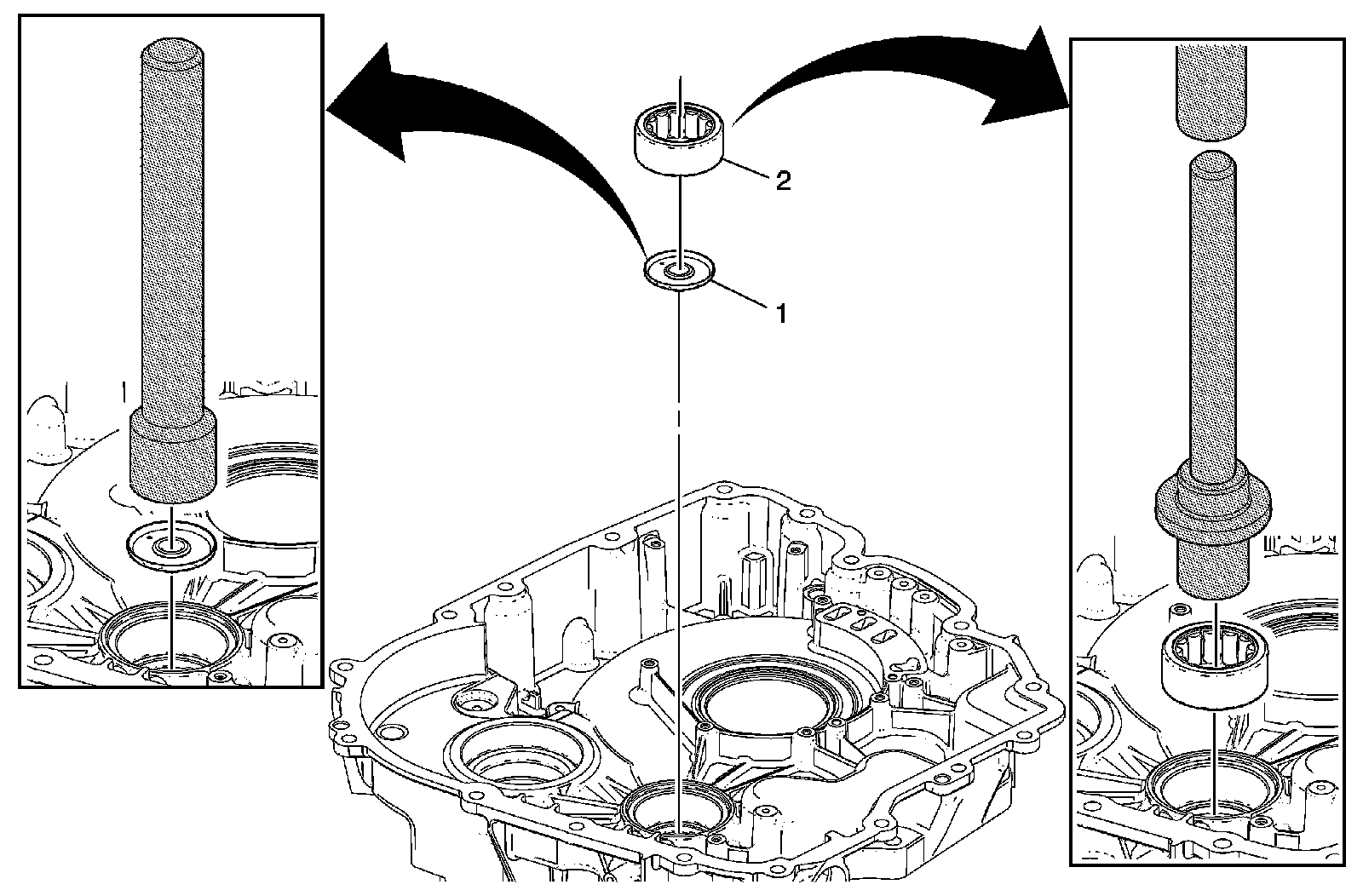

Front Differential Drive Pinion Gear Roller Bearing and Lubricant Dam Installation - Torque Dampener Side




Front Differential Drive Pinion Gear Roller Bearing and Lubricant Dam Installation - Torque Dampener Side
