Home >> Chevrolet >> 2013 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 4ET50 - Automatic Transmission >> Front Differential Drive Pinion Gear Bearing Thrust Washer and Front Differential Bearing Washer Measurement

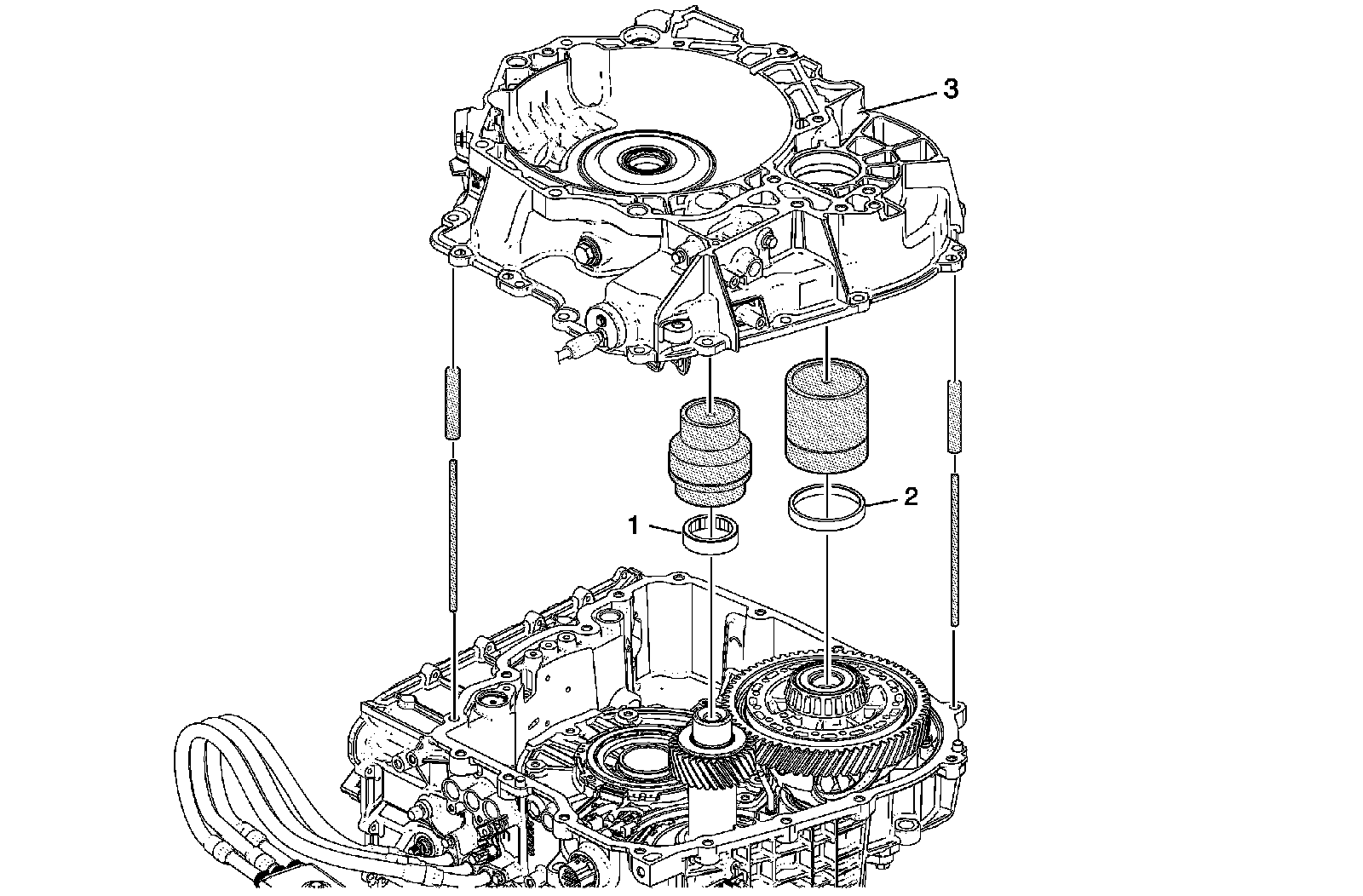

Front Differential Drive Pinion Gear Bearing Thrust Washer and Front Differential Bearing Washer Measurement




Front Differential Drive Pinion Gear Bearing Thrust Washer and Front Differential Bearing Washer Measurement

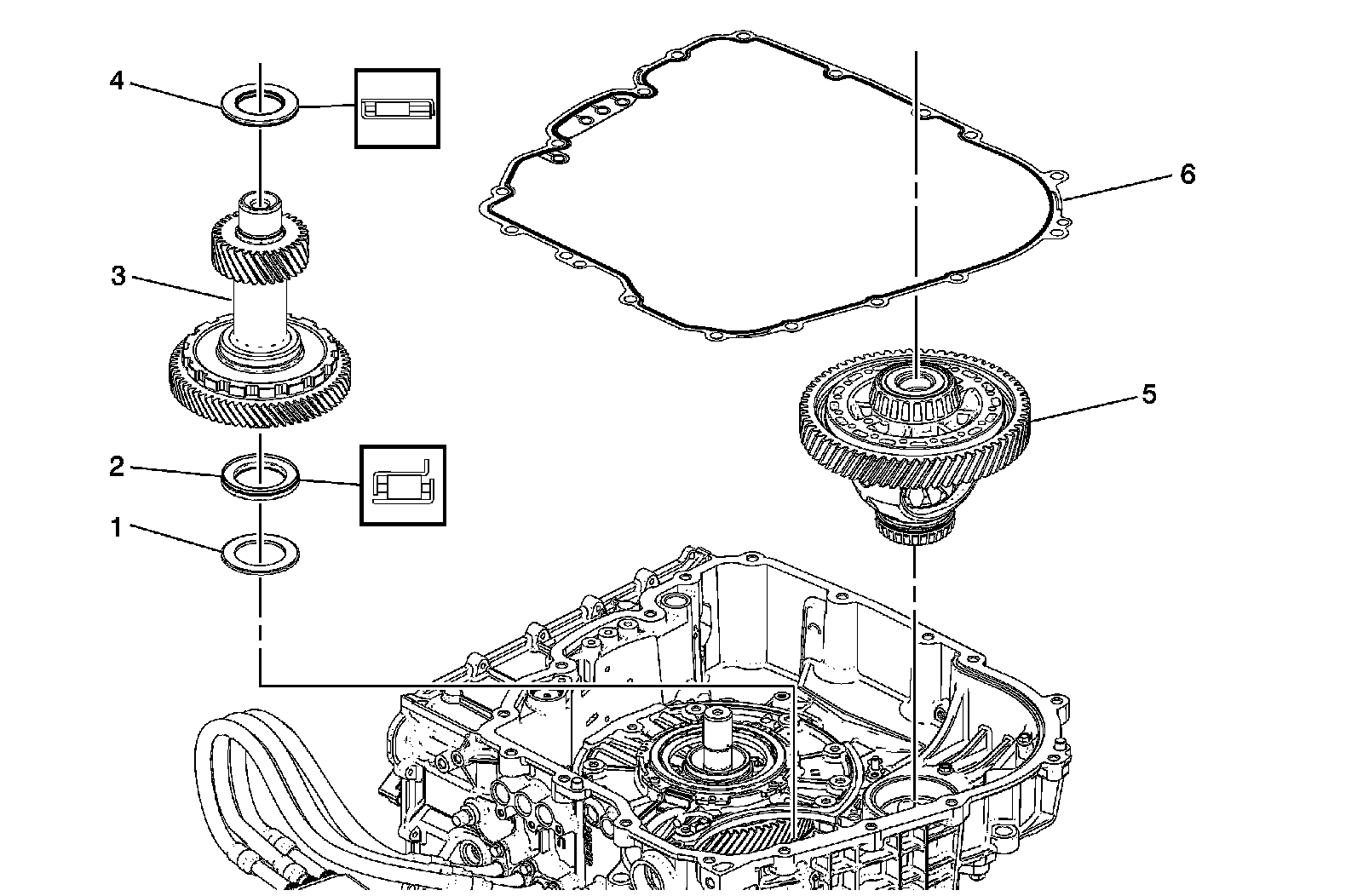

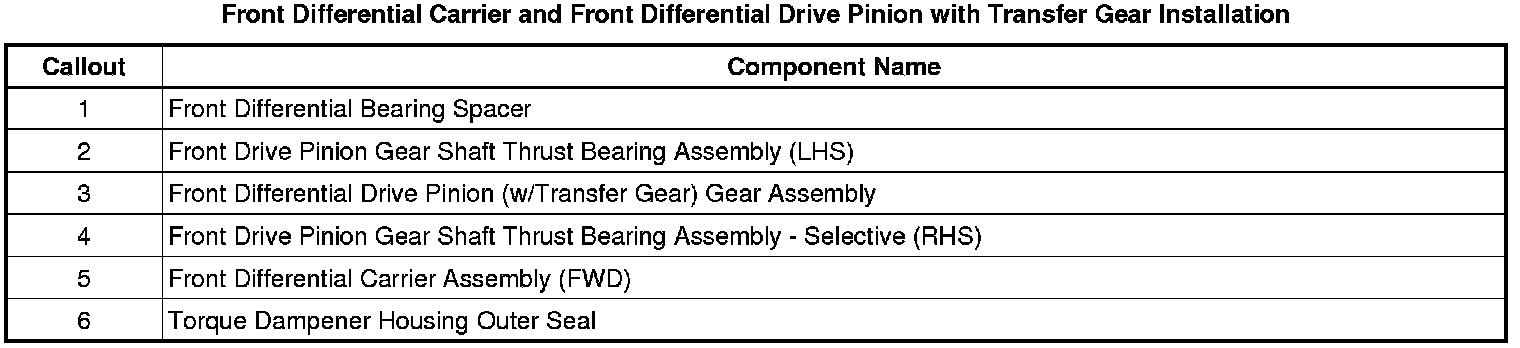

Front Differential Carrier and Front Differential Drive Pinion with Transfer Gear Installation

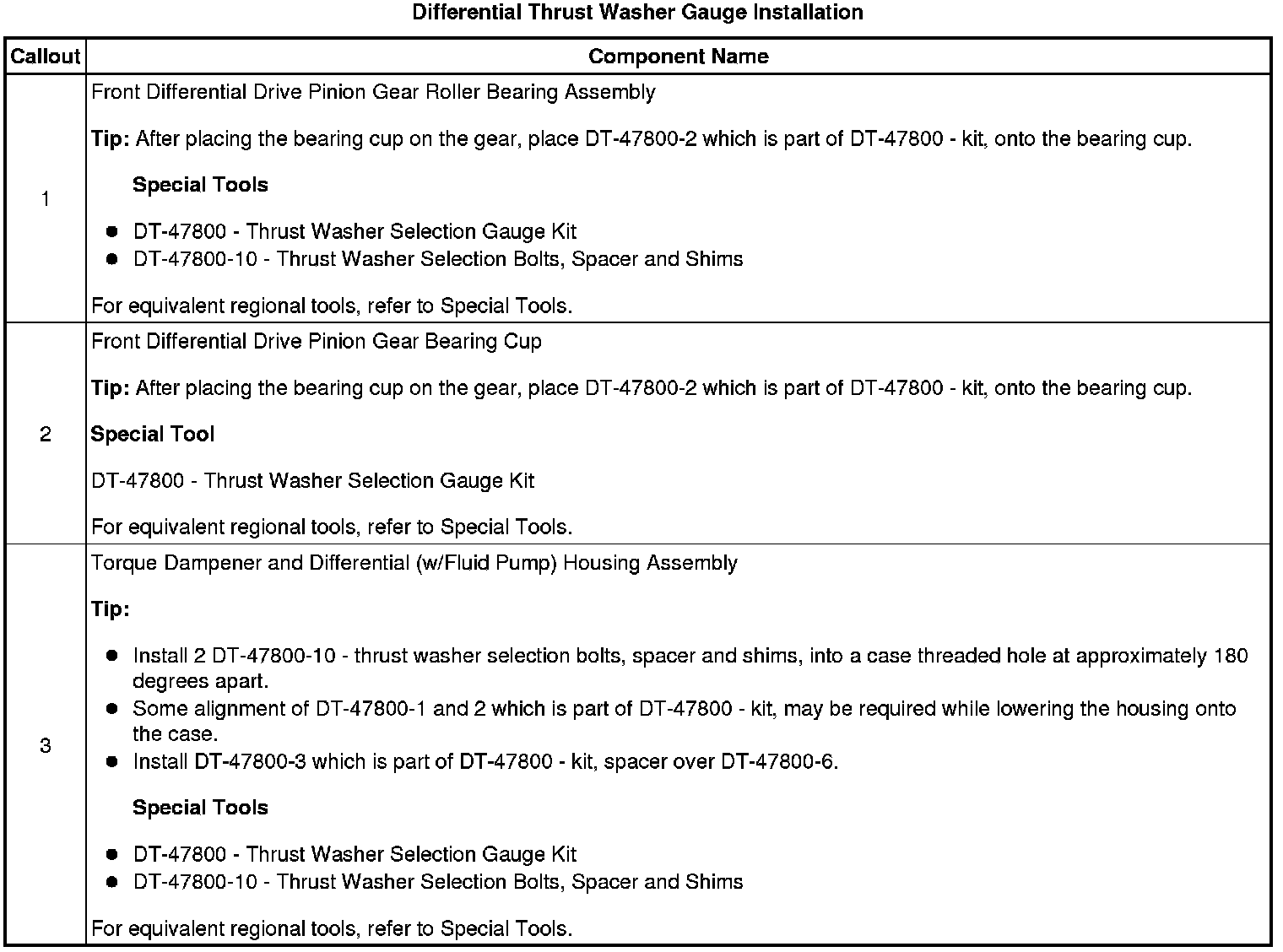

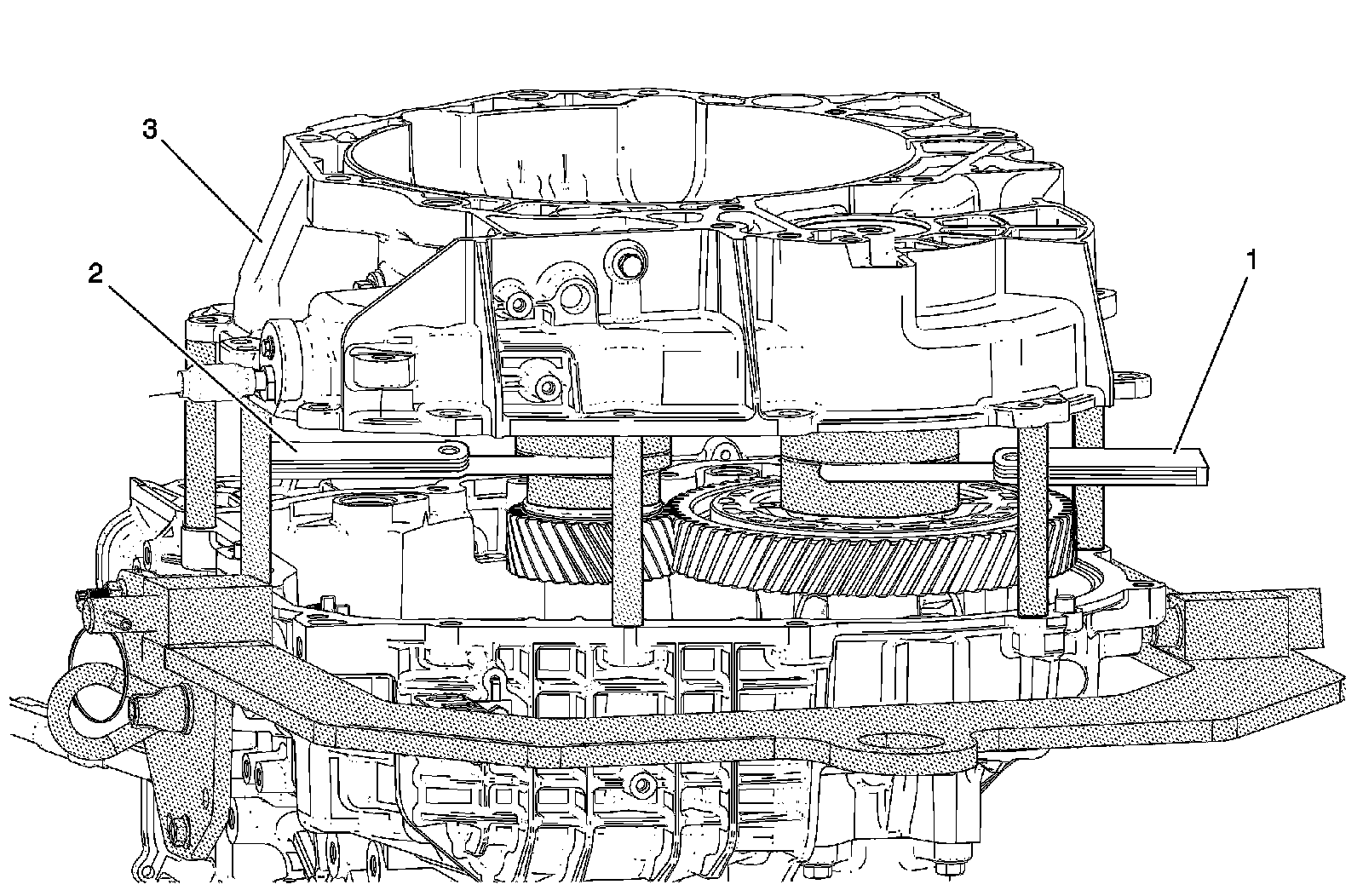

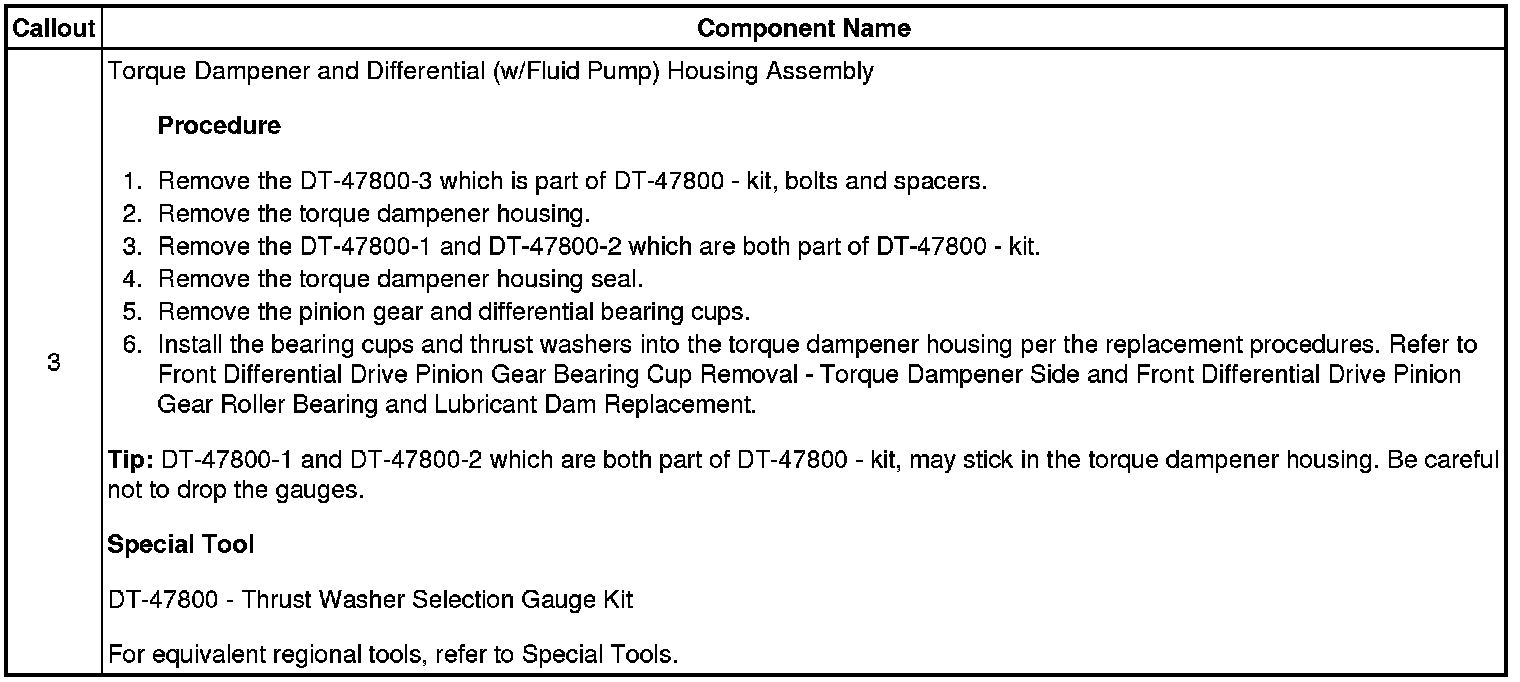

Differential Thrust Washer Gauge Installation

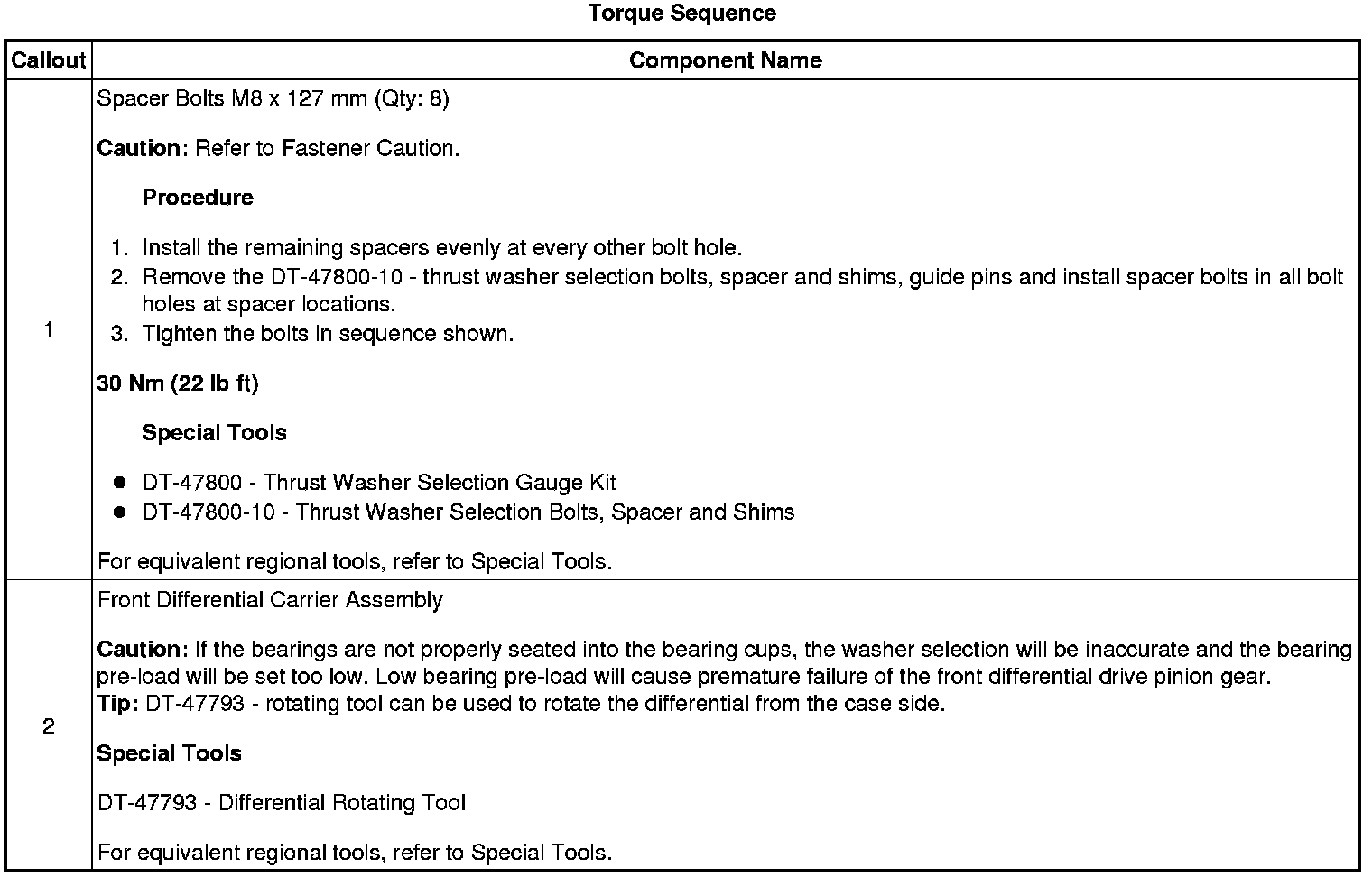

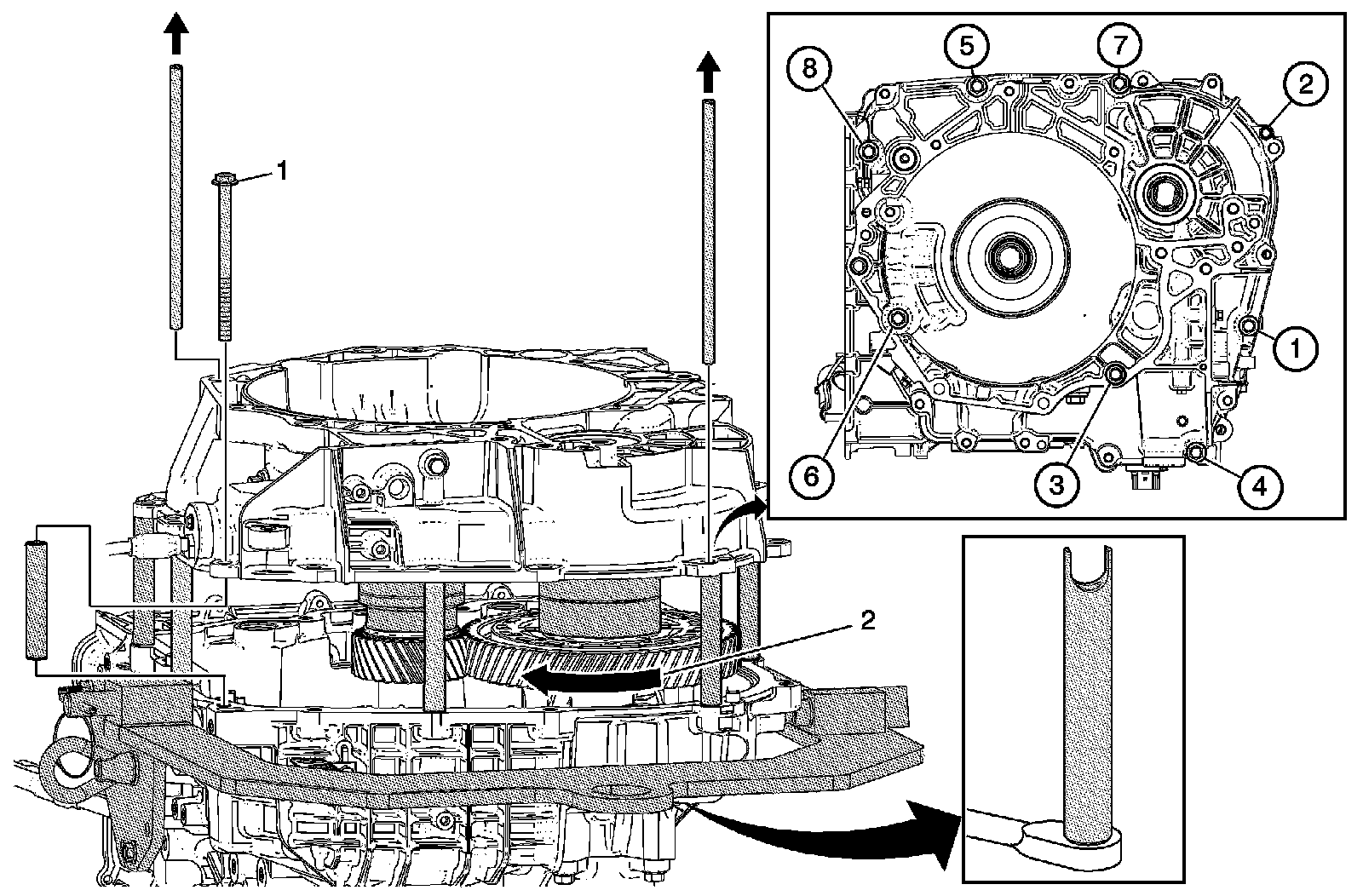

Torque Sequence

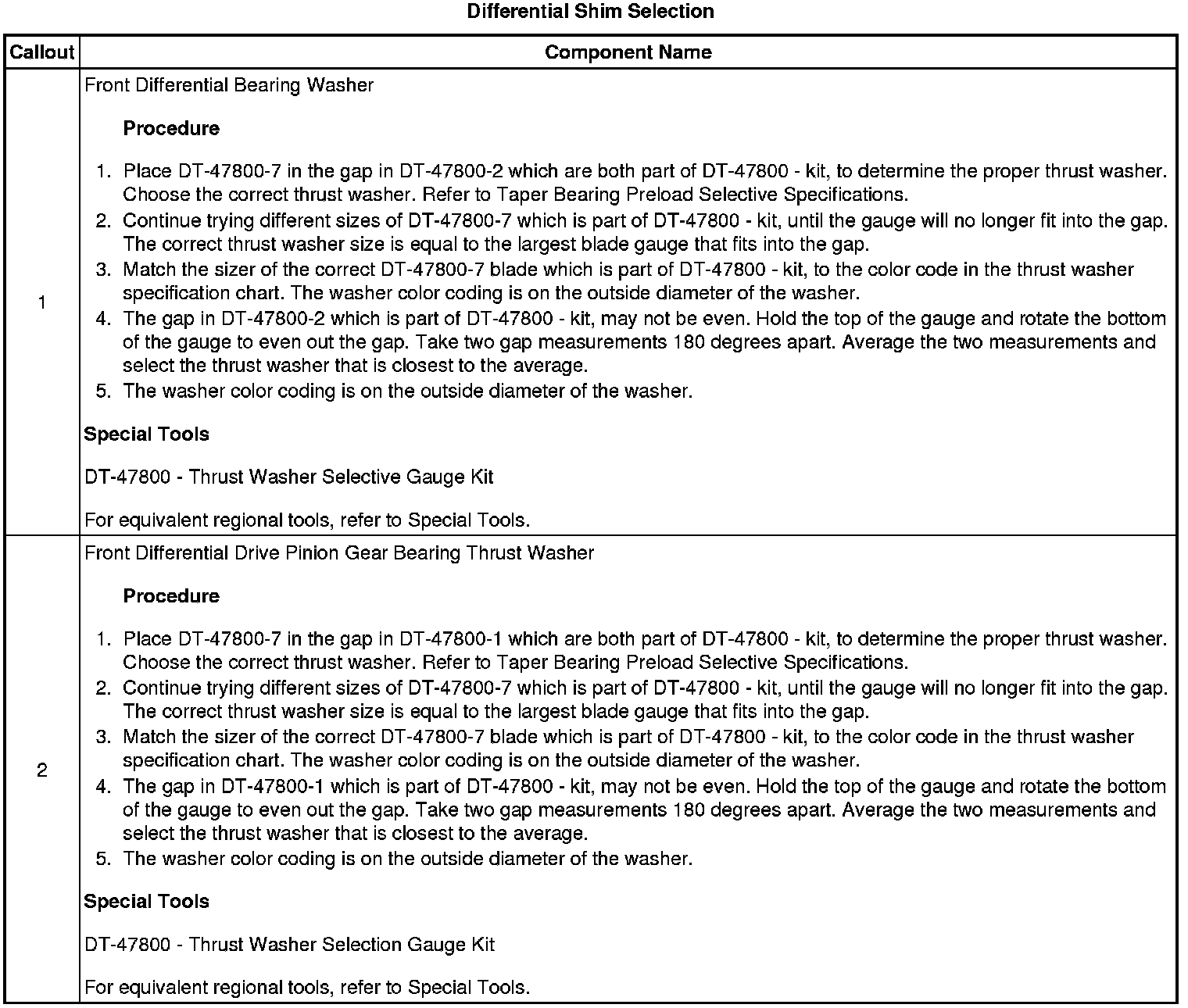

Differential Shim Selection
