Home >> Chevrolet >> 2013 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 4ET50 - Automatic Transmission >> Center Support Assembly Installation

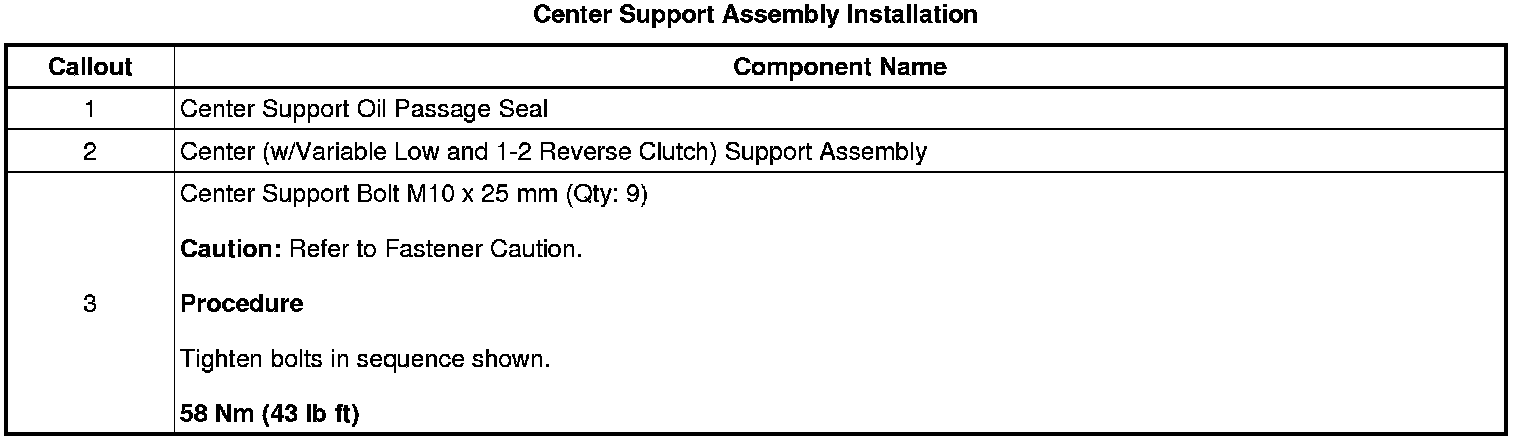

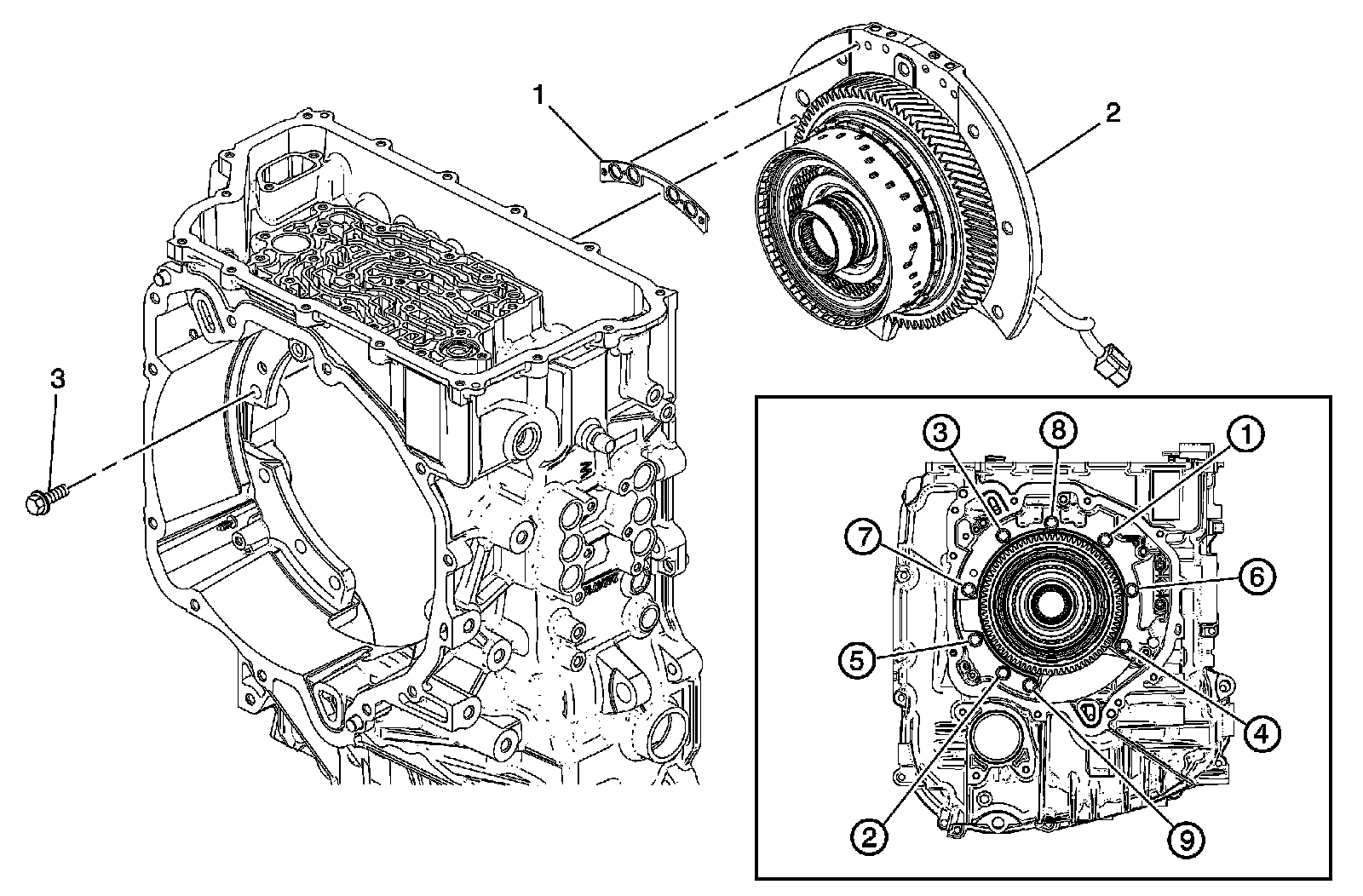

Center Support Assembly Installation




Center Support Assembly Installation
