1-3-Reverse Clutch Assemble




1-3-Reverse Clutch Assemble

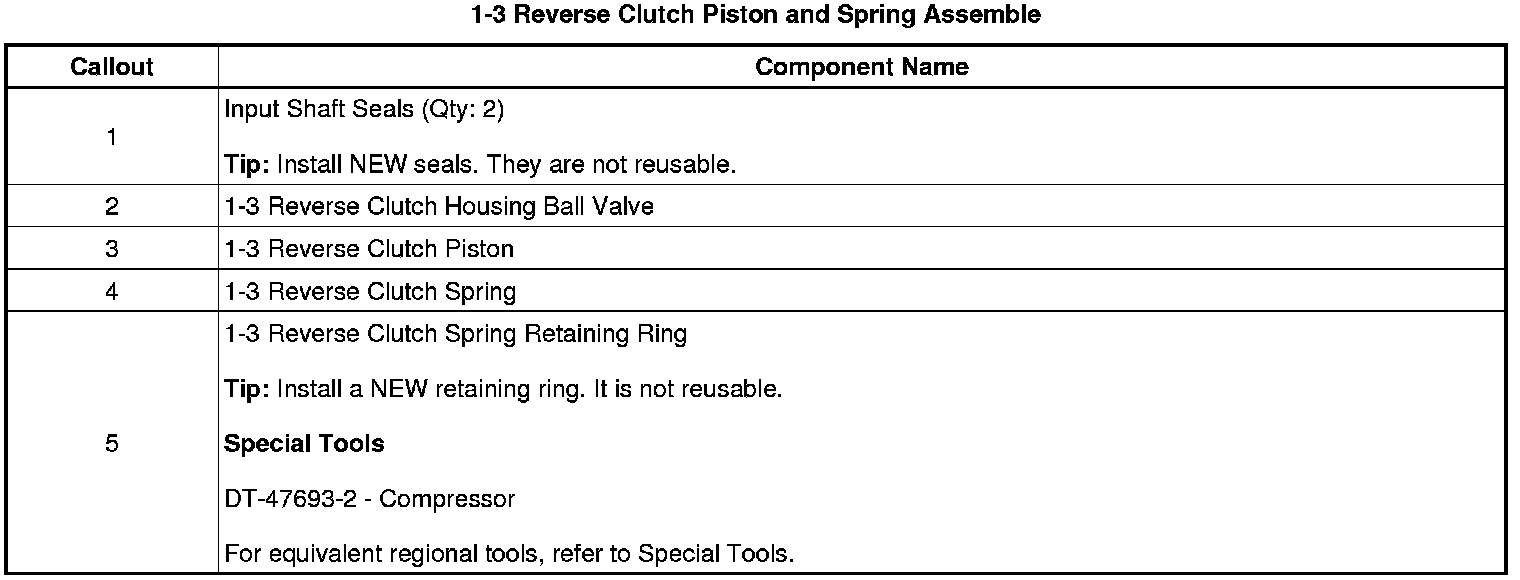

1-3 Reverse Clutch Piston and Spring Assemble

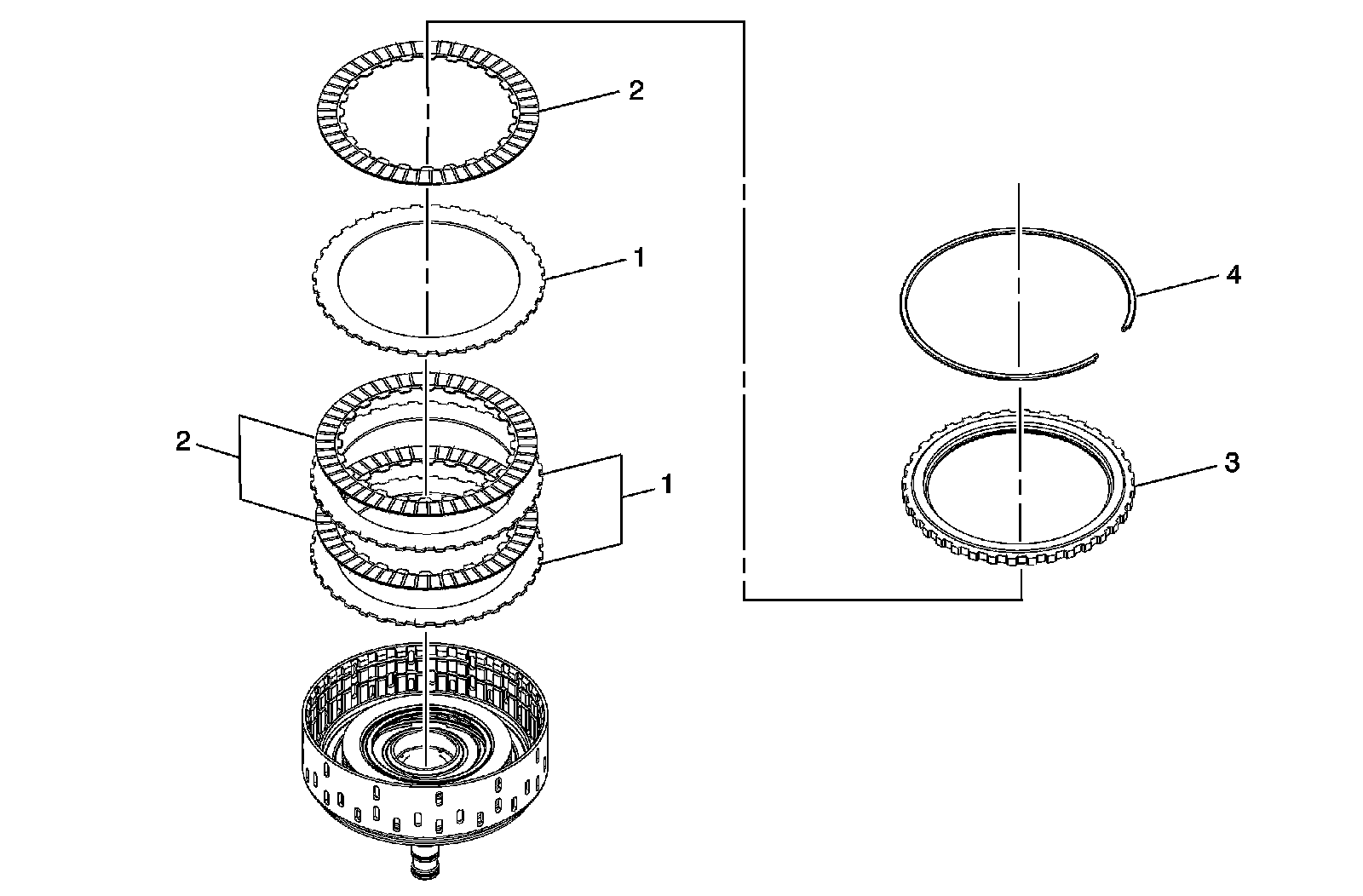

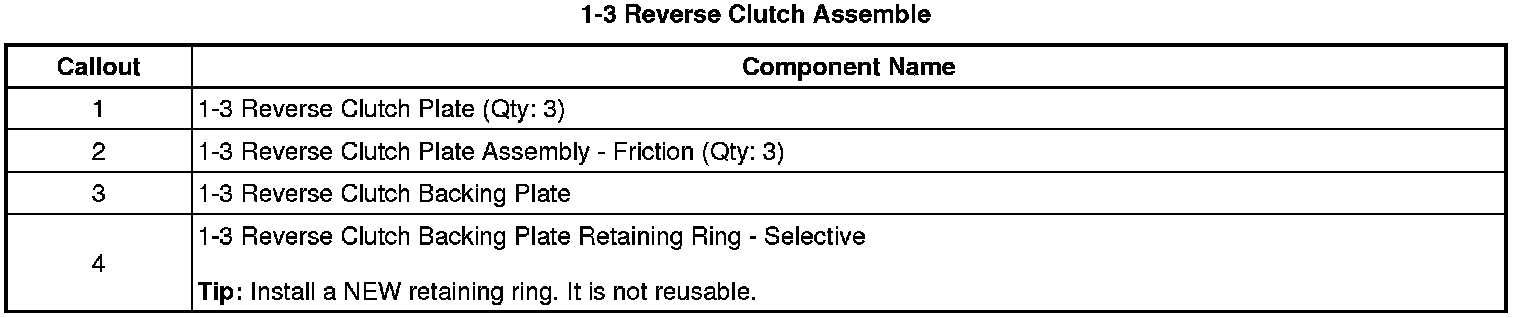

1-3 Reverse Clutch Assemble
