Component Location

Component Location

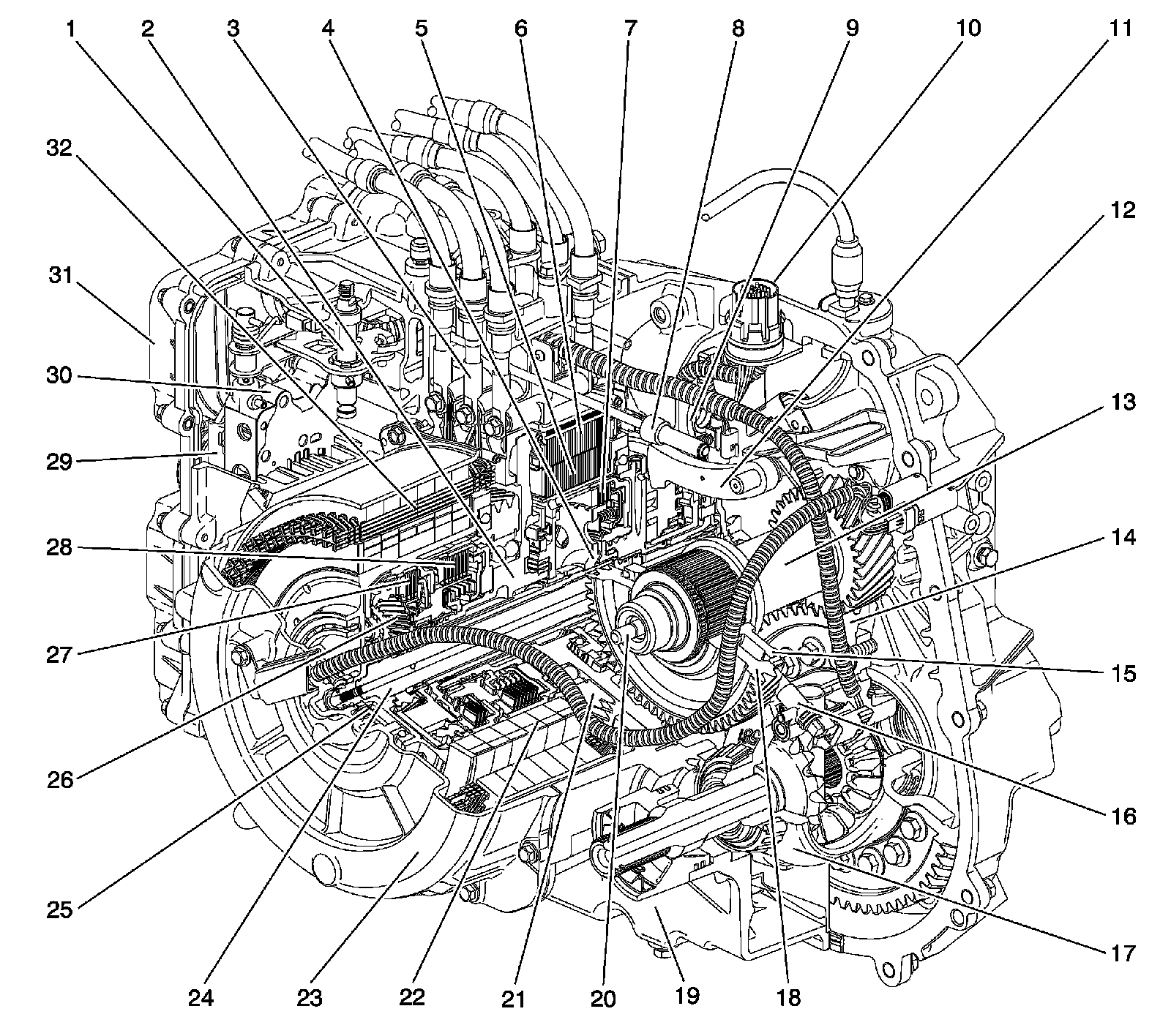

Component Locations





1 - Manual Shift Shaft

2 - Center Support

3 - Drive Motor/Generator Power Inverter Module Cable Assembly - 3 Phase - B

4 - Input Clutch Hub

5 - Generator/Drive Motor Rotor Assembly - Unit A

6 - Generator/Drive Motor Stator Assembly - Unit A

7 - 1-3 Reverse Clutch Assembly

8 - Park Pawl Actuator Assembly

9 - A/Trans Torque Dampener Assembly

10 - A/Trans Wiring Harness Assembly

11 - Park Pawl

12 - Torque Dampener and Differential (w/Fluid Pump) Housing Assembly

13 - Front Differential Drive Pinion Gear

14 - Front Differential Ring Gear

15 - Park Gear

16 - A/Trans Output Speed Sensor Assembly

17 - Front Differential Carrier Assembly

18 - Front Differential Transfer Driven Gear

19 - A/Trans Case Assembly

20 - Front Differential Transfer Drive Gear Fluid Passage Tube Assembly

21 - Front Differential Transfer Drive Gear

22 - Drive Motor/Generator Rotor Assembly - Unit B

23 - A/Trans Case Cover Assembly

24 - Output Sun Gear Shaft

25 - Drive Motor/Generator Position Sensor Stator Assembly

26 - Output Carrier Assembly - C2

27 - Variable Hi and 2-3-4 Clutch Assembly

28 - Variable Low and 1-2 Reverse Clutch Assembly

29 - Control Solenoid (w/Body and TCM) TEHCM Valve Assembly

30 - Control Valve Body

31 - Control Valve Body Cover Assembly

32 - Drive Motor/Generator Rotor Assembly - Unit B
