Bushing, Bearing, and Washer Locations

Bushing, Bearing, and Washer Locations

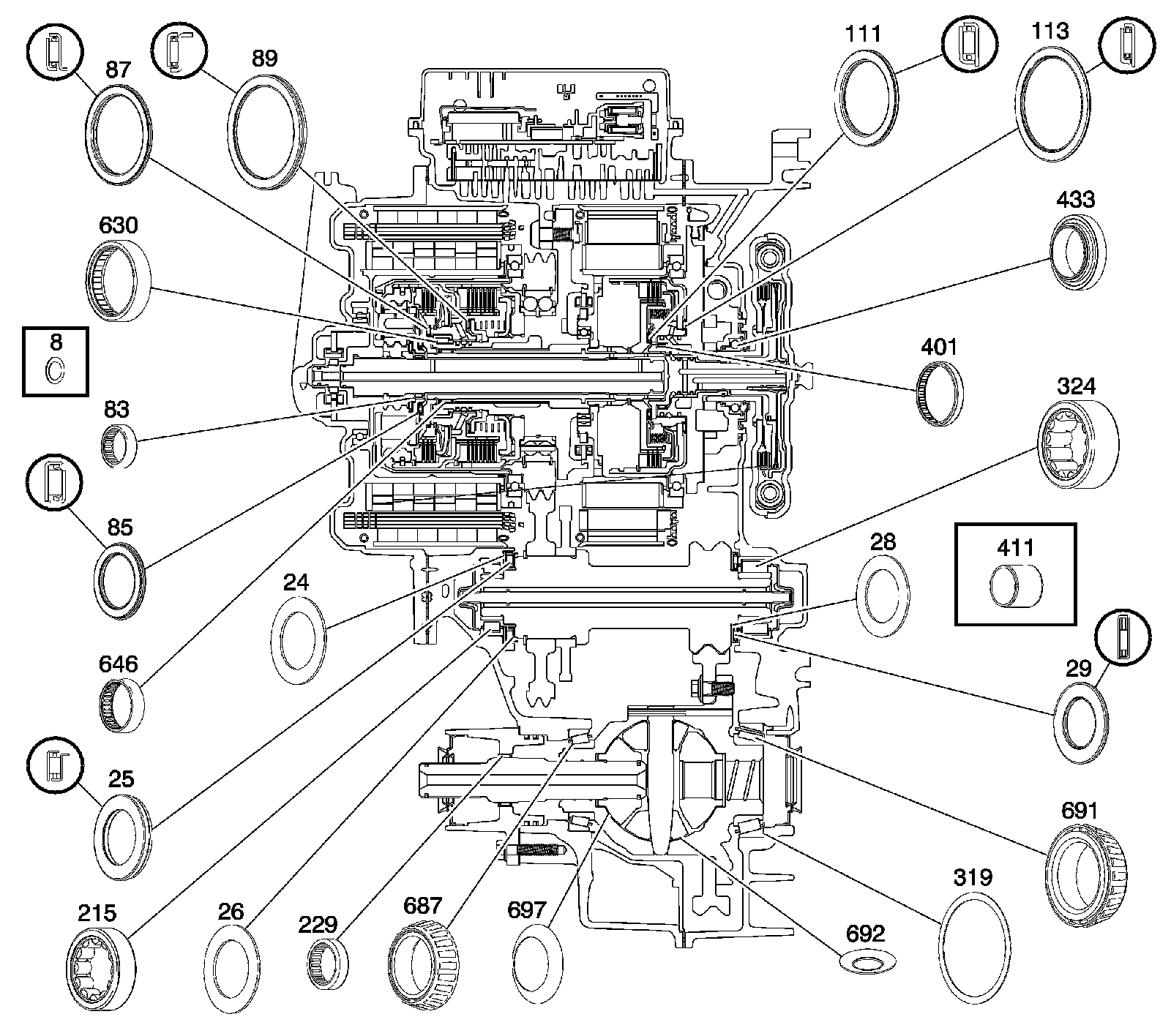

Location Of The Bushings, Bearings, and Washers





8 - Transmission Fluid Cooler Outlet Washer

24 - Front Differential Bearing Spacer

25 - Front Drive Pinion Gear Shaft Thrust Bearing Assembly (LHS)

26 - Front Differential Drive Pinion Gear Bearing Thrust Washer -Selective (LHS)

28 - Front Differential Drive Pinion Gear Bearing Thrust Washer -Selective (RHS)

29 - Front Drive Pinion Gear Shaft Thrust Bearing Assembly Selective (RHS)

83 - Output Carrier Roller Bearing Assembly

85 - Output Carrier Thrust Bearing Assembly

87 - Variable Hi and 2-3-4 Clutch Hub Thrust Bearing Assembly

89 - Variable Hi and 2-3-4 Clutch Housing Thrust Bearing Assembly

111 - Input Carrier Thrust Bearing Assembly

113 - 1-3 Reverse Clutch Thrust Bearing Assembly

215 - Front Differential Drive Pinion Gear Roller Bearing Assembly

229 - Front Wheel Drive Shaft Bearing Assembly

319 - Front Differential Bearing Washer - Selective

324 - Front Differential Drive Pinion Gear Roller Bearing Assembly

401 - Input Shaft Bearing Assembly

411 - A/Trans Fluid Pump Drive Shaft Bushing

433 - A/Trans Torque Dampener Bearing Assembly

630 - Center Support Roller Bearing Assembly

646 - Input Sun Gear Shaft Roller Bearing Assembly

687 - Front Differential Carrier Bearing Assembly (LHS)

691 - Front Differential Carrier Bearing Assembly (RHS)

692 - Differential Pinion Gear Thrust Washer

697 - Differential Side Gear Thrust Washer
