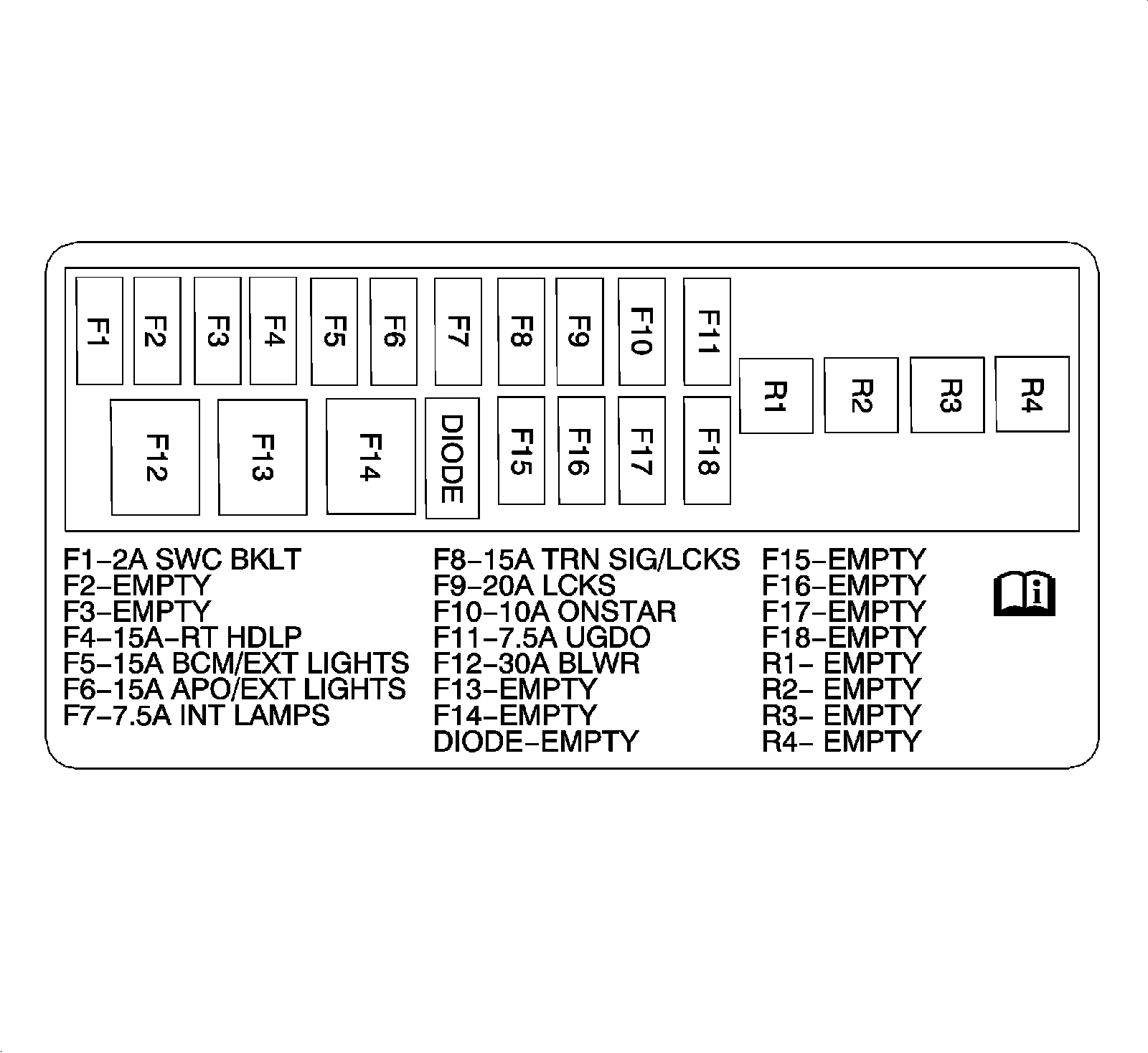

X51R Fuse Block - Instrument Panel Right Label




Electrical Center Identification Views

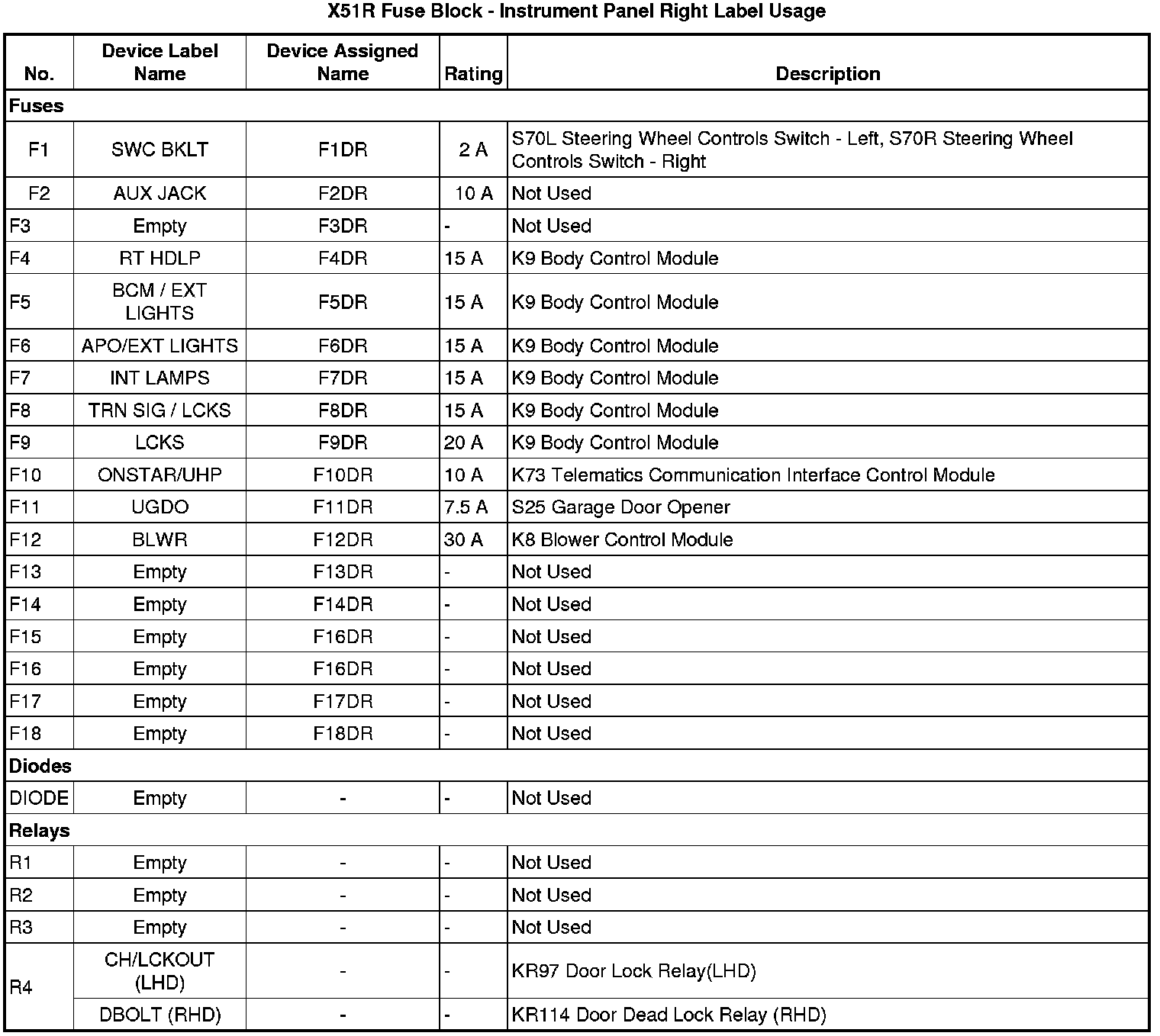

X51R Fuse Block - Instrument Panel Right Label
