Steering Angle Sensor: Locations




Instrument Panel/Center Console Component Views

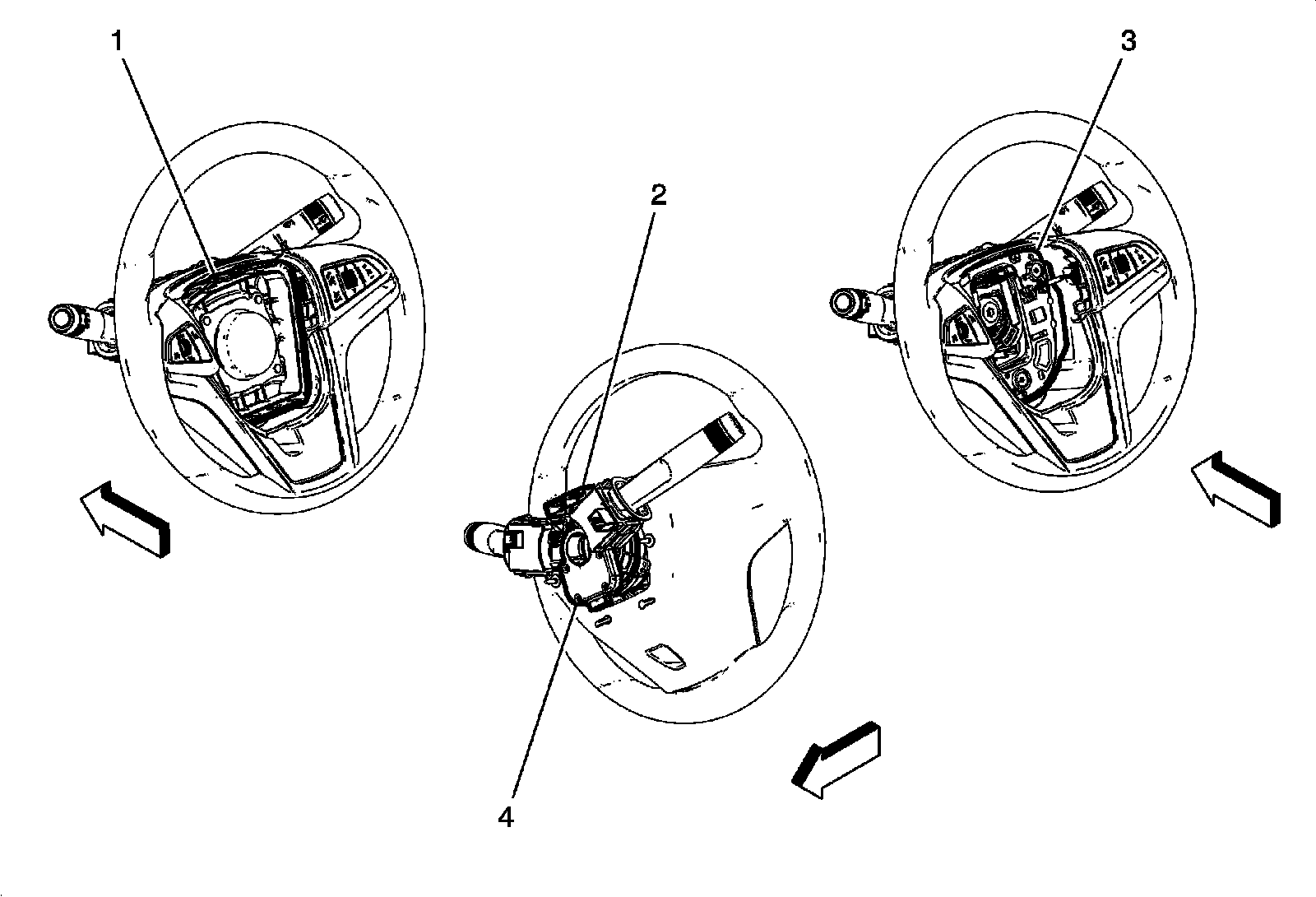

Steering Column Components





1 - F107 Steering Wheel Air Bag

2 - X85 Steering Wheel Air Bag Coil

3 - S33 Horn Switch

4 - B99 Steering Wheel Angle Sensor
