Refrigerant Temperature Sensor: Diagrams

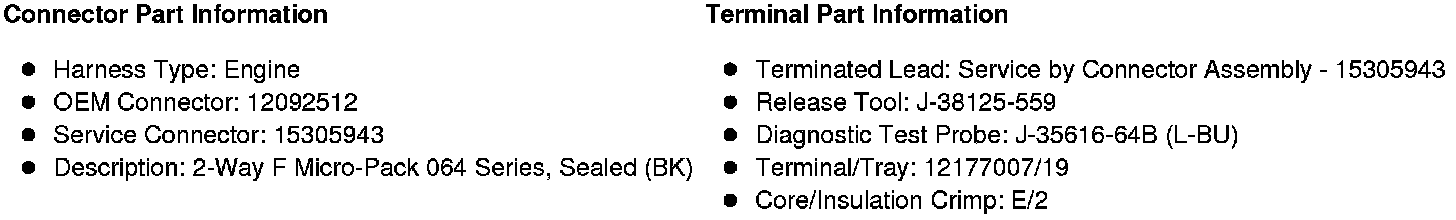

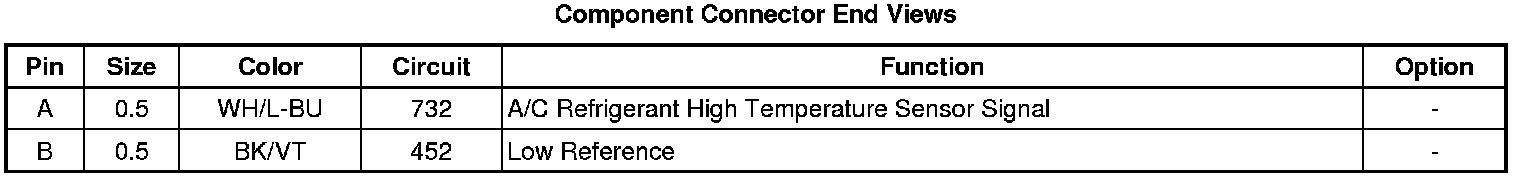

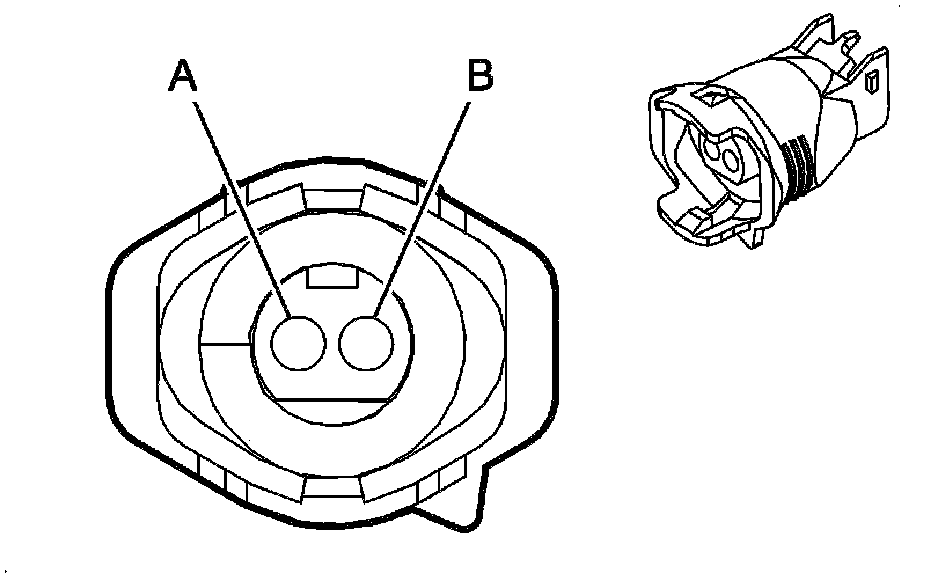

Component Connector End Views

B222 A/C Refrigerant Low Side Temperature Sensor
