Brake Pedal Position Sensor Replacement

Brake Pedal Position Sensor Replacement

Removal Procedure

1. Disconnect the brake pedal position sensor electrical connector.

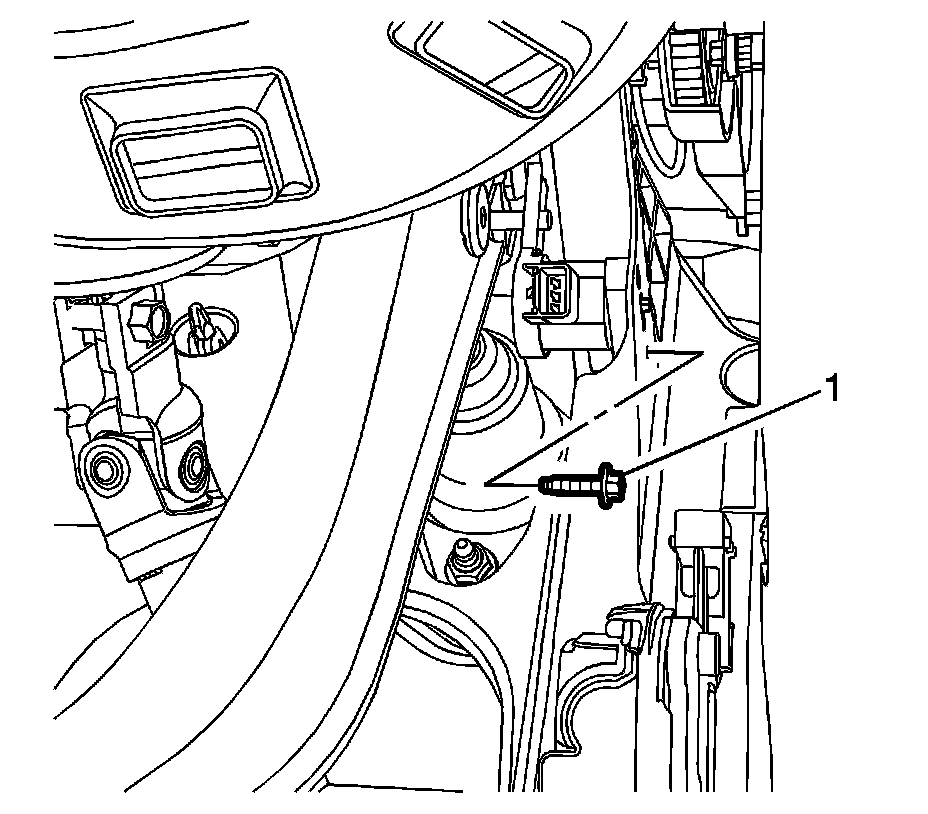

2. Remove the brake pedal position sensor bolt (1).

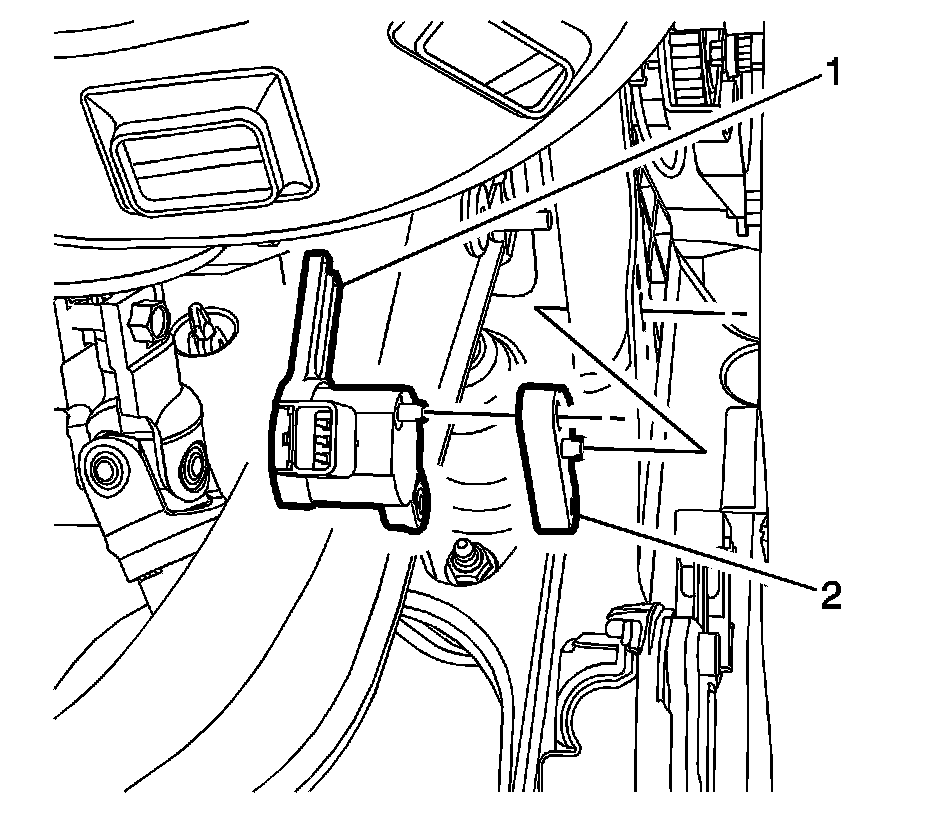

3. Remove the brake pedal position sensor (1) and spacer (2).

Installation Procedure





1. Align the locating pin on the brake pedal position sensor (1) to the hole on the spacer (2).

2. Align the locating pin on the brake pedal position sensor to the hole on the brake pedal assembly bracket.

3. Ensure the brake pedal position sensor fork is properly located on the brake pedal pin.





Caution:
Refer to Fastener Caution Fastener Caution.

4. Install the brake pedal position sensor bolt (1) and tighten to 9 Nm (80 lb in).

5. Connect the brake pedal position sensor electrical connector.

6. Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration Testing and Inspection.
