Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement

Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement

Removal Procedure

1. Remove the electronic brake control module (EBCM). Refer to Electronic Brake Control Module Replacement Electronic Brake Control Module Replacement.

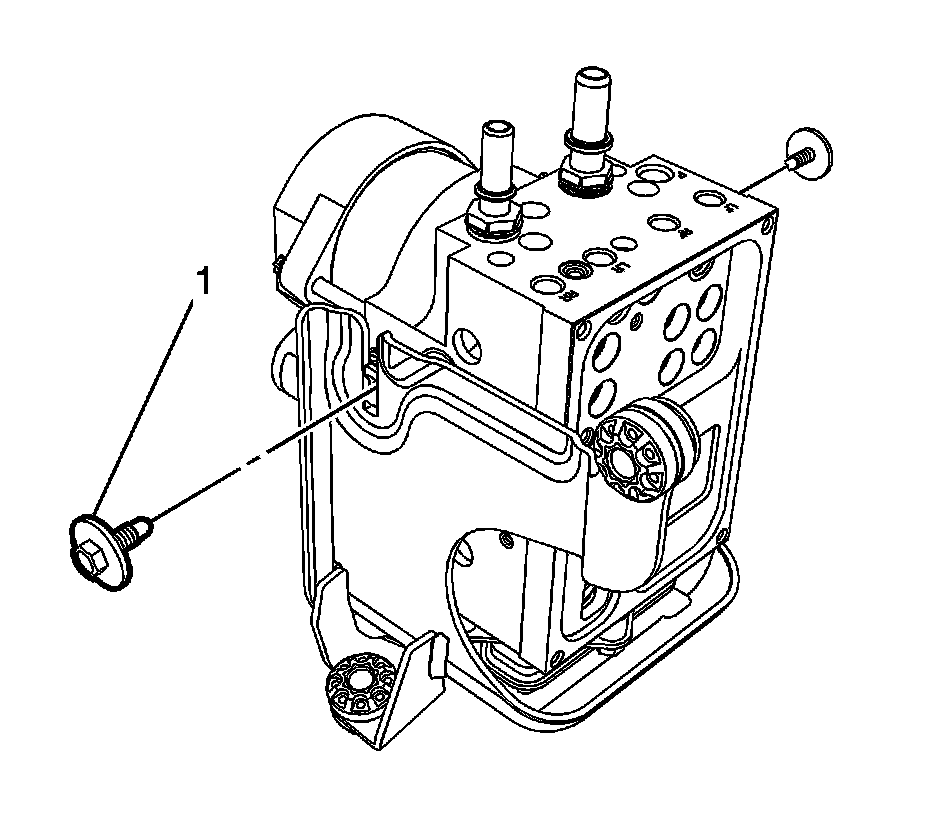

2. Remove the 2 brake pressure modulator valve (BPMV) bolts (1).

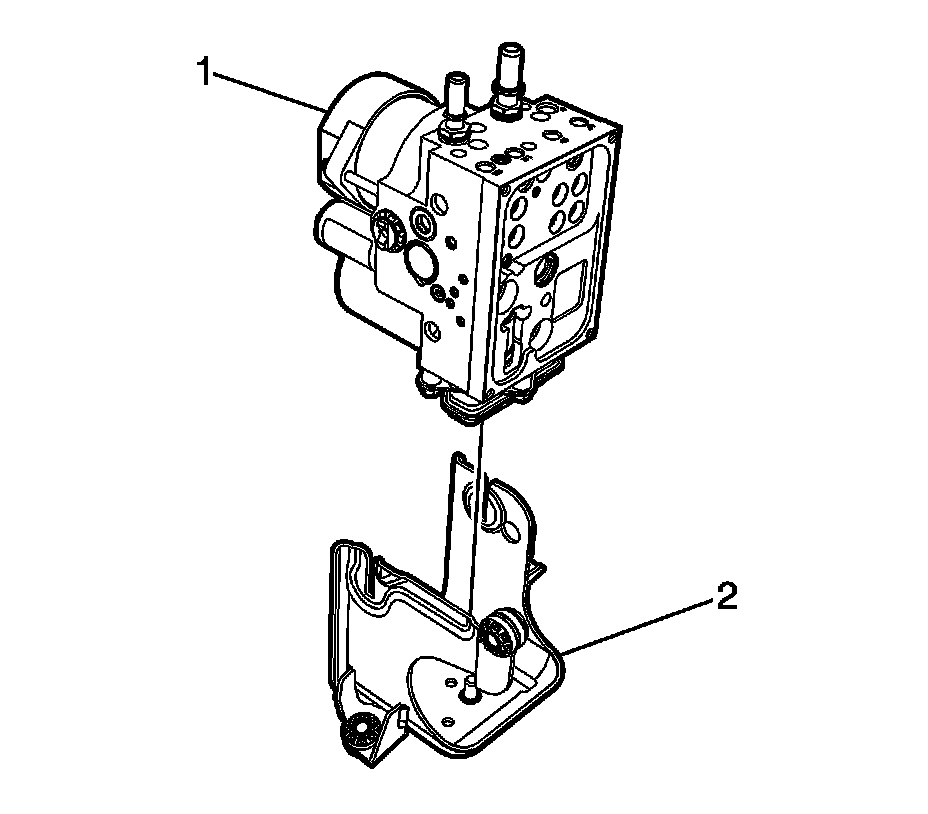

3. Remove the BPMV (1) from the bracket (2).

Installation Procedure





1. Install the BPMV assembly (1) to the bracket (2).





Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the 2 BPMV bolts (1) and tighten to 8 Nm (71 lb in).

3. Install the EBCM. Refer to Electronic Brake Control Module Replacement Electronic Brake Control Module Replacement.
