Transmission Internal Mode Switch X2

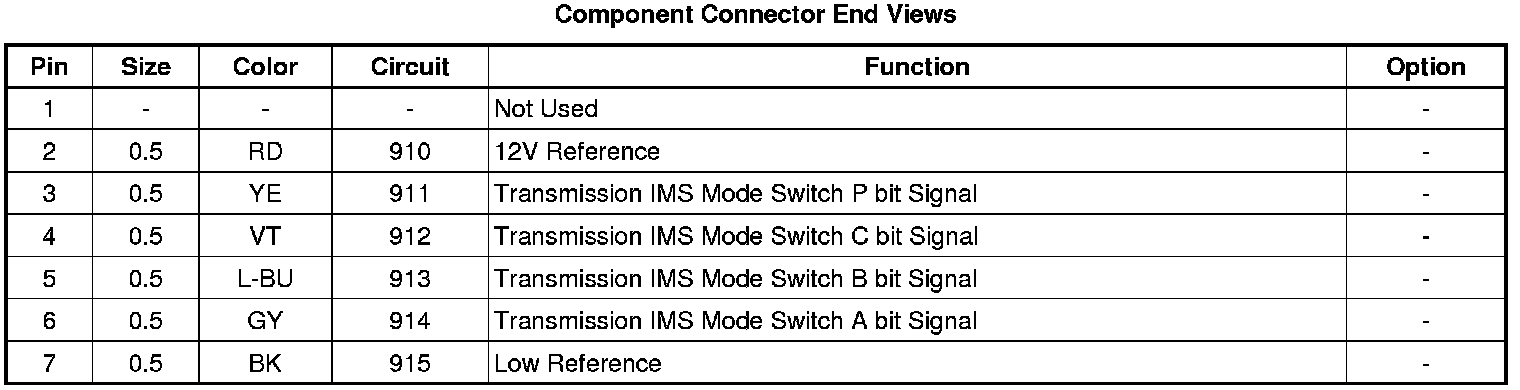

Component Connector End Views

B15 Transmission Internal Mode Switch X2
