Leak Detection Pump: Diagrams

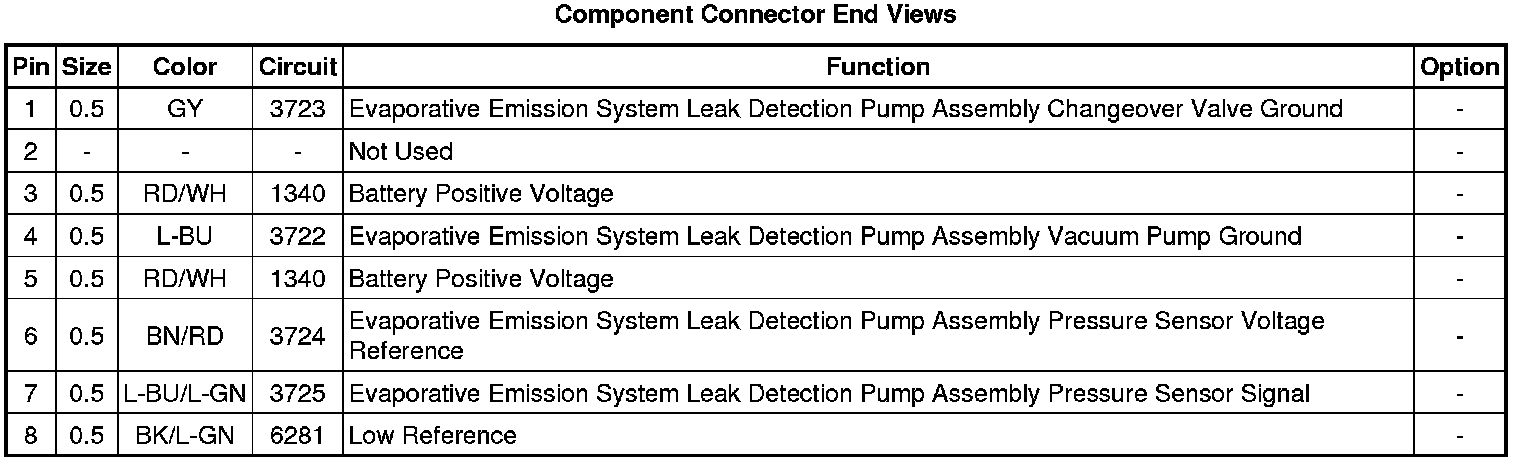

Component Connector End Views

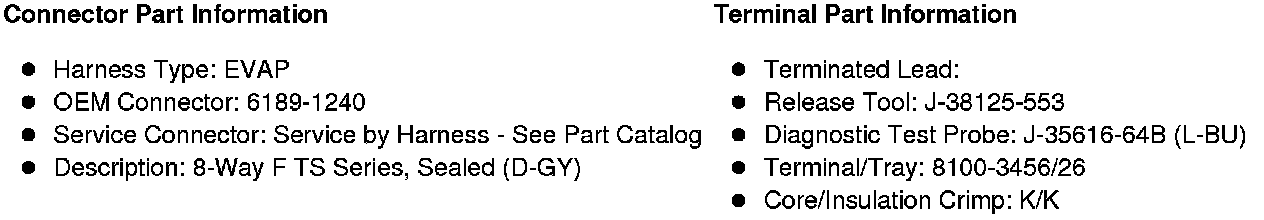

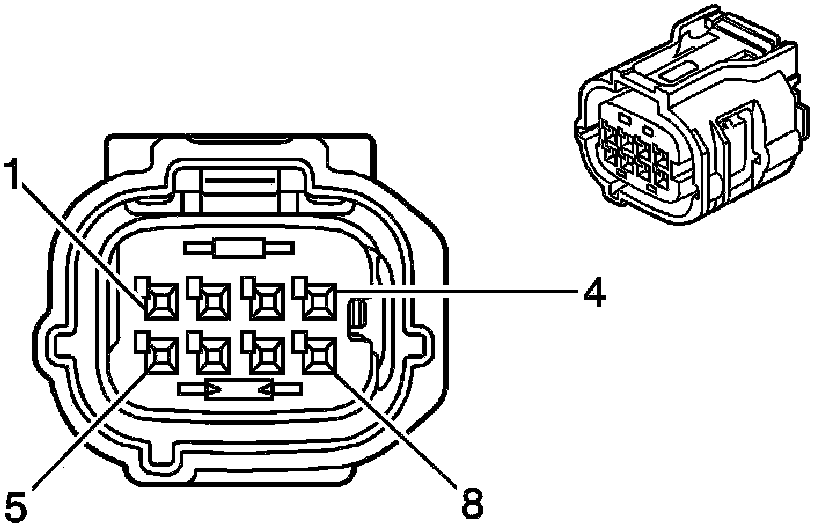

Q63 Evaporative Emission System Leak Detection Pump Assembly
