Turn Signal Lamp - Right Front Lower

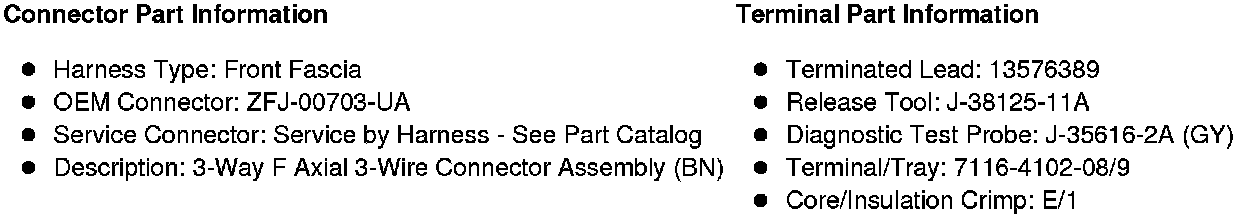

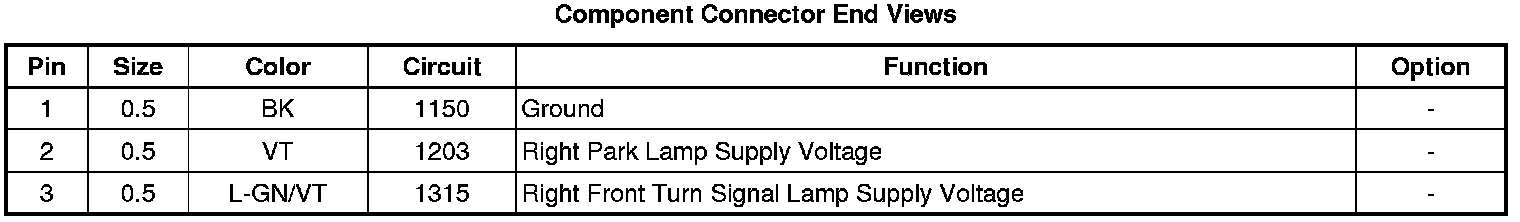

Component Connector End Views

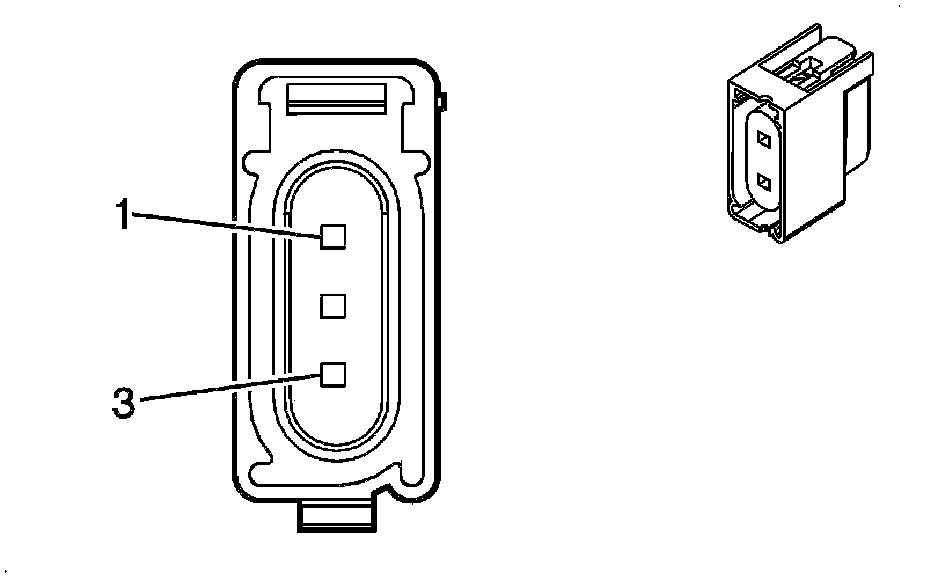

E4V Turn Signal Lamp - Right Front Lower
