Turn Signal Lamp - Left Front Lower

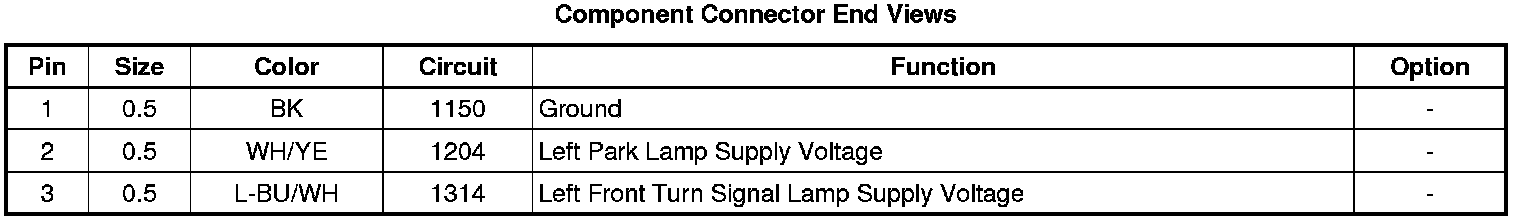

Component Connector End Views

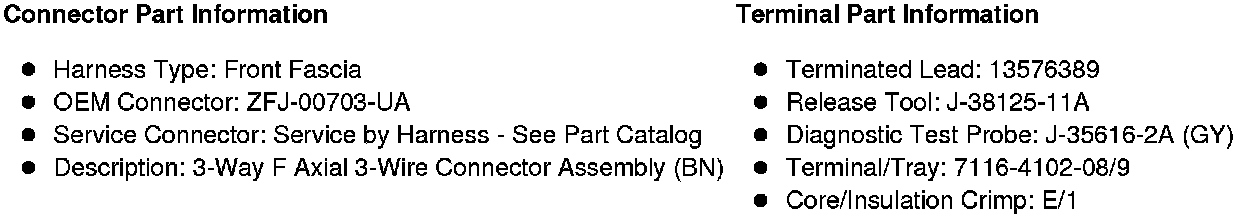

E4U Turn Signal Lamp - Left Front Lower
