Backup Lamps Malfunction

Backup Lamps Malfunction

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

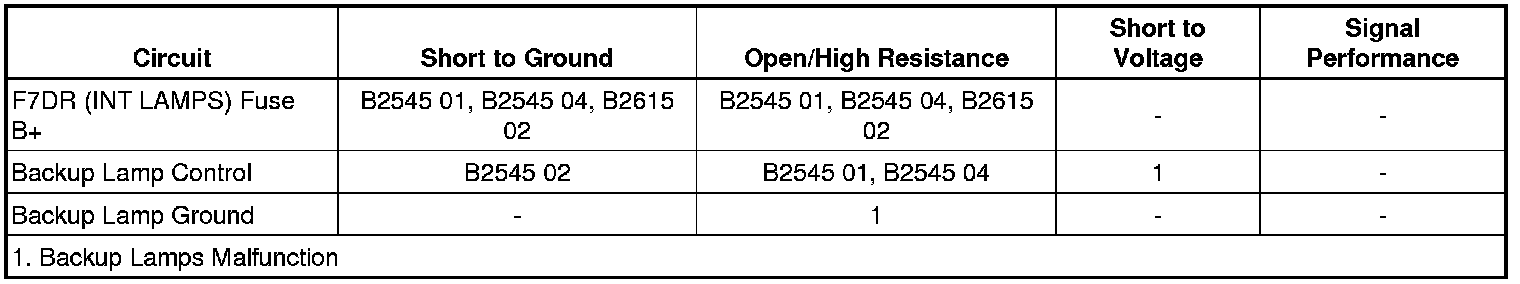

Diagnostic Fault Information






Circuit/System Description

With the vehicle ON and the transmission in the reverse position, the transmission control module (TCM) sends a serial data message to the body control module (BCM). The message indicates that the gear selector is in the reverse position. The BCM applies battery voltage to the backup lamp control circuit illuminating the backup lamp. Once the driver moves the gear selector out of the reverse position, a message is sent by the TCM via serial data requesting the BCM to remove battery voltage from the backup lamp control circuit. The vehicle must be ON for the backup lamps to operate.

Reference Information

Schematic Reference

* Exterior Lights Schematics Exterior Lights Schematics

* Body Control System Schematics [1][2]Body Control Systems

Connector End View Reference

Component Connector End Views Hybrid/EV Battery Pack X1

Description and Operation

Exterior Lighting Systems Description and Operation Exterior Lighting Systems

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Programming and Relearning for scan tool information

Circuit/System Testing

1. Vehicle OFF, disconnect the X5 harness connector at the K9 body control module, vehicle in Service Mode.

2. Verify a test lamp illuminates between the B+ circuit terminal 4 and ground.

• If the test lamp does not illuminate and the circuit fuse is good

1. Vehicle OFF.

2. Test for less than 2 ohms in the B+ circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, verify the fuse is not open and there is voltage at the fuse.

• If the test lamp does not illuminate and the circuit fuse is open

1. Vehicle OFF.

2. Test for infinite resistance between the B+ circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit.

• If infinite resistance, replace the K9 body control module.

• If the test lamp illuminates

3. Vehicle OFF, connect the X5 harness connector at the K9 body control module.

4. Vehicle OFF, exterior lamps OFF, disconnect the harness connector at the E5 backup lamp.

5. Test for less than 5 ohms between the ground circuit terminal and ground.

• If 5 ohms or greater

1. Vehicle OFF.

2. Test for less than 2 ohms in the ground circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, repair the open/high resistance in the ground connection.

• If less than 5 ohms

6. Connect a test lamp between the control circuit terminal and ground, vehicle in Service Mode.

7. Verify the test lamp turns ON and OFF when commanding the Backup Lamps ON and OFF with a scan tool.

• If the test lamp is always OFF

1. Vehicle OFF, disconnect the X7 harness connector at the K9 body control module.

2. Test for infinite resistance between the control circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit.

• If infinite resistance

3. Test for less than 2 ohms in the control circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, replace the K9 body control module.

• If the test lamp is always ON

1. Vehicle OFF, disconnect the X7 harness connector at the K9 body control module, vehicle in Service Mode.

2. Test for less than 1 V between the control circuit terminal and ground.

• If 1 V or greater, repair the short to voltage on the circuit.

• If less than 1 V, replace the K9 body control module.

• If the test lamp turns ON and OFF

8. Test or replace the E5 backup lamp.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the repair.

* Backup Lamp Bulb Replacement Service and Repair

* Control Module References Programming and Relearning for BCM replacement, programming, and setup
