FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2013
>>
Volt L4-1.4L Elect
>>
Repair and Diagnosis
>>
Hybrid Drive Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>

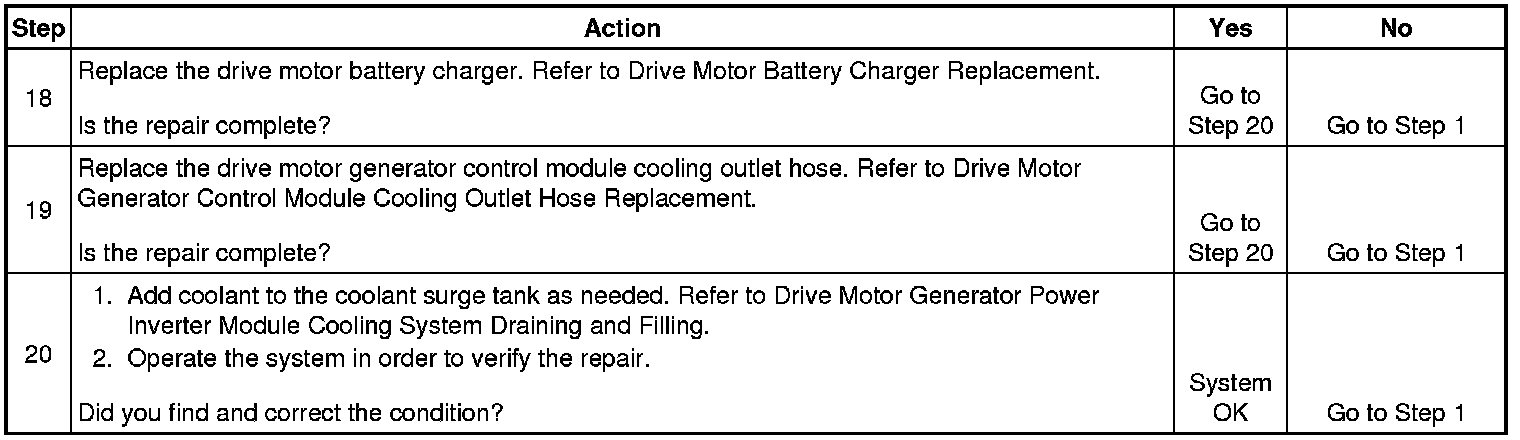

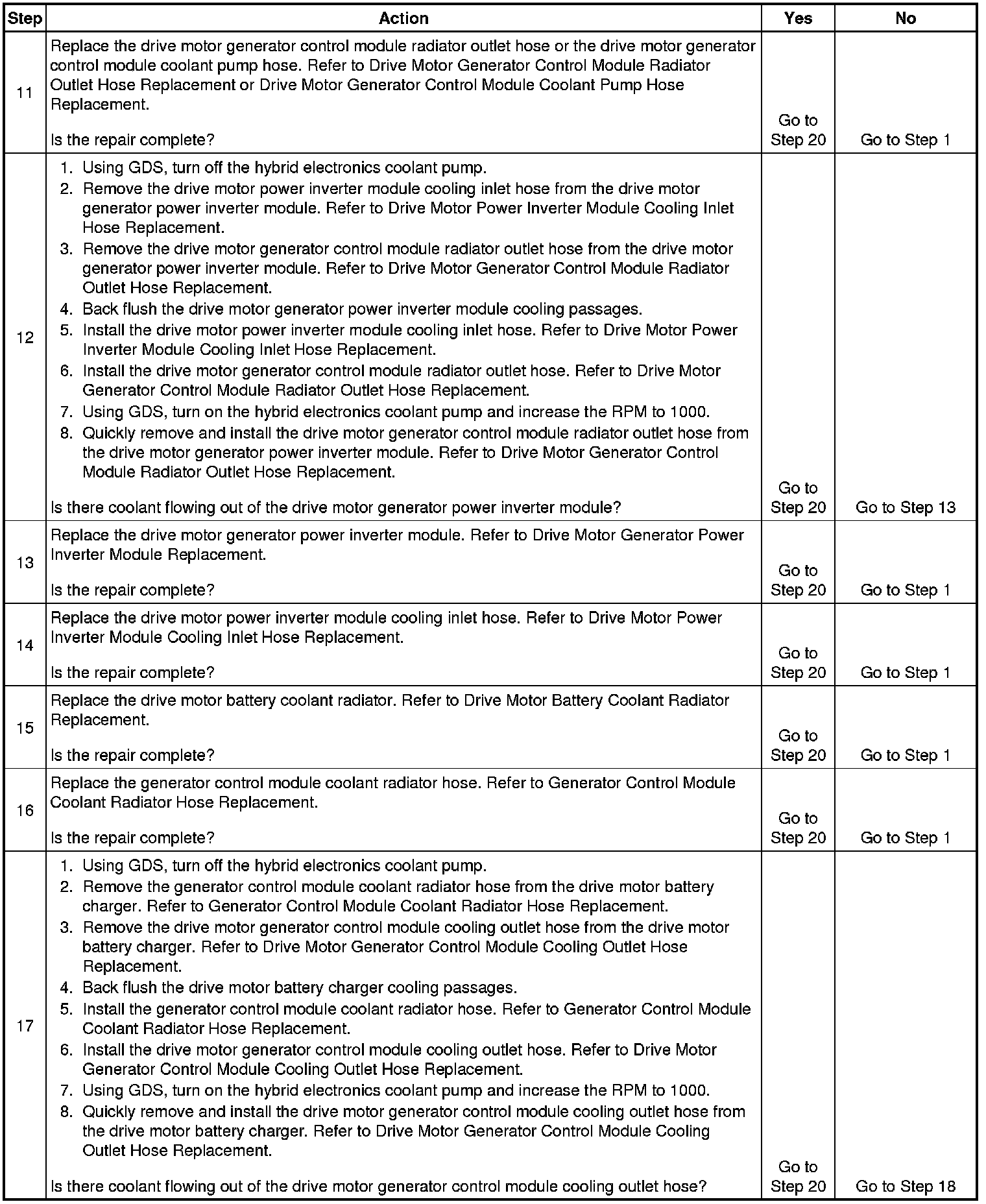

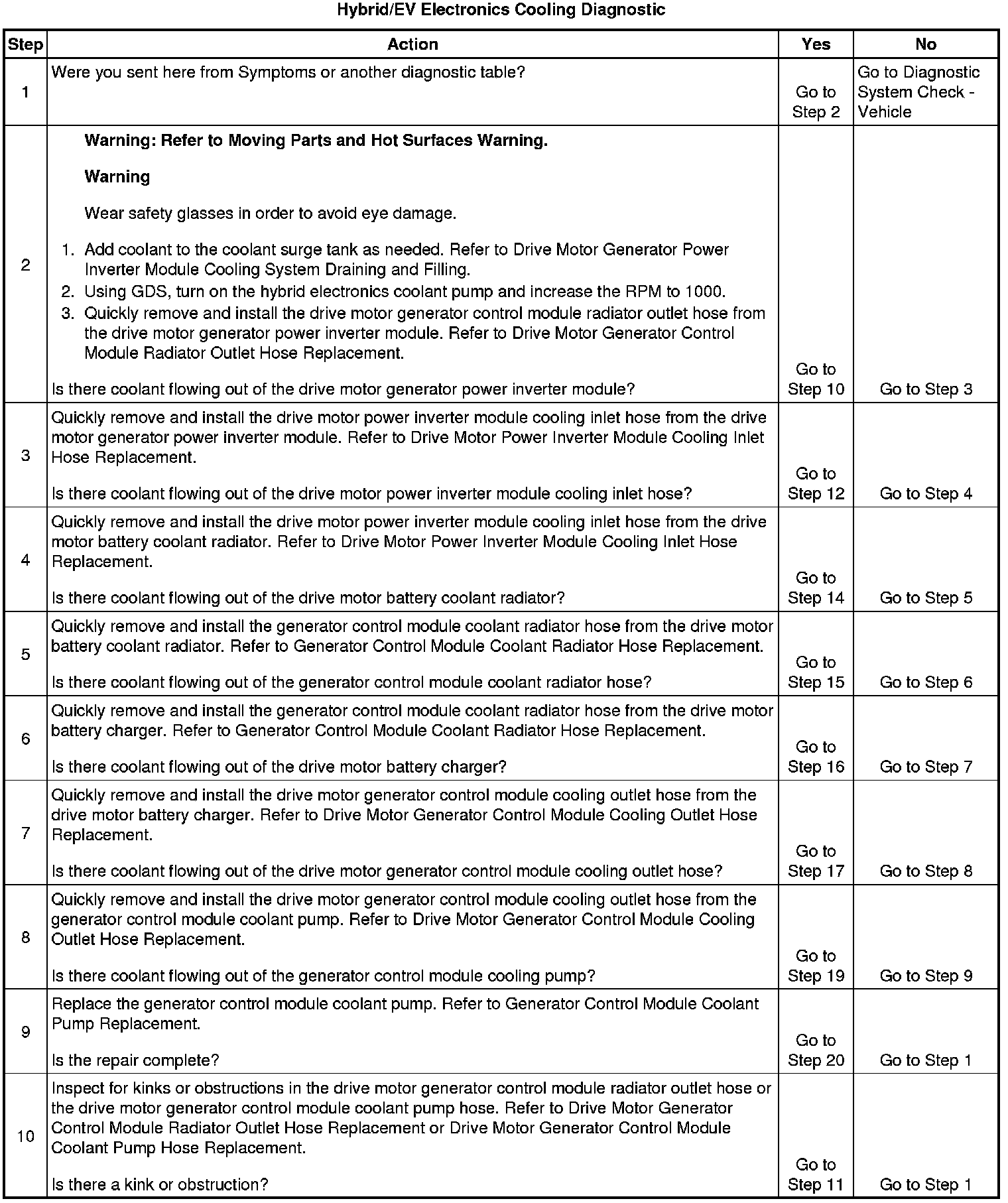

Hybrid/EV Electronics Cooling Diagnostic
Hybrid/EV Electronics Cooling Diagnostic
Hybrid/EV Electronics Cooling Diagnostic
