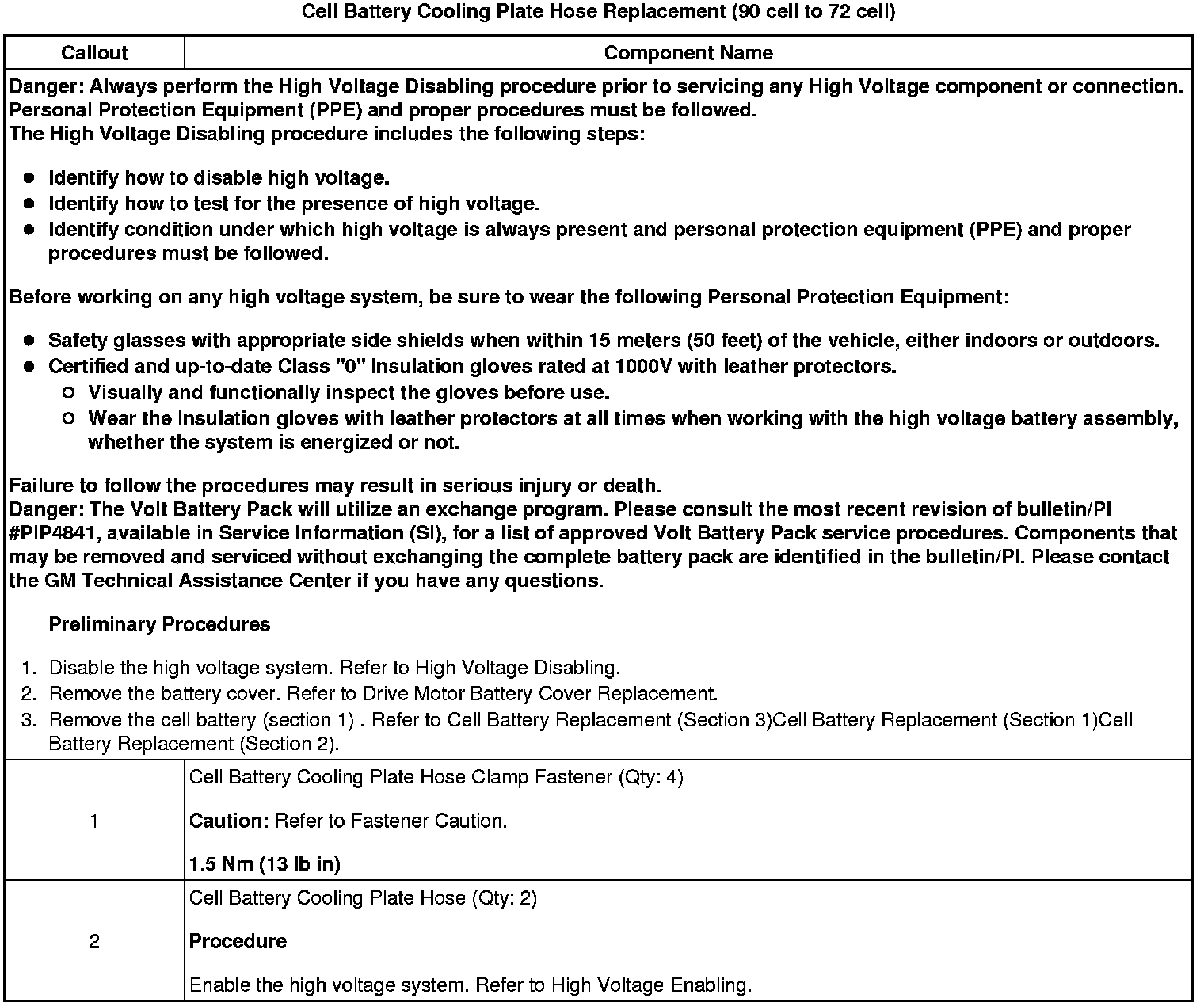

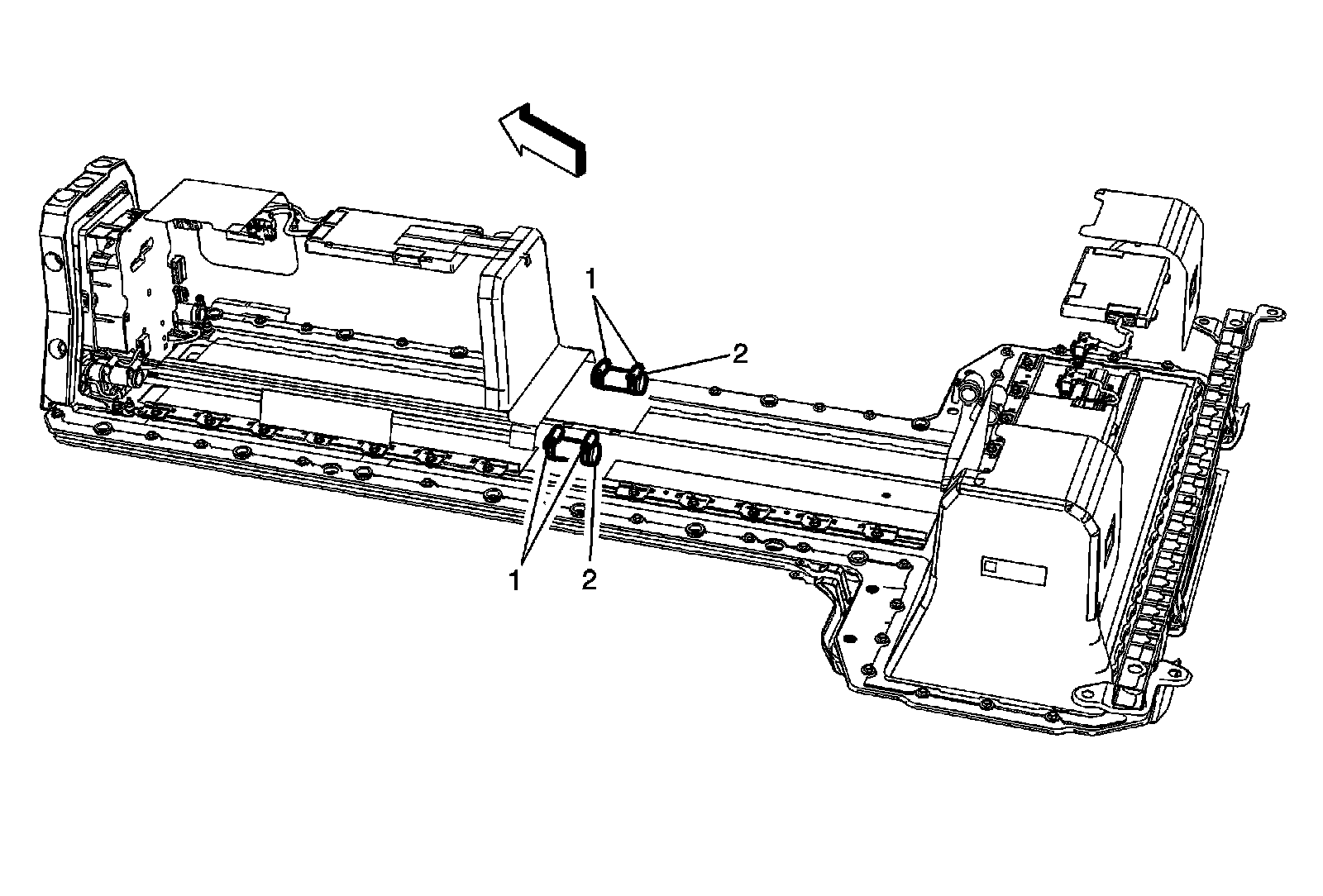

Cell Battery Cooling Plate Hose Replacement (90 cell to 72 cell)
Cell Battery Cooling Plate Hose Replacement (90 cell to 72 cell)
Cell Battery Cooling Plate Hose Replacement (90 cell to 72 cell)
