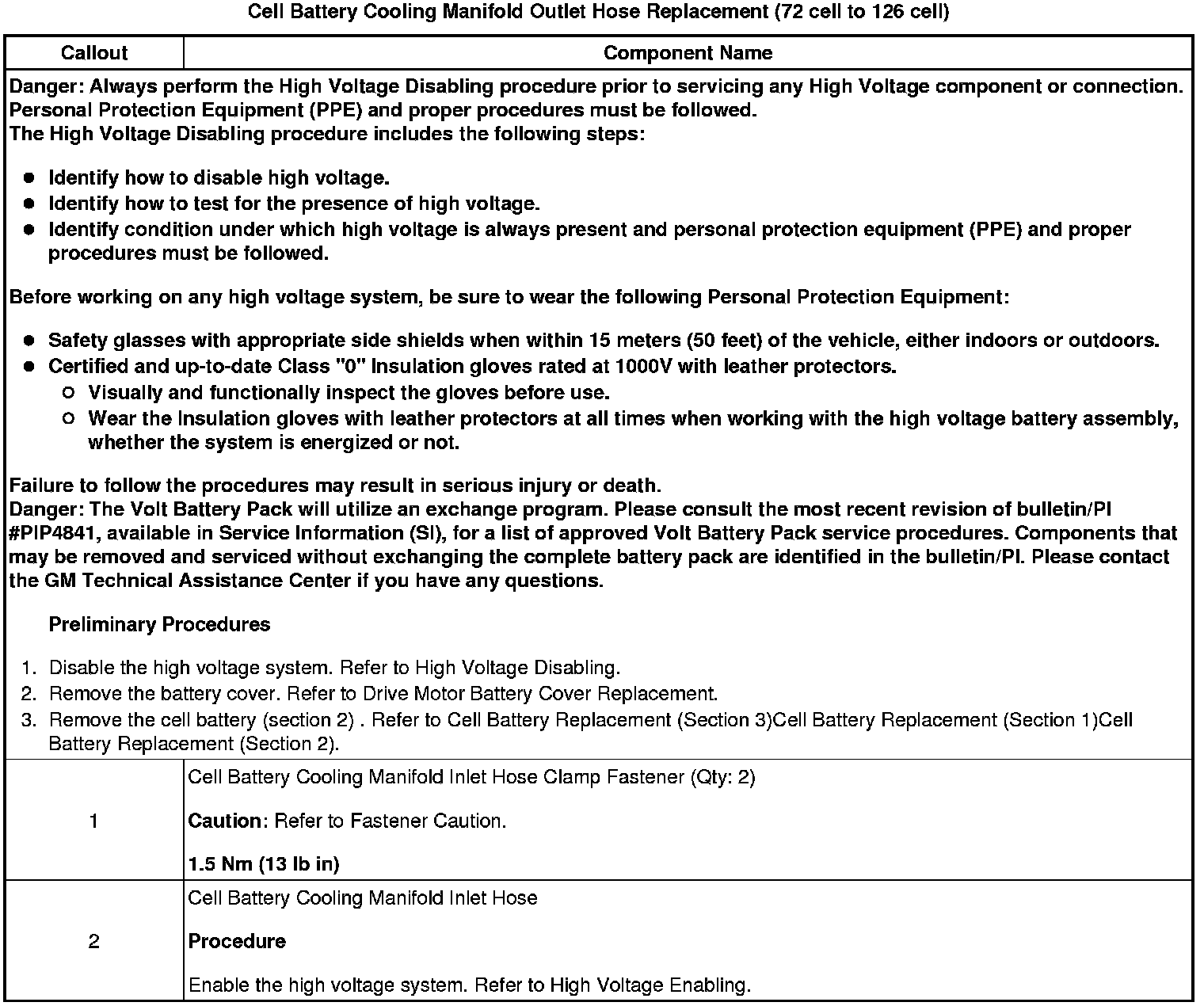

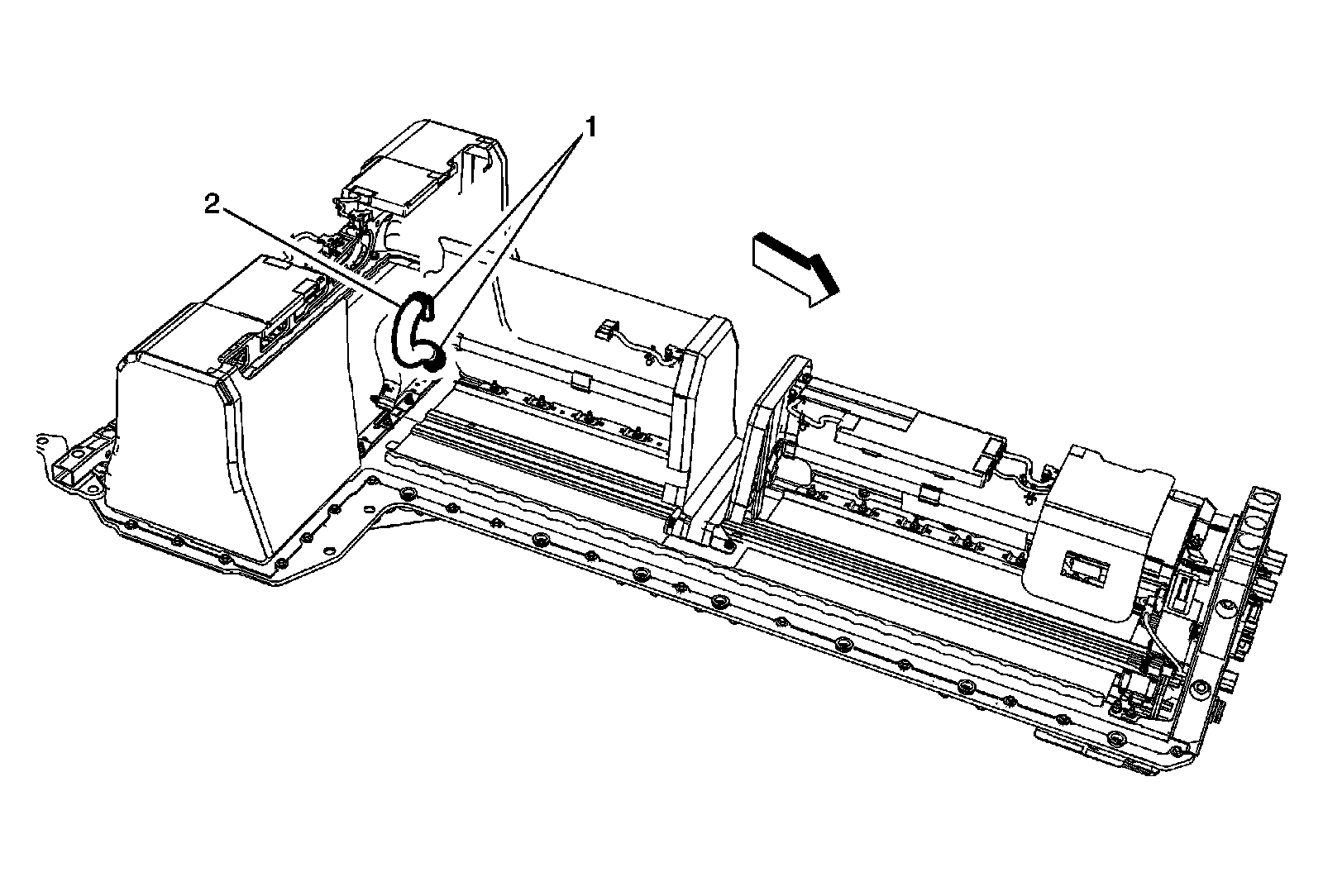

Cell Battery Cooling Manifold Outlet Hose Replacement (72 cell to 126 cell)
Cell Battery Cooling Manifold Outlet Hose Replacement (72 cell to 126 cell)
Cell Battery Cooling Manifold Outlet Hose Replacement (72 cell to 126 cell)
