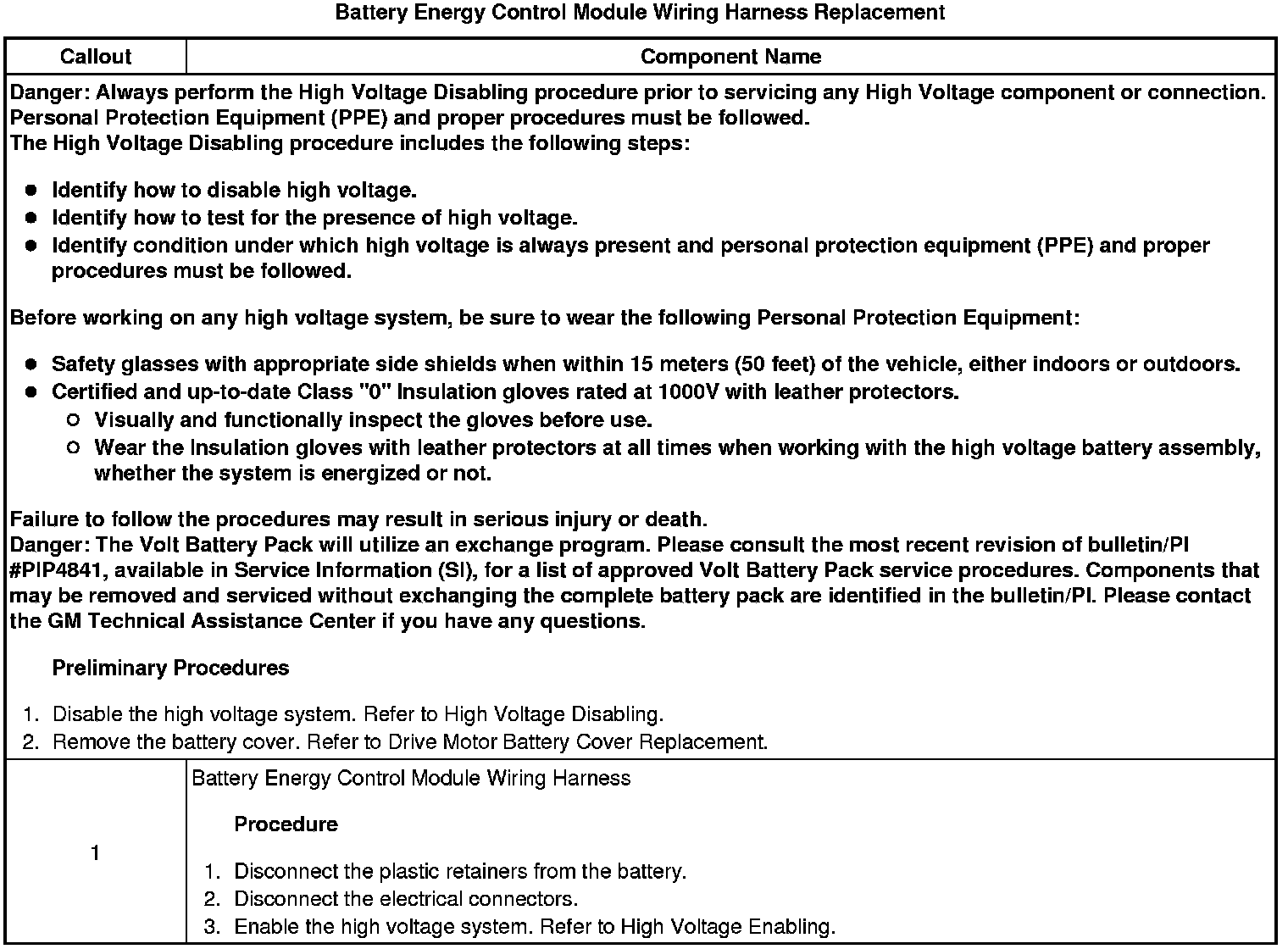

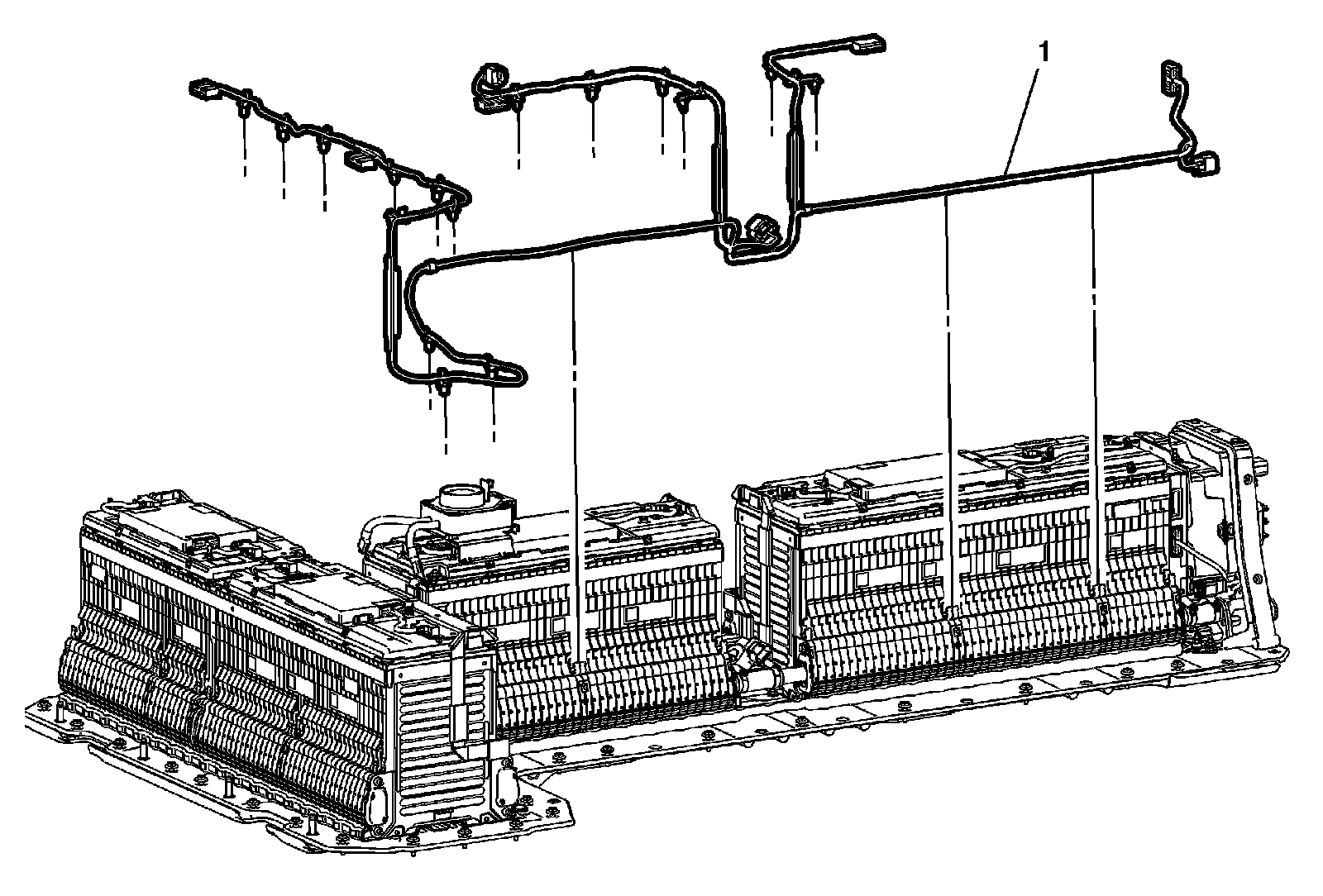

Battery Energy Control Module Wiring Harness Replacement




Battery Energy Control Module Wiring Harness Replacement
