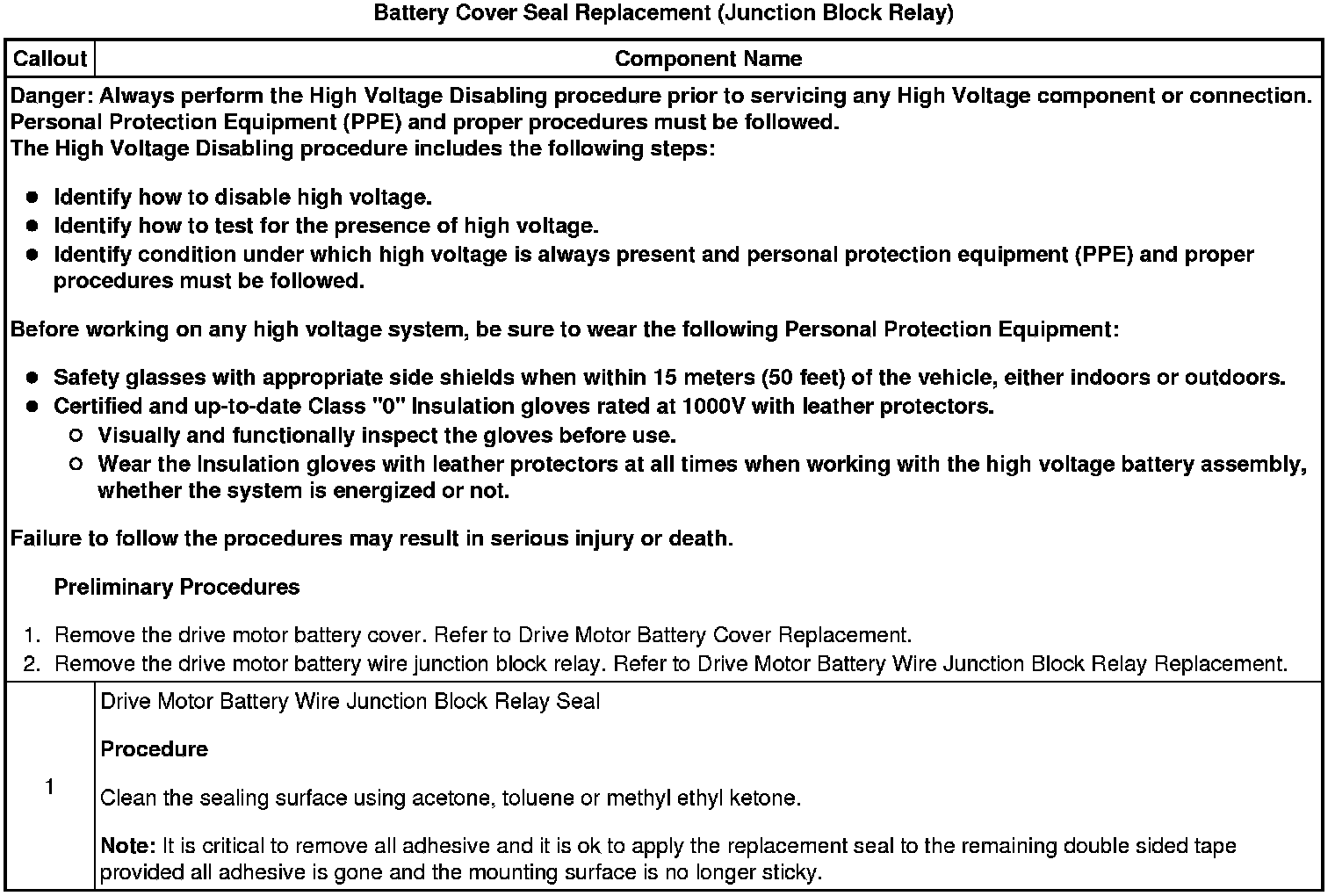

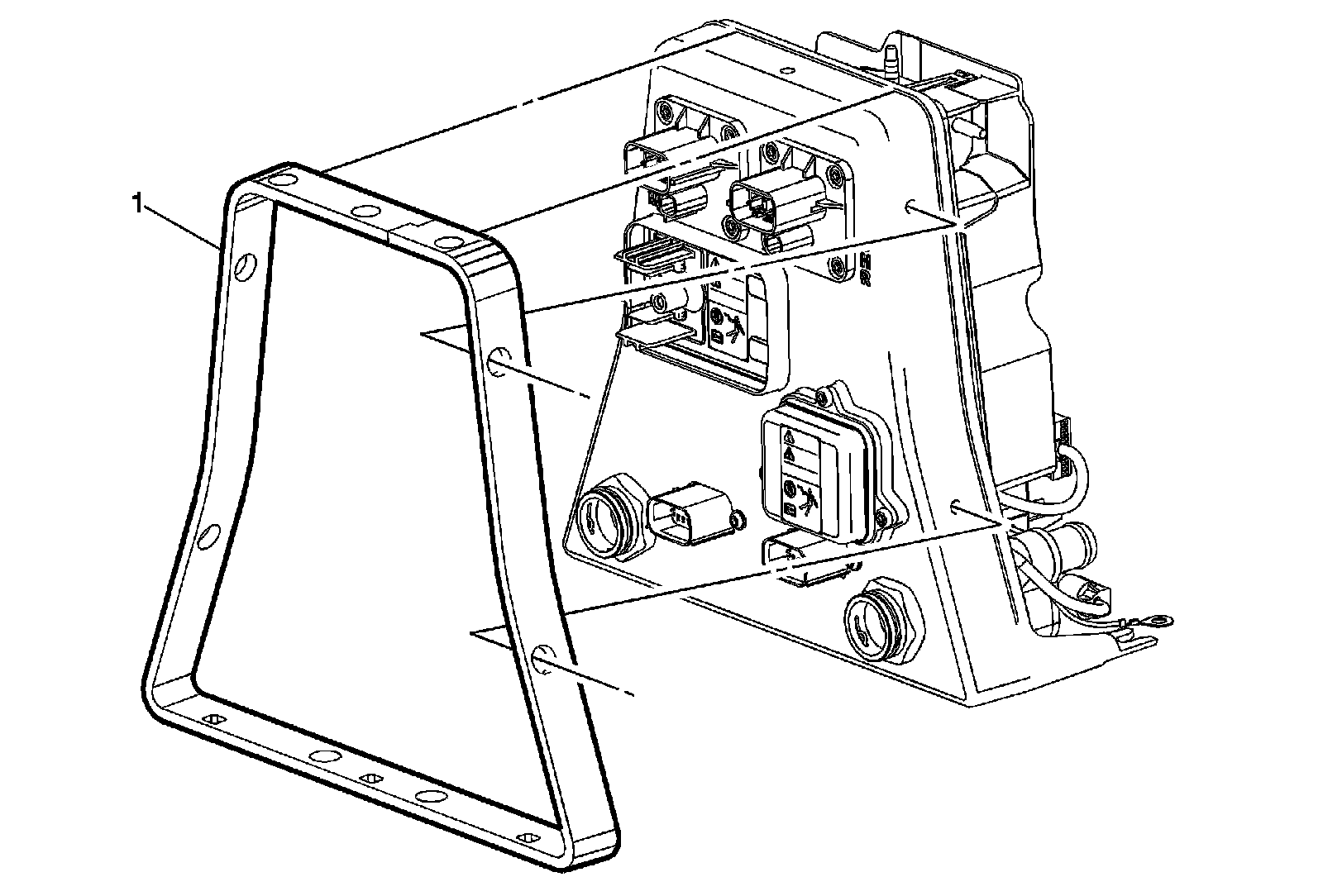

Battery Cover Seal Replacement (Junction Block Relay)




Battery Cover Seal Replacement (Junction Block Relay)
