Water Pump Installation

Water Pump Installation

1. Clean the sealing surfaces.





2. The water pump and engine front cover bolts are located as followed:

* Engine front cover special bolt without cone end 60 mm (2.362 in) (1).

* Engine front cover standard bolt with cone end 52 mm (2.047 in) (2).

* Water pump bolt 25 mm (0.984 in) (3).

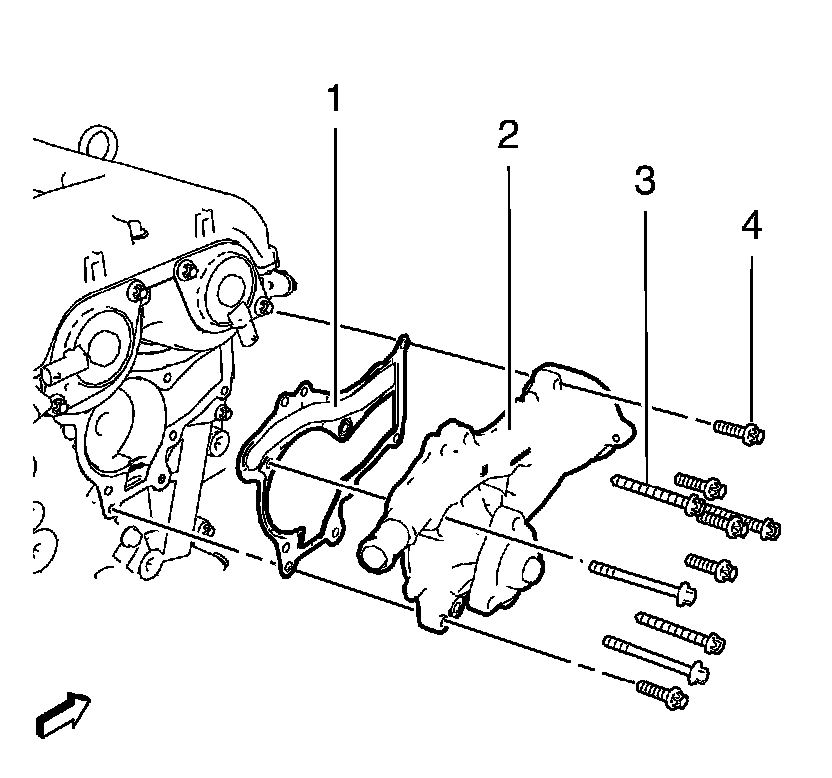

3. Install the water pump (2) and a NEW water pump gasket (1).

Caution:
Refer to Fastener Caution Fastener Caution.

4. Install the 5 water pump bolts (4) and the 5 long engine front cover bolts (3) and tighten in a cross sequence to 8 Nm (71 lb in).
