Timing Chain Tensioner Removal




Timing Chain Tensioner Removal

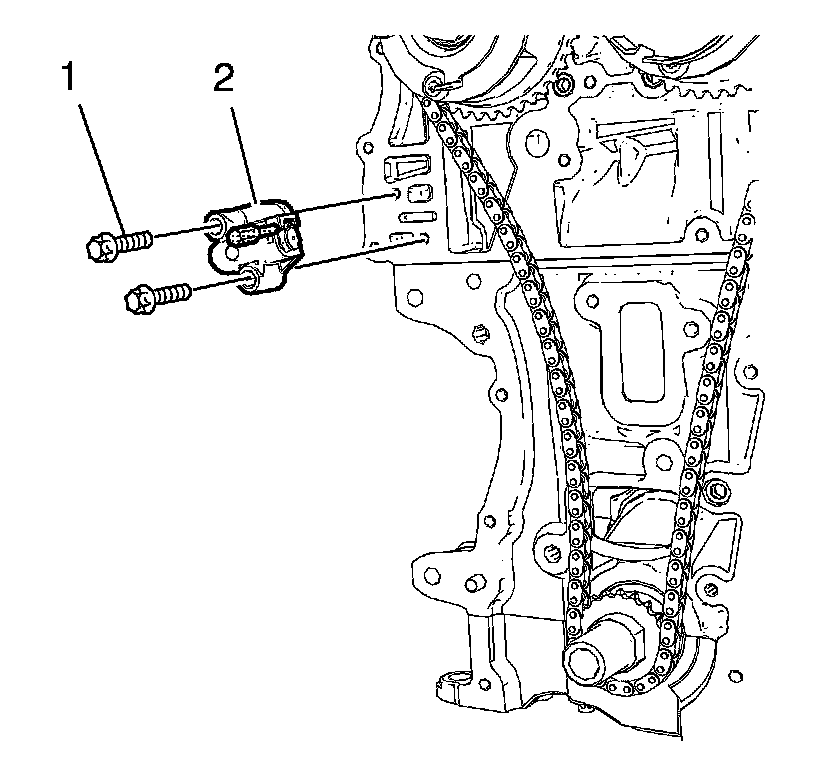

1. Remove the 2 timing chain tensioner bolts (1).

2. Remove the timing chain tensioner (2).
