Throttle Body Installation

Throttle Body Installation

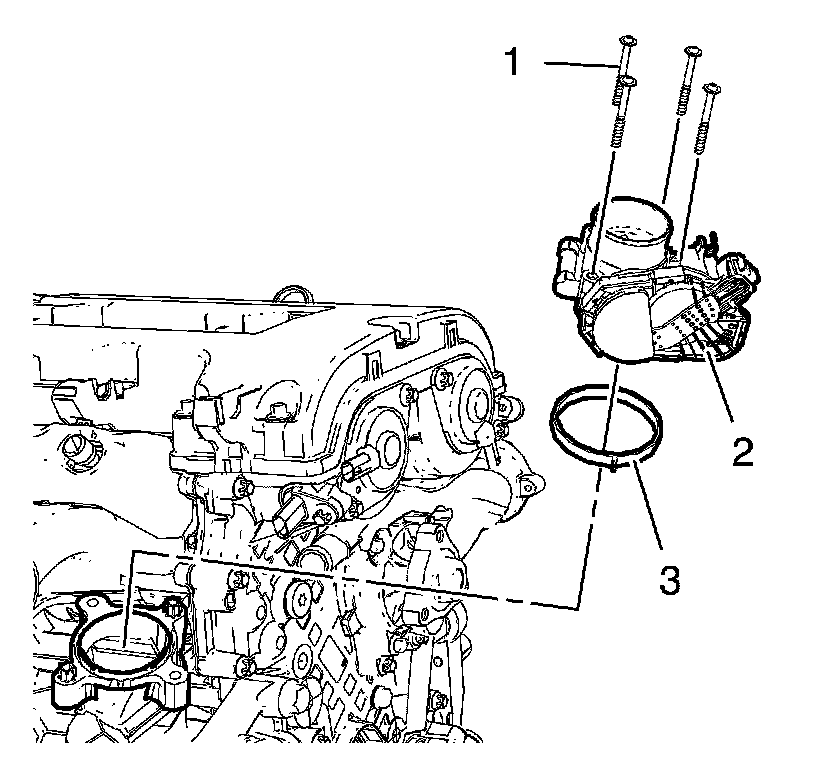

1. Install the throttle body (2) and a NEW throttle body seal ring (3)

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the 4 throttle body bolts (1) and tighten to 9 Nm (80 lb in).
