Oil Pan Removal

Oil Pan Removal

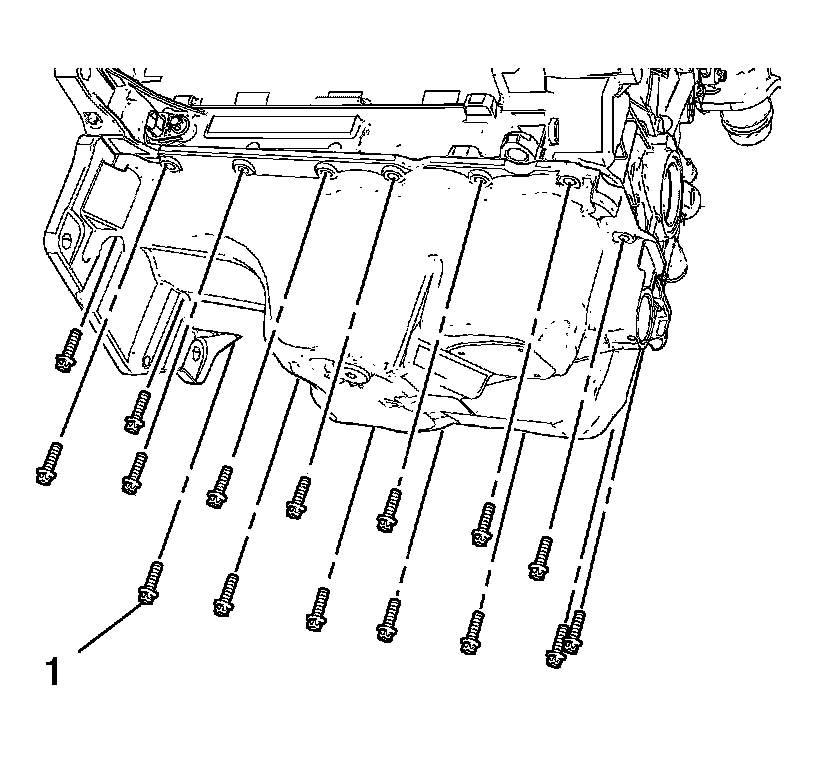

1. Remove the 16 oil pan bolts (1).





Note:
Work with care. Do not damage the oil pan or crankshaft bearing tie plate sealing surfaces.

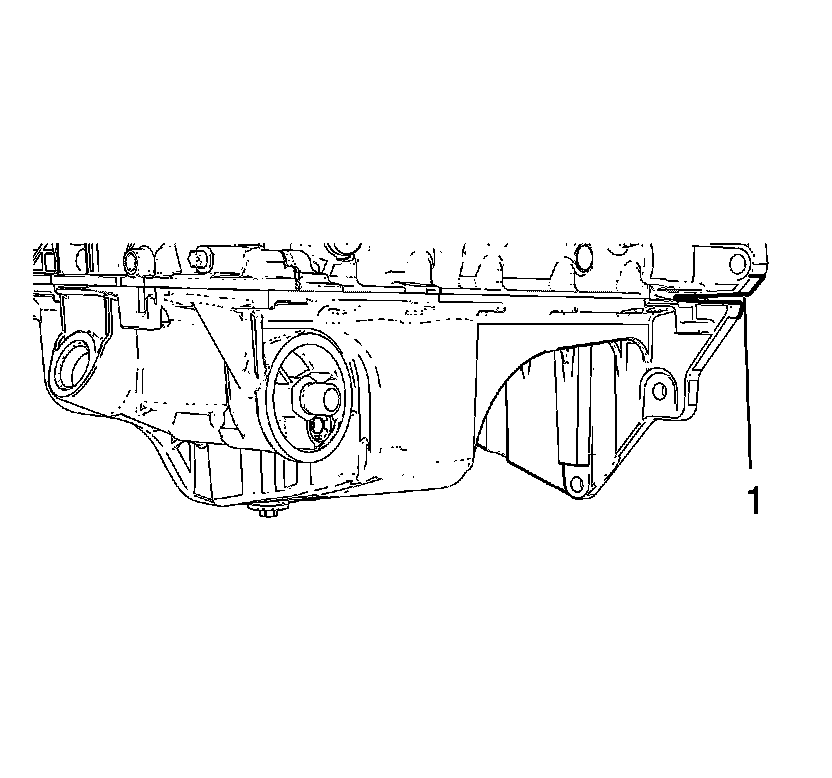

2. Install a mounting lever to the area (1) and loosen the oil pan by cautiously levering.

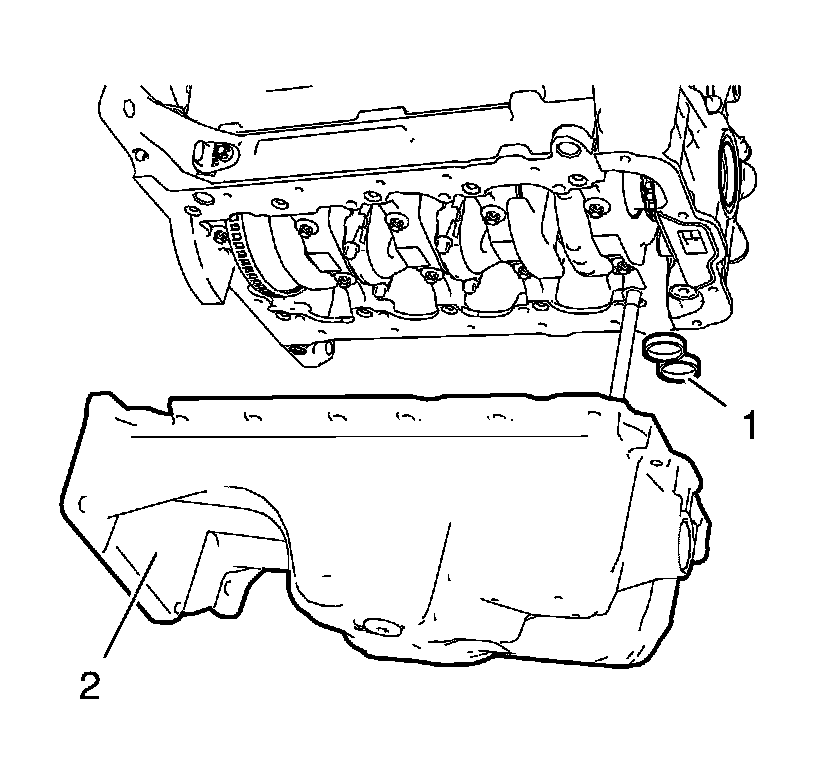

3. Remove the oil pan (2) and the seal rings (1).
