Intake Manifold Disassemble

Intake Manifold Disassemble

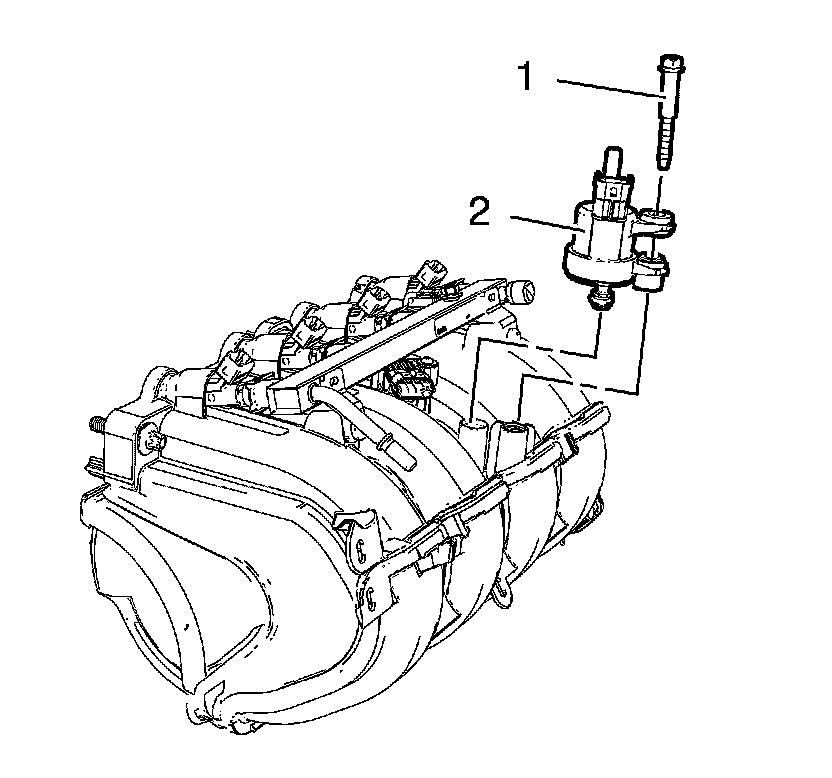

1. Remove the evaporative emission canister purge solenoid valve bolt (1).

2. Remove the evaporative emission canister purge solenoid valve (2) from intake manifold.

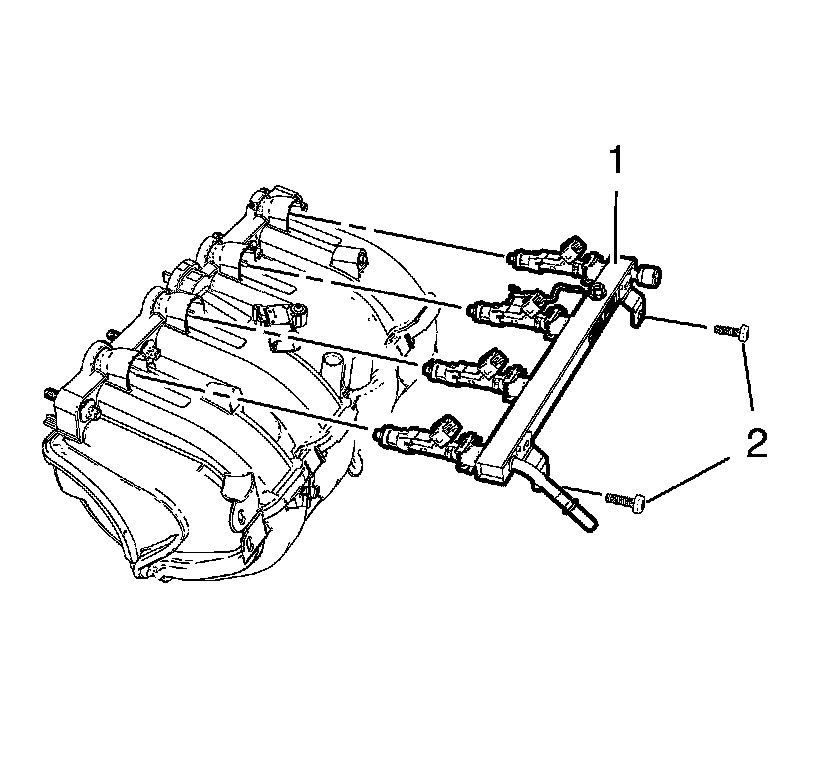

3. Remove the 2 fuel rail bolts (2).

4. Remove the fuel rail (1).

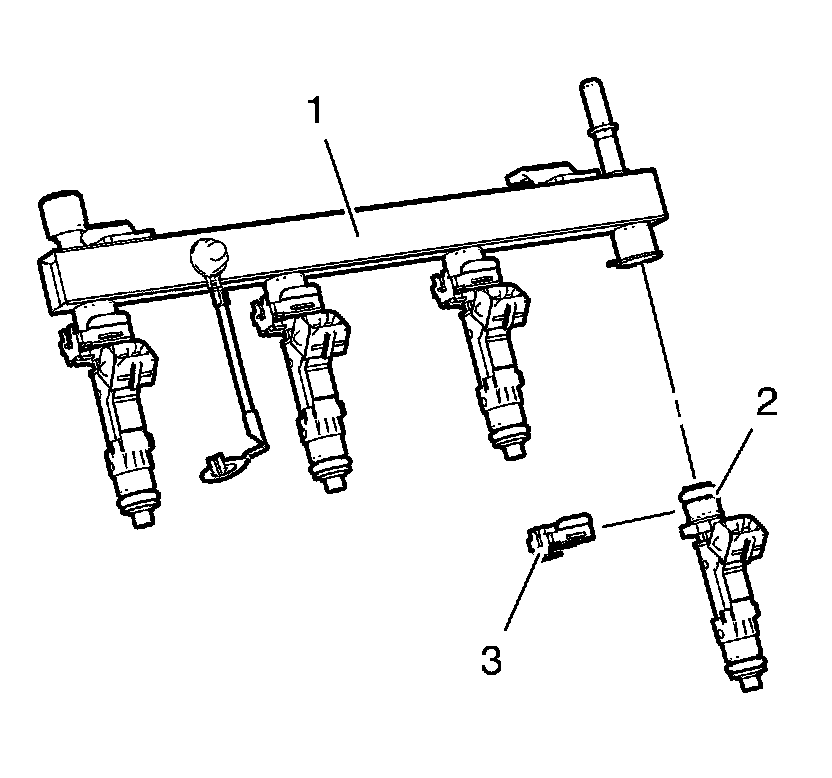

5. Remove the fuel injector retainer clamp (3).

6. Separate the fuel injector (2) from fuel rail (1).





7. Remove the intake manifold gasket (1).

8. Remove the manifold absolute pressure sensor bolt (2).

9. Remove the manifold absolute pressure sensor (3).
