Engine Mount Bracket Installation

Engine Mount Bracket Installation

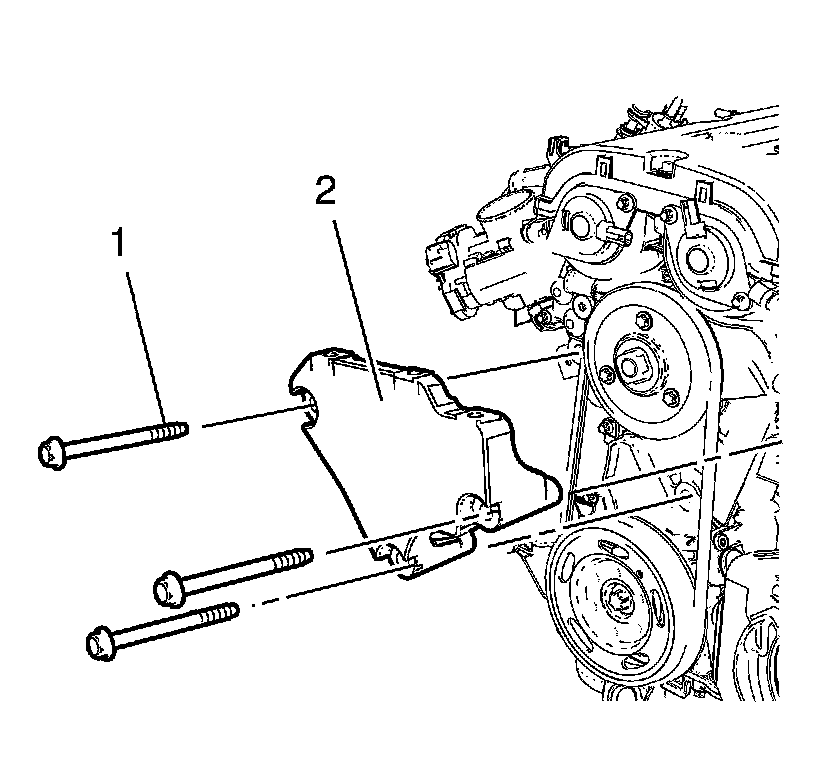

1. Install the engine mount bracket (2).

Caution:
Refer to Fastener Caution Fastener Caution.

Caution:
Refer to Torque-to-Yield Fastener Caution Torque-to-Yield Fastener Caution.

2. Install the 3 engine mount bracket bolts and tighten to 60 Nm (44 lb ft) + 45-60°.
