Engine Coolant Thermostat Housing Installation

Engine Coolant Thermostat Housing Installation

1. Clean the sealing surfaces.

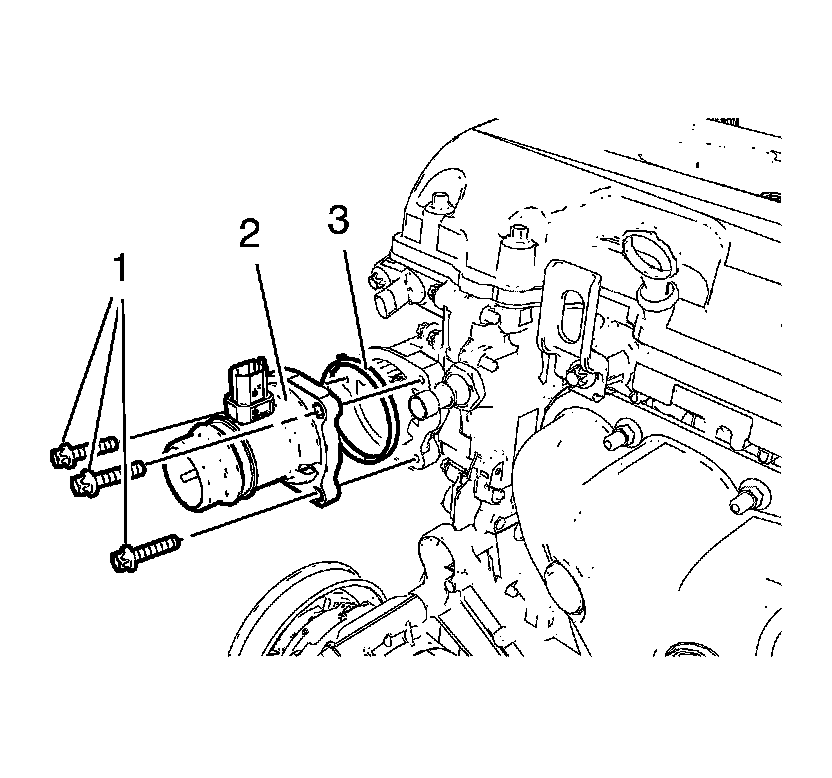

2. Install the engine coolant thermostat housing (2) and a NEW engine coolant thermostat housing seal ring (3).

Caution:
Refer to Fastener Caution Fastener Caution.

3. Install the 3 engine coolant thermostat housing bolts (1) and tighten to 8 Nm (71 lb in).
