Engine Block Assemble

Engine Block Assemble

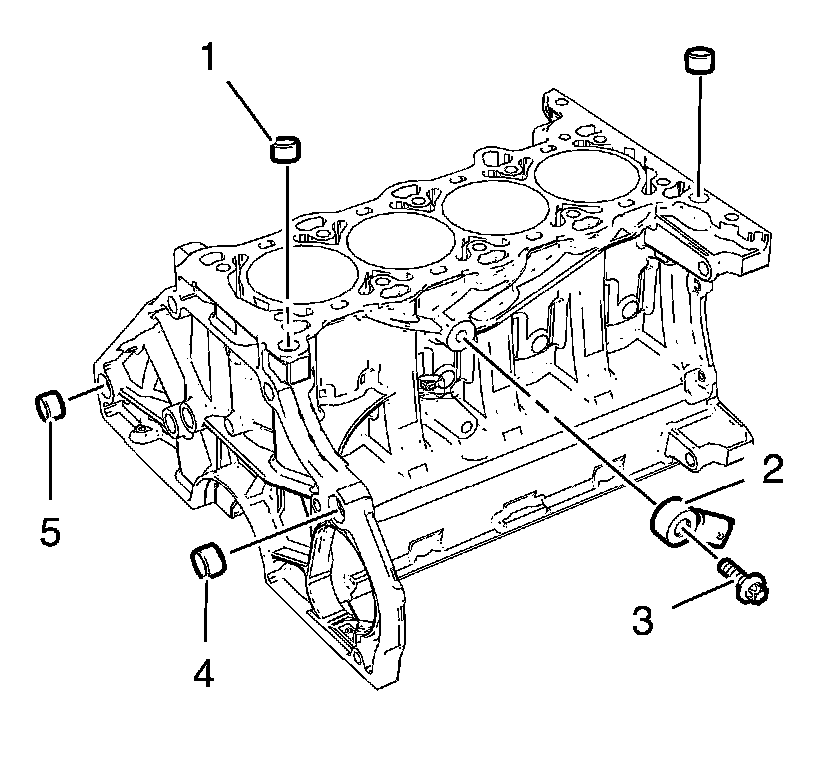

1. Install the knock sensor (2).

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the knock sensor bolt (3) and tighten to 20 Nm (15 lb ft).

3. Install the 2 cylinder head guide sleeves (1). Use a rubber mallet.

4. Install the 2 transmission guide sleeves (4, 5). Use a rubber mallet.
