Air Conditioning Compressor Bracket Installation

Air Conditioning Compressor Bracket Installation

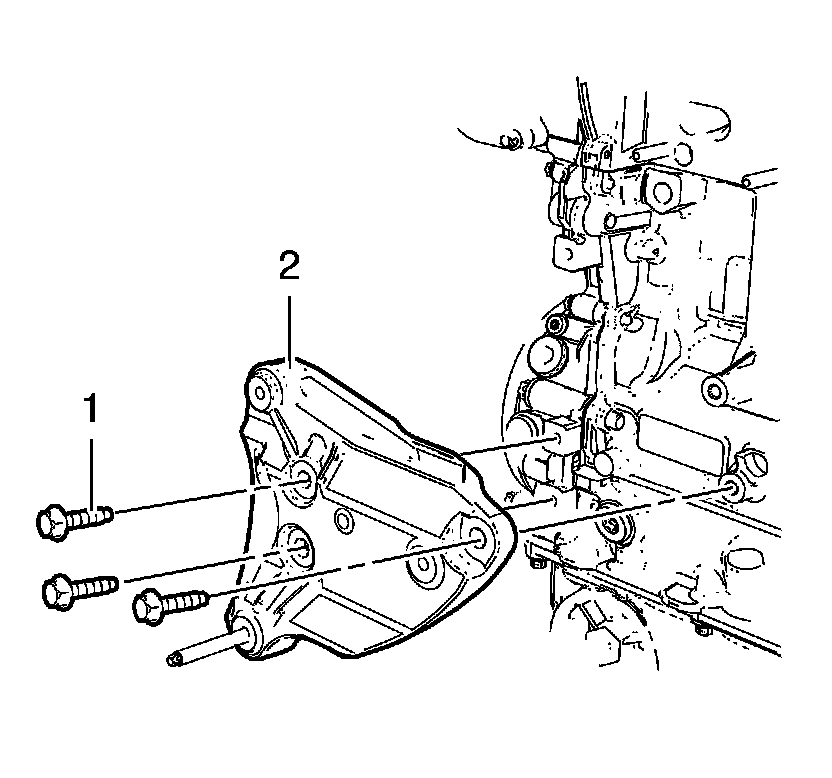

1. Install the air conditioning compressor bracket (2).

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the 3 air conditioning compressor bracket bolts (1) and tighten to 22 Nm (16 lb ft).
