Rear Crankshaft Main Bearing Seal: Service and Repair

Crankshaft Rear Oil Seal Replacement

Special Tools

EN-658 - Rear Main Seal Installer

For equivalent regional tools, refer to Special Tools Tools and Equipment.

Removal Procedure

1. Remove the automatic transmission flex plate. Refer to Automatic Transmission Flex Plate Replacement Service and Repair.





Note:
Do not damage the outside diameter of the crankshaft or chamber with any tool.

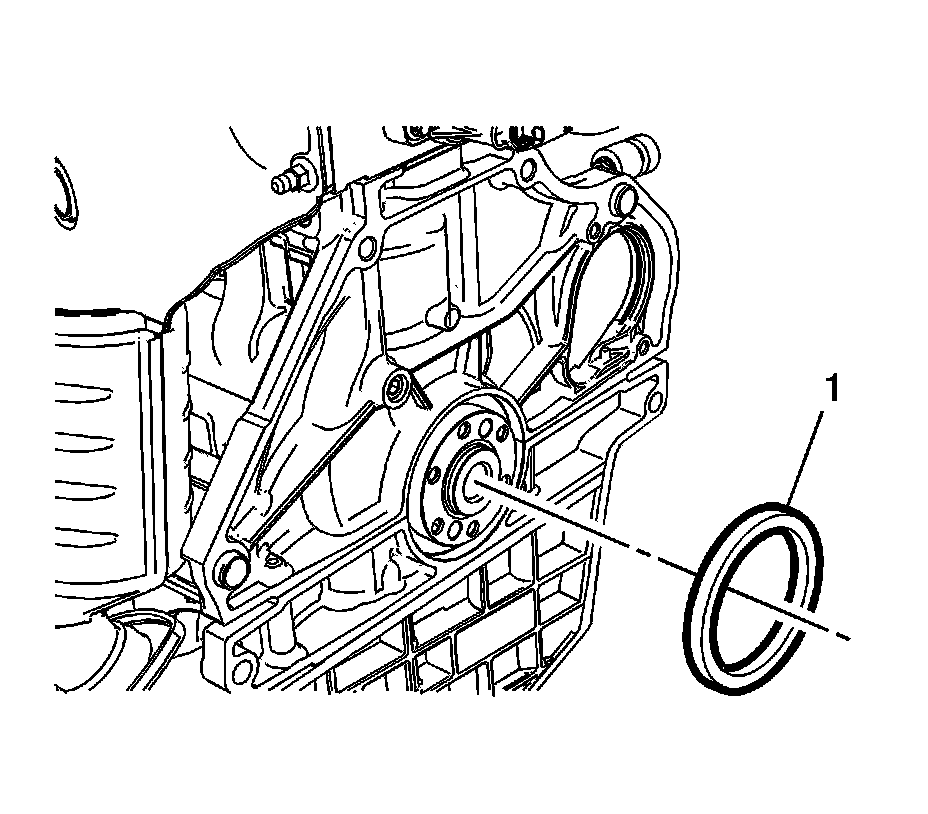

2. Using a flat-bladed tool, remove the rear crankshaft oil seal (1).

Installation Procedure





1. Install the crankshaft rear oil seal (1) with EN-658 - installer(2).





2. Using the EN-658 - installer(2) , install a NEW crankshaft real oil seal (1).

3. Install the automatic transmission flex plate. Refer to Automatic Transmission Flex Plate Replacement Service and Repair.
