Exhaust Camshaft Replacement

Exhaust Camshaft Replacement

Removal Procedure

1. Remove the camshaft exhaust sprocket. Refer to Camshaft Intake and Exhaust Sprocket Replacement Service and Repair.





2. Remove the camshaft bearing cap bolts in sequence shown. Ensure to remove the bolts one turn at a time until there is no spring tension pushing on the camshaft.

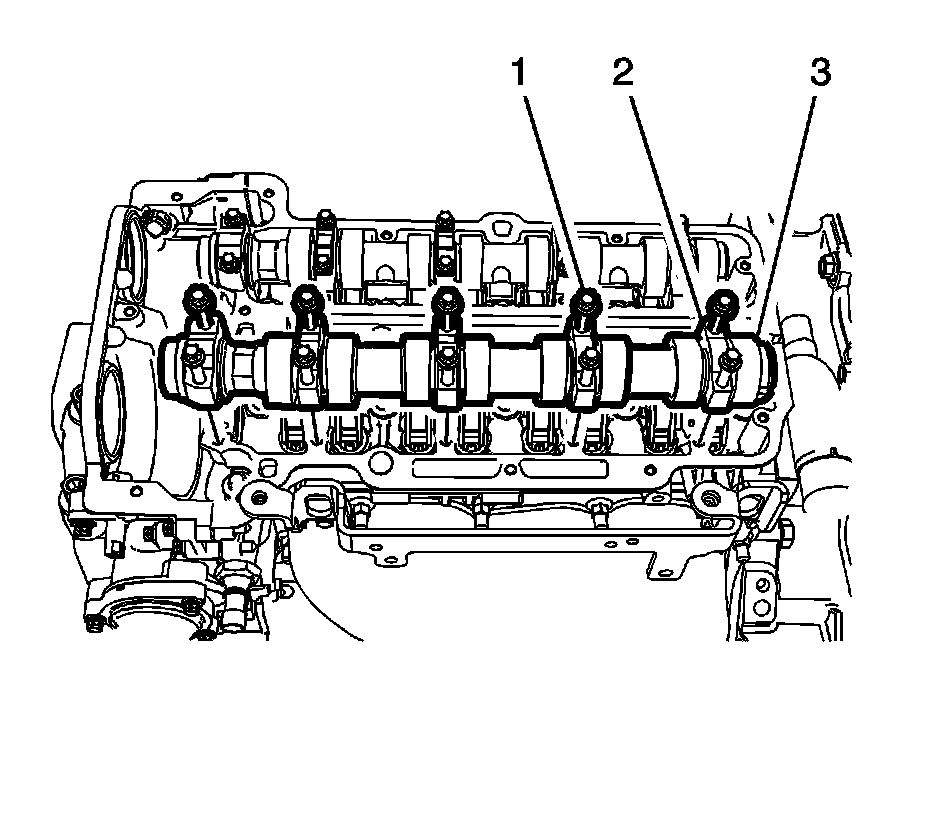

3. Remove the camshaft bearing cap bolts (1).

4. Remove the camshaft bearing caps (2).

5. Remove the exhaust camshaft (3).

Installation Procedure





Note:
Ensure that the camshaft sealing rings are in place in the camshaft grooves. Camshaft sealing rings must be in place below the surface of the camshaft journal in order to avoid being pinched between the cylinder head and the camshaft caps.

1. Lubricate camshaft and camshaft bearing caps with engine oil.

2. Install the exhaust camshaft (3).

3. Install the camshaft bearing caps (2).

Caution:
Refer to Fastener Caution Fastener Caution.

4. Install the camshaft bearing cap and hand tighten the bolts (1).





5. Install and tighten the camshaft bearing cap bolts one turn at a time in sequence as shown 8 Nm (71 lb in).

6. Install the camshaft exhaust sprocket. Refer to Camshaft Intake and Exhaust Sprocket Replacement Service and Repair.
