Seal Locations

Seal Locations

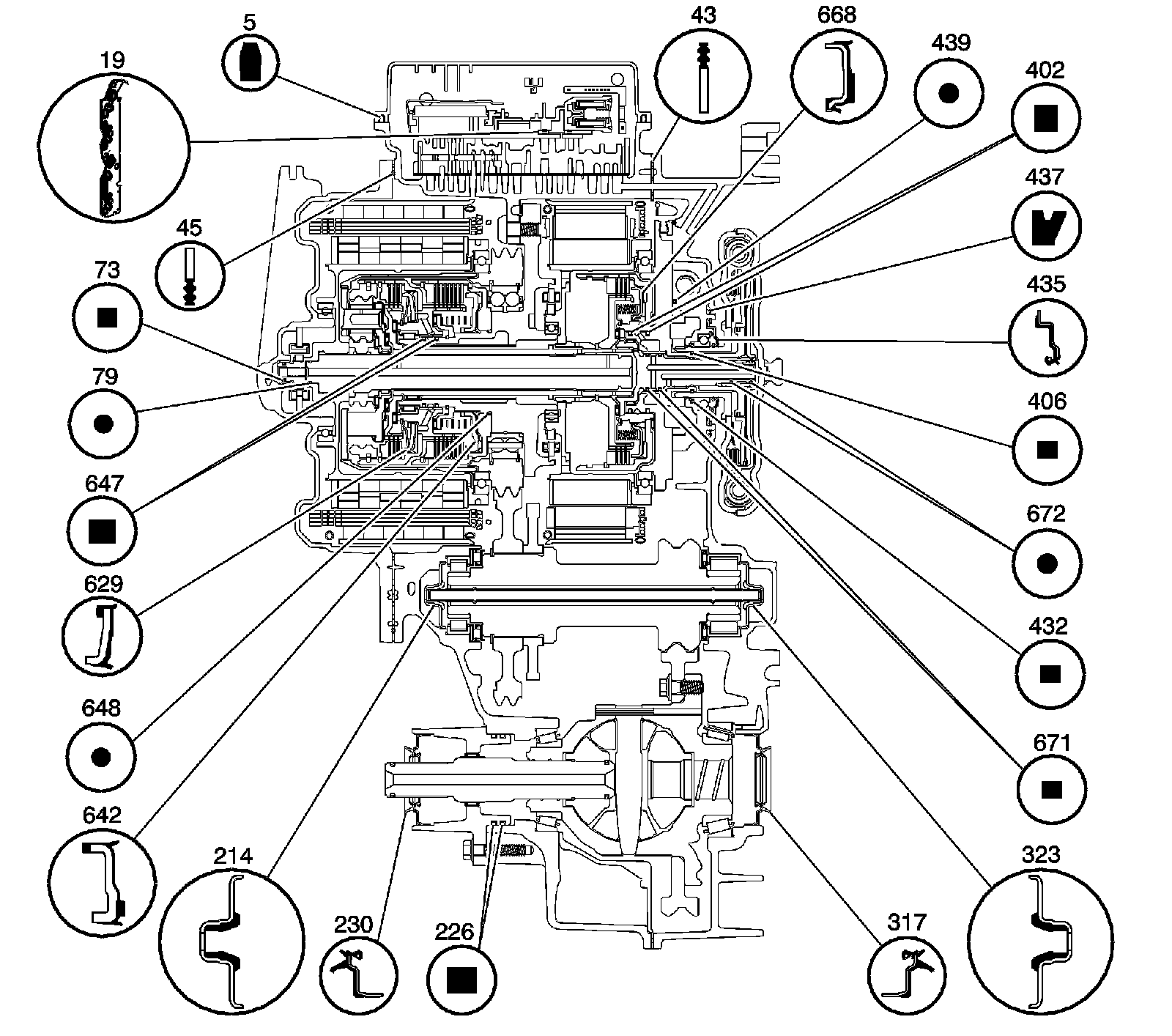

Seal Locations #1





5 - Control Valve Body Cover Gasket

19 - Control Solenoid Valve Filter Plate

43 - Torque Dampener Housing Outer Seal

45 - A/Trans Case Cover Gasket

73 - Drive Motor/Generator Rotor Lube Seal

79 - Output Sun Gear Shaft Lube O-Ring Seal

214 - Front Differential Drive Pinion Gear Lube Dam

226 - A/Trans Case Extension Seal Qty: 2

230 - Front Wheel Drive Shaft Oil Seal Assembly (LHS)

317 - Front Wheel Drive Shaft Oil Seal Assembly (RHS)

323 - Front Differential Drive Pinion Gear Lube Dam

402 - 1-3 Reverse Clutch Housing Seal

406 - A/Trans Fluid Pump Seal

432 - A/Trans Torque Dampener Bearing Seal

435 - A/Trans Torque Dampener Fluid Seal Assembly

437 - A/Trans Fluid Pump (O-Ring) Seal

439 - A/Trans Fluid Pump Seal

629 - Variable Hi and 2-3-4 Clutch Piston Assembly

642 - Variable Low and 1-2 Reverse Clutch Piston Assembly

647 - Variable Hi and 2-3-4 Clutch Seal

648 - Variable Low and 1-2 Reverse Clutch Housing (O-Ring) Seal

668 - 1-3 Reverse Clutch Piston

671 - Input Shaft Seals Qty: 2

672 - Input Shaft Seals Qty: 2

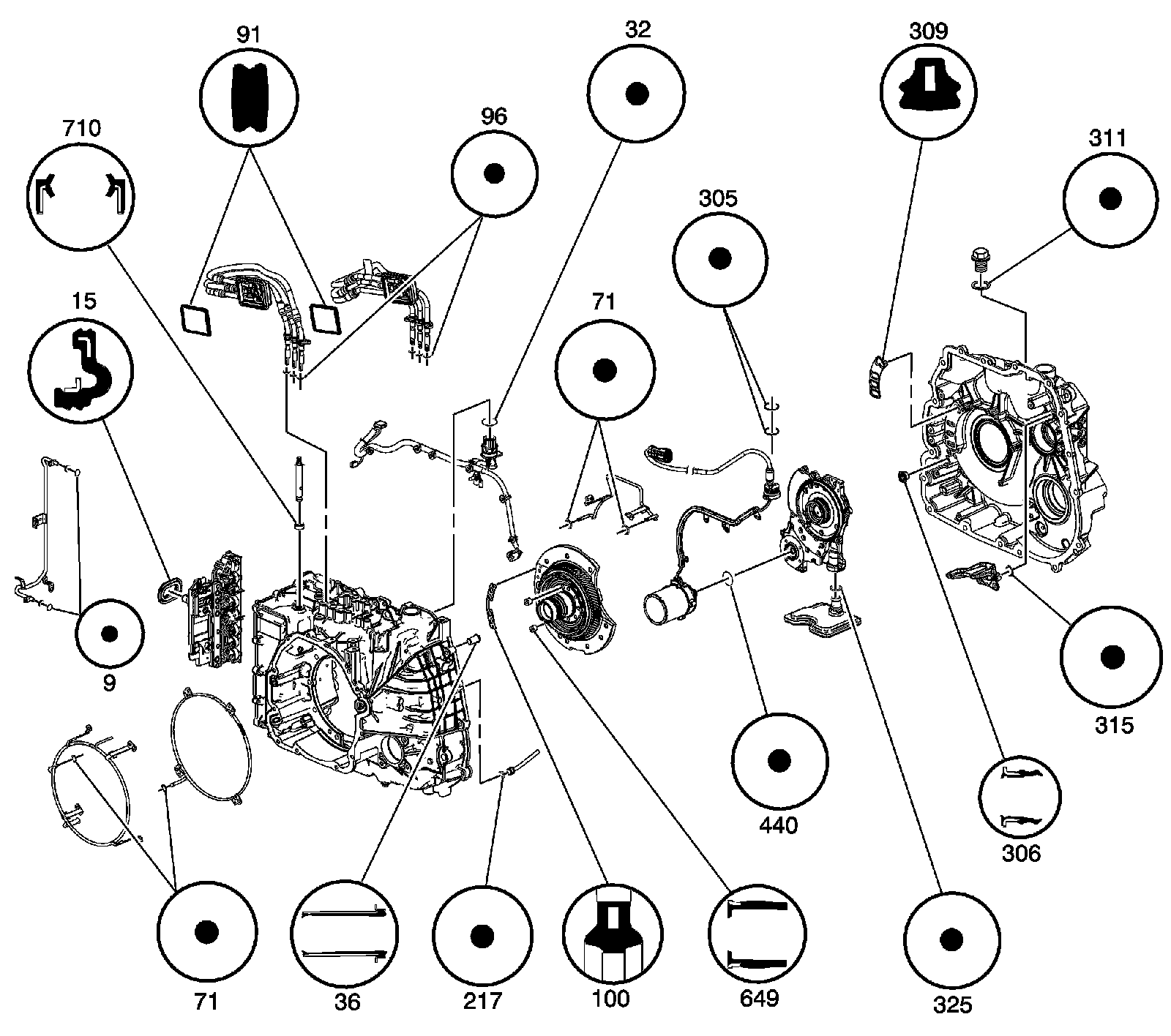

Seal Locations #2





9 - Transmission Fluid Cooler Outlet Seal

15 - Control Valve Body Cover Wiring Connector Hole Seal

32 - Wiring Connector Seal

36 - A/Trans Pump Fluid Outlet Seal Assembly

71 - Drive Motor/Generator Stator Cooling Tube Seal Qty: 4

91 - Drive Motor/Generator Power Inverter Module Cable Housing Cover Seal

96 - Drive Motor/Generator Power Inverter Module Cable Assembly Seal- 3 Phase

100 - Center Support Oil Passage Seal

217 - Front Differential Carrier Lube Pipe Seal

305 - O-Ring Seal

306 - A/Trans Pump Fluid Outlet Seal Assembly

309 - A/Trans Fluid Pump Seal Assembly

311 - Fill Hole Plug Seal

315 - A/Trans Fluid Trough Seal

325 - A/Trans Fluid Filter Seal

440 - A/Trans Auxiliary Fluid Pump Motor Seal

649 - Variable Low and 1-2 Reverse Clutch Housing Fluid Passage Seal Qty: 2

710 - Manual Shift Shaft Seal
