Exterior Lights Schematics
Exterior Lights Schematics

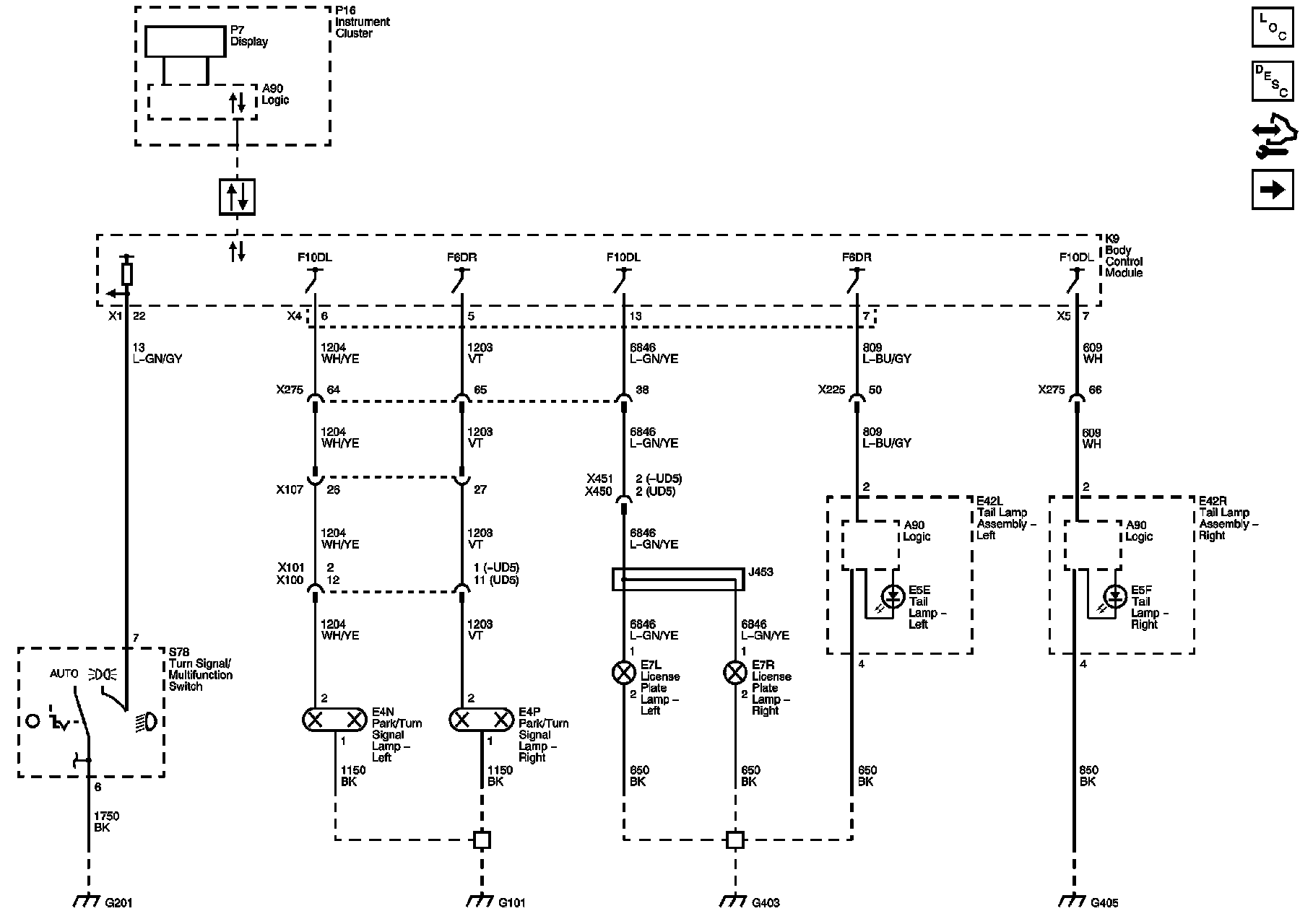

Park, Tail and License Lamps

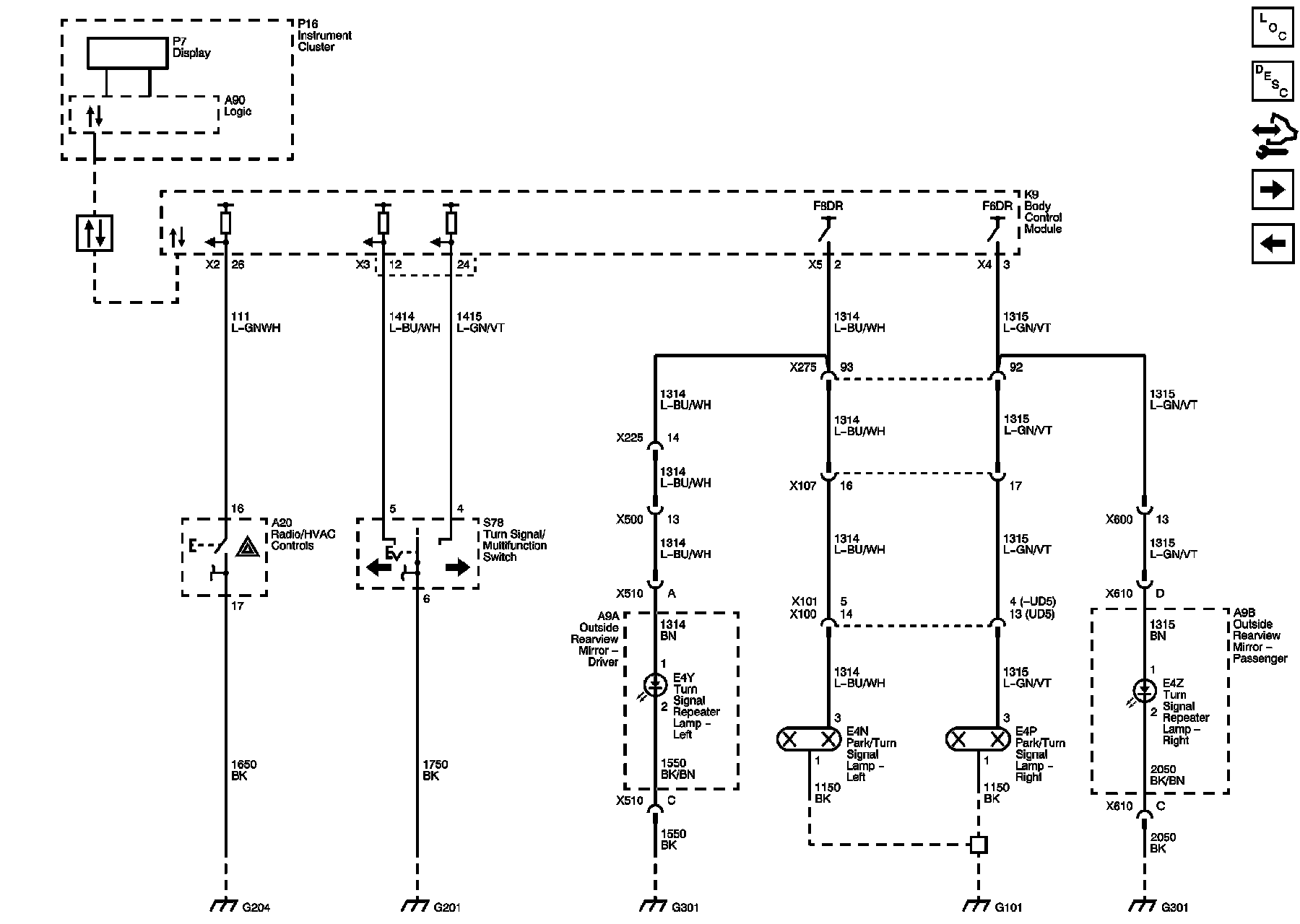

Front Turn Signals and Controls

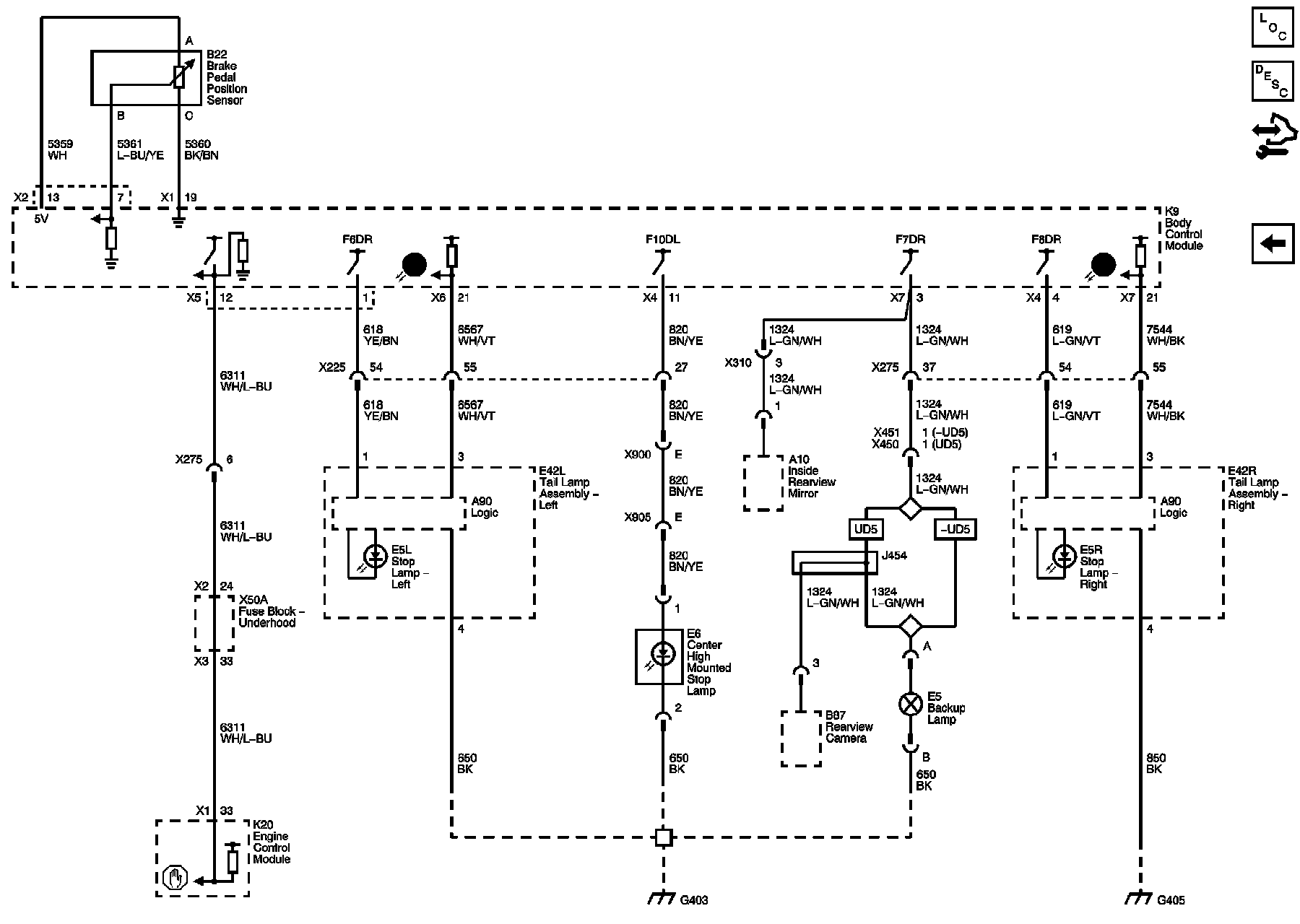

Rear Turn Signals, Stop Lamps and Backup Lamp
Exterior Lights Schematics
Park, Tail and License Lamps
Front Turn Signals and Controls
Rear Turn Signals, Stop Lamps and Backup Lamp
