Hybrid Cooling Schematics




Hybrid Cooling Schematics

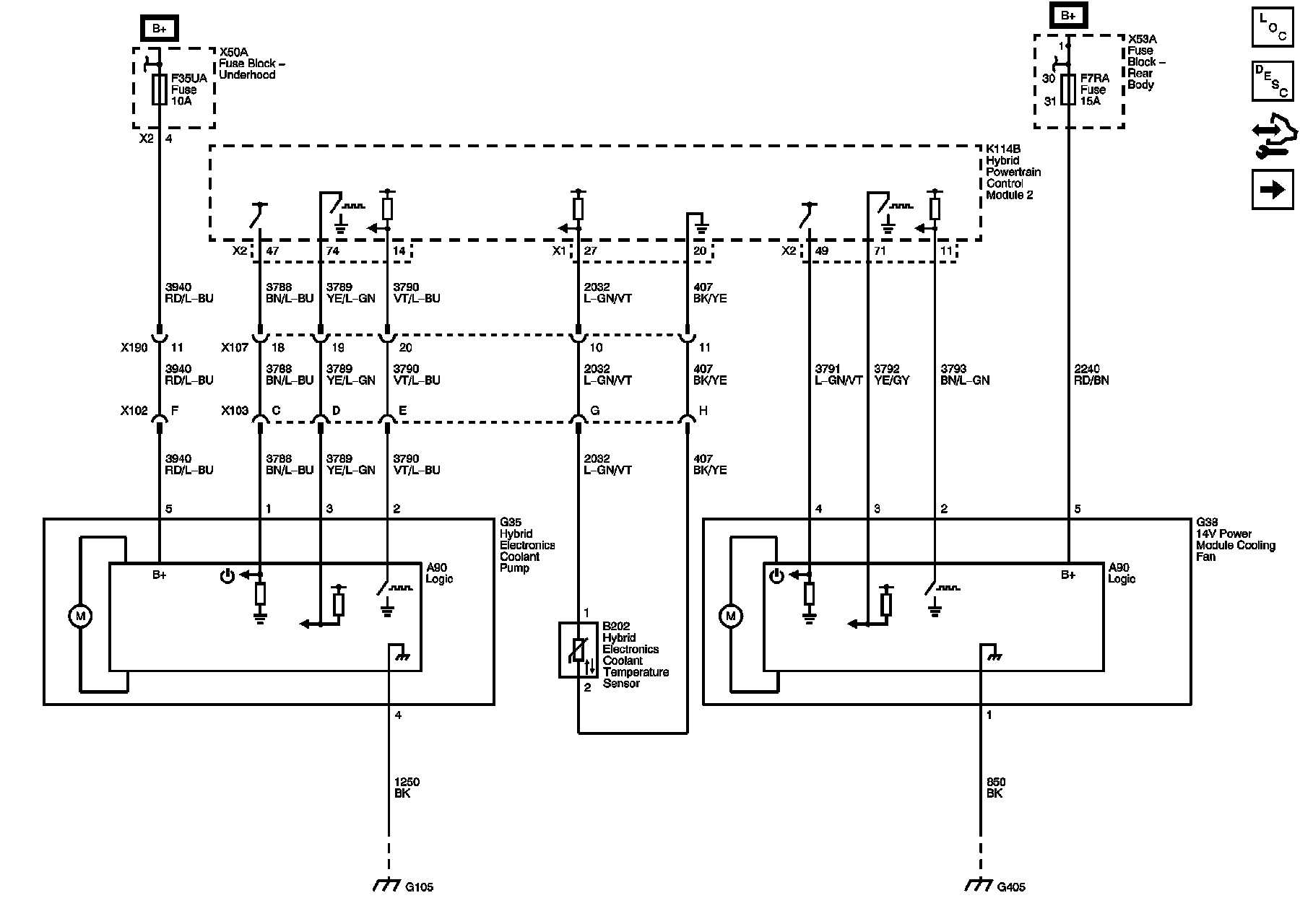

Hybrid/EV Electronics Cooling

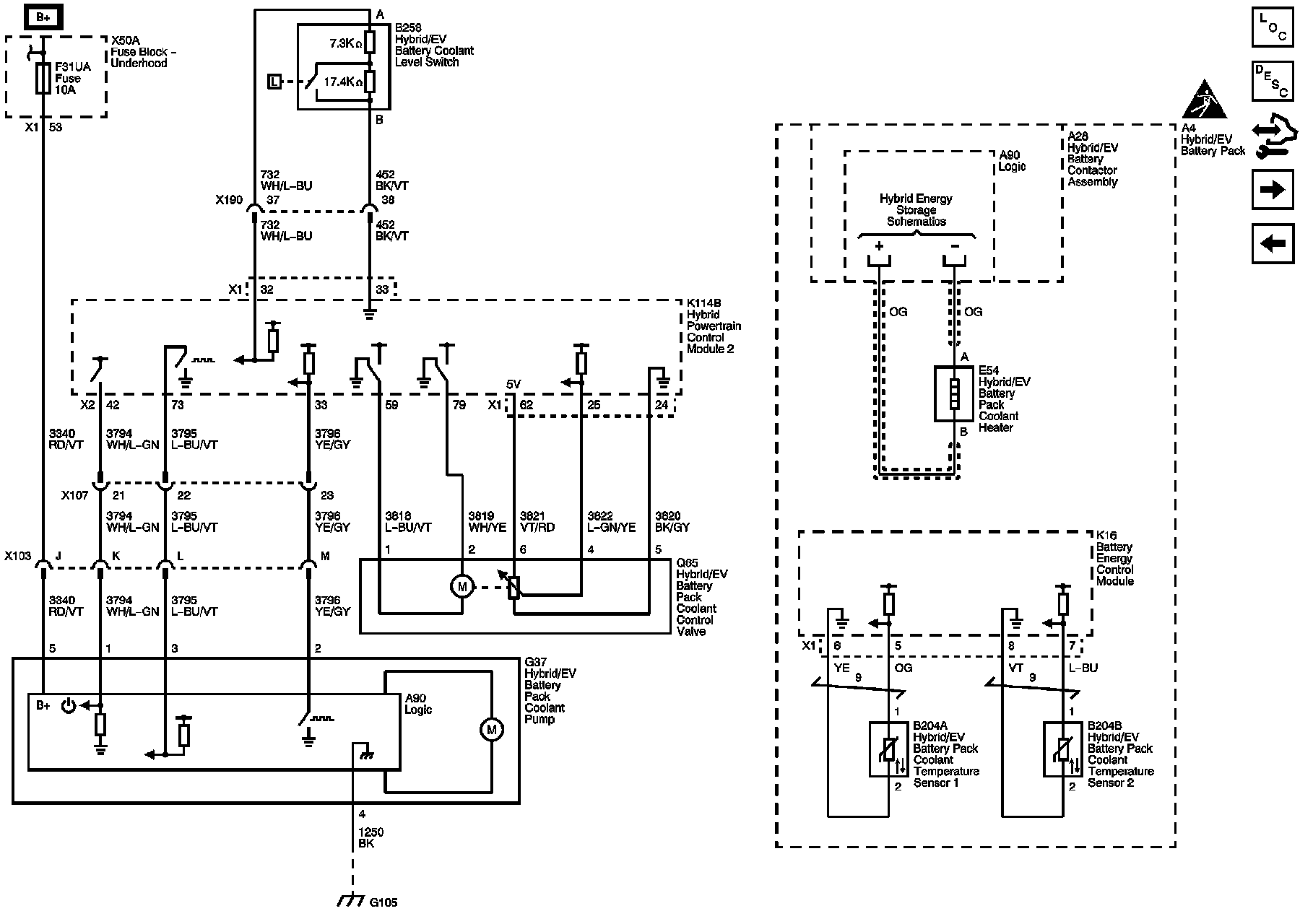

Hybrid/EV Battery Pack Cooling

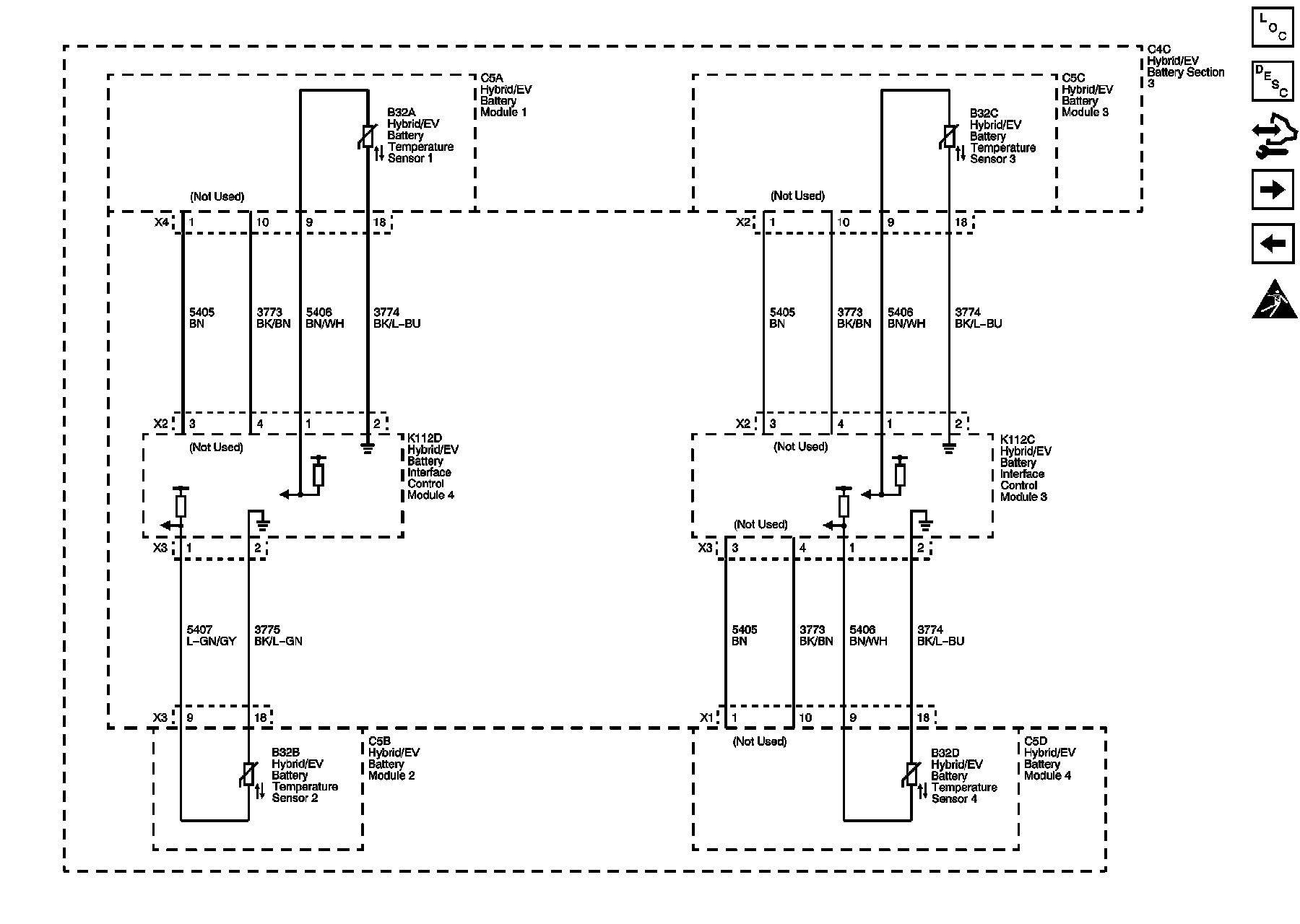

Hybrid/EV Battery Modules - Temperature Sensors 1 through 4

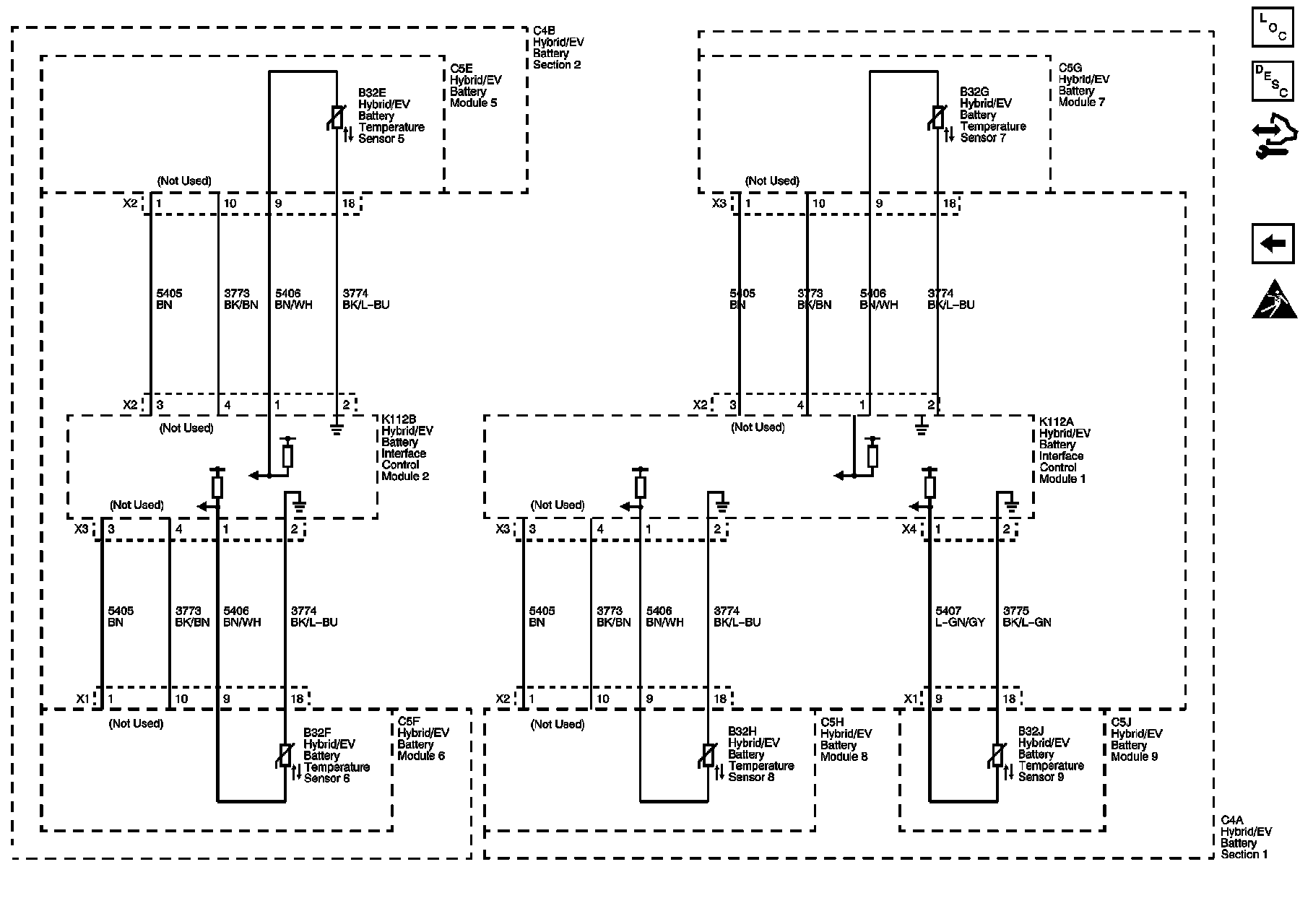

Hybrid/EV Battery Modules - Temperature Sensors 5 through 9
