Home >> Chevrolet >> 2013 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Hybrid Drive Systems >> System Diagram >> Hybrid Controls Schematics

Hybrid Controls Schematics




Hybrid Controls Schematics

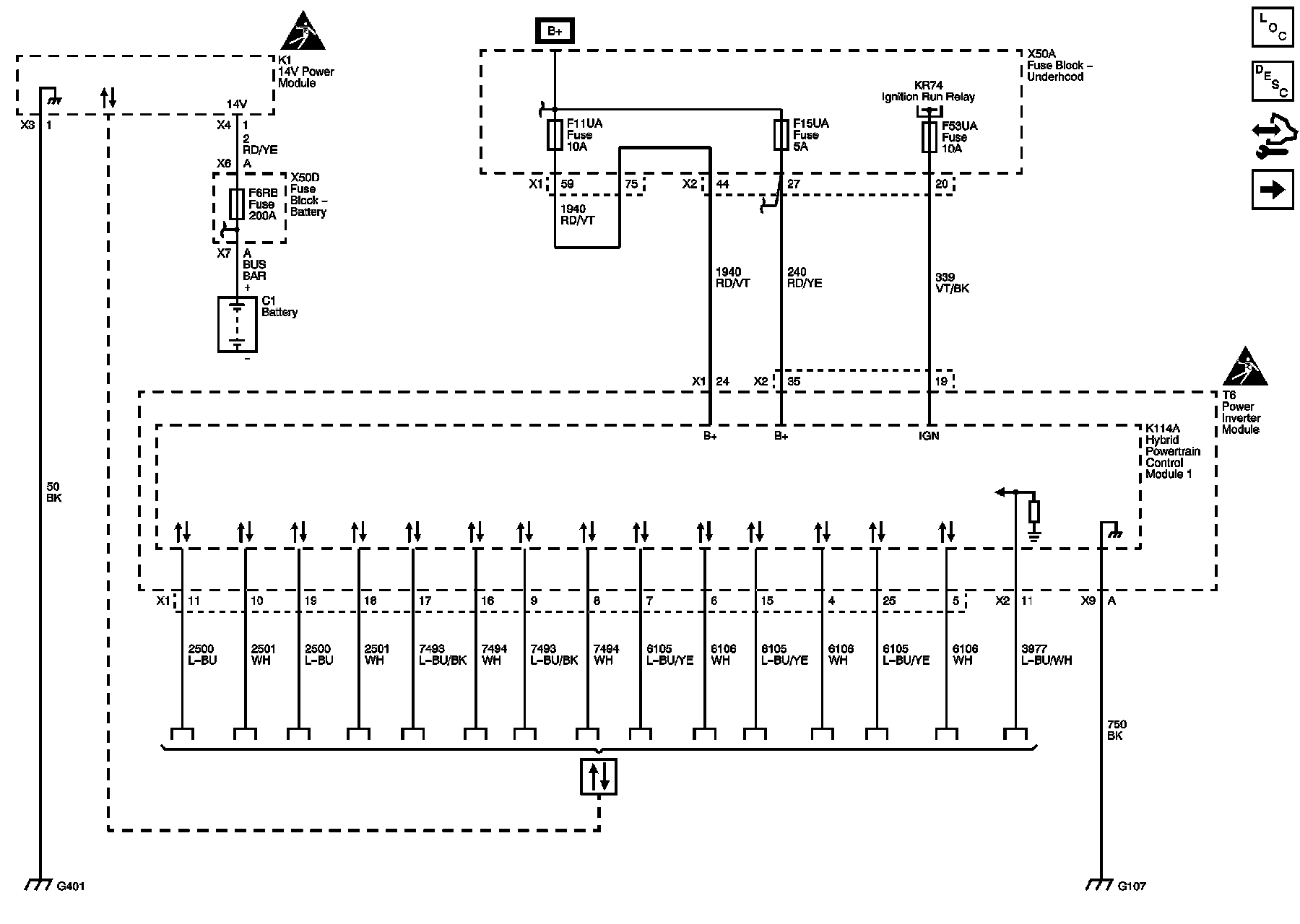

Power, Ground and Serial Data





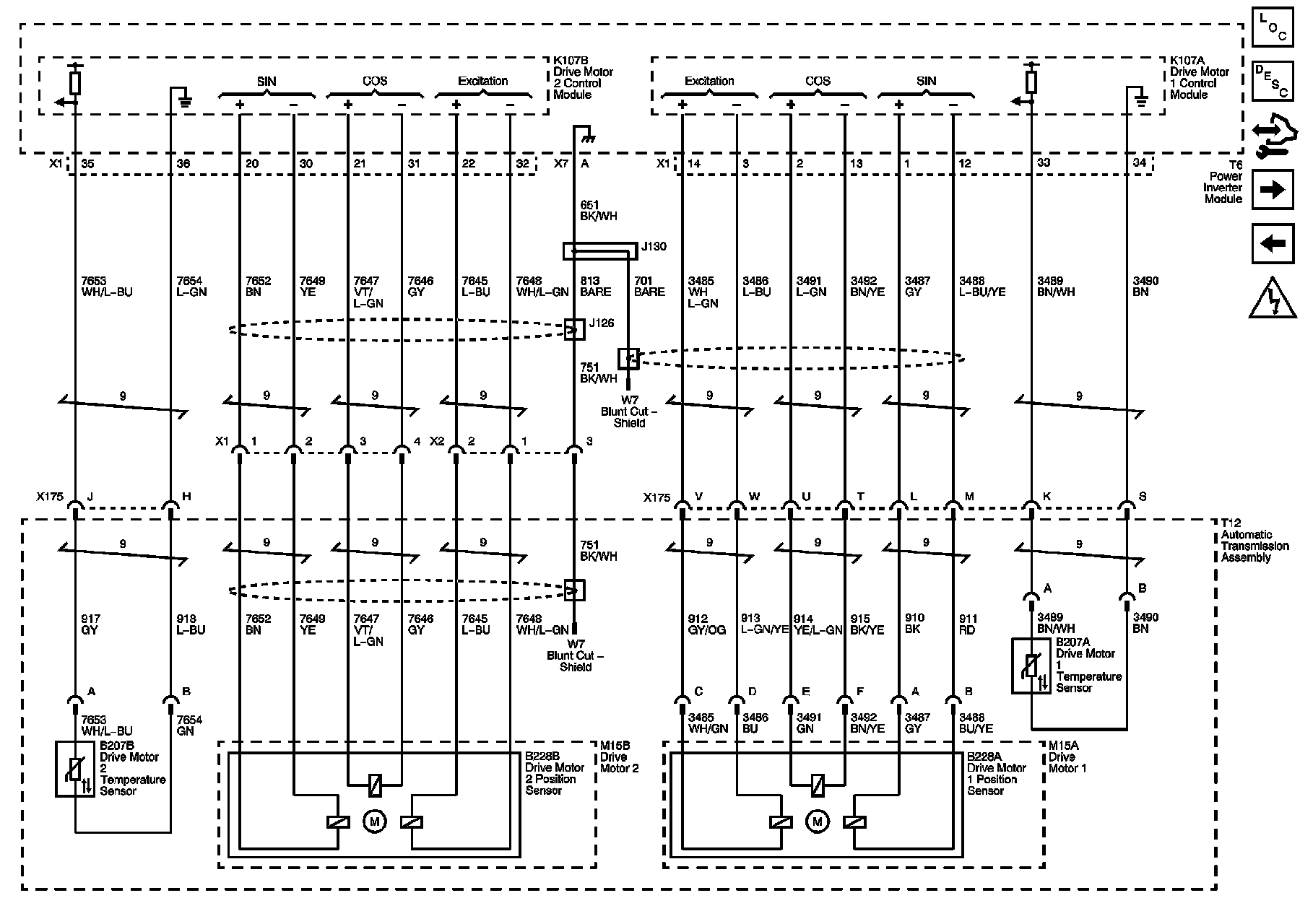

Drive Motors Monitoring

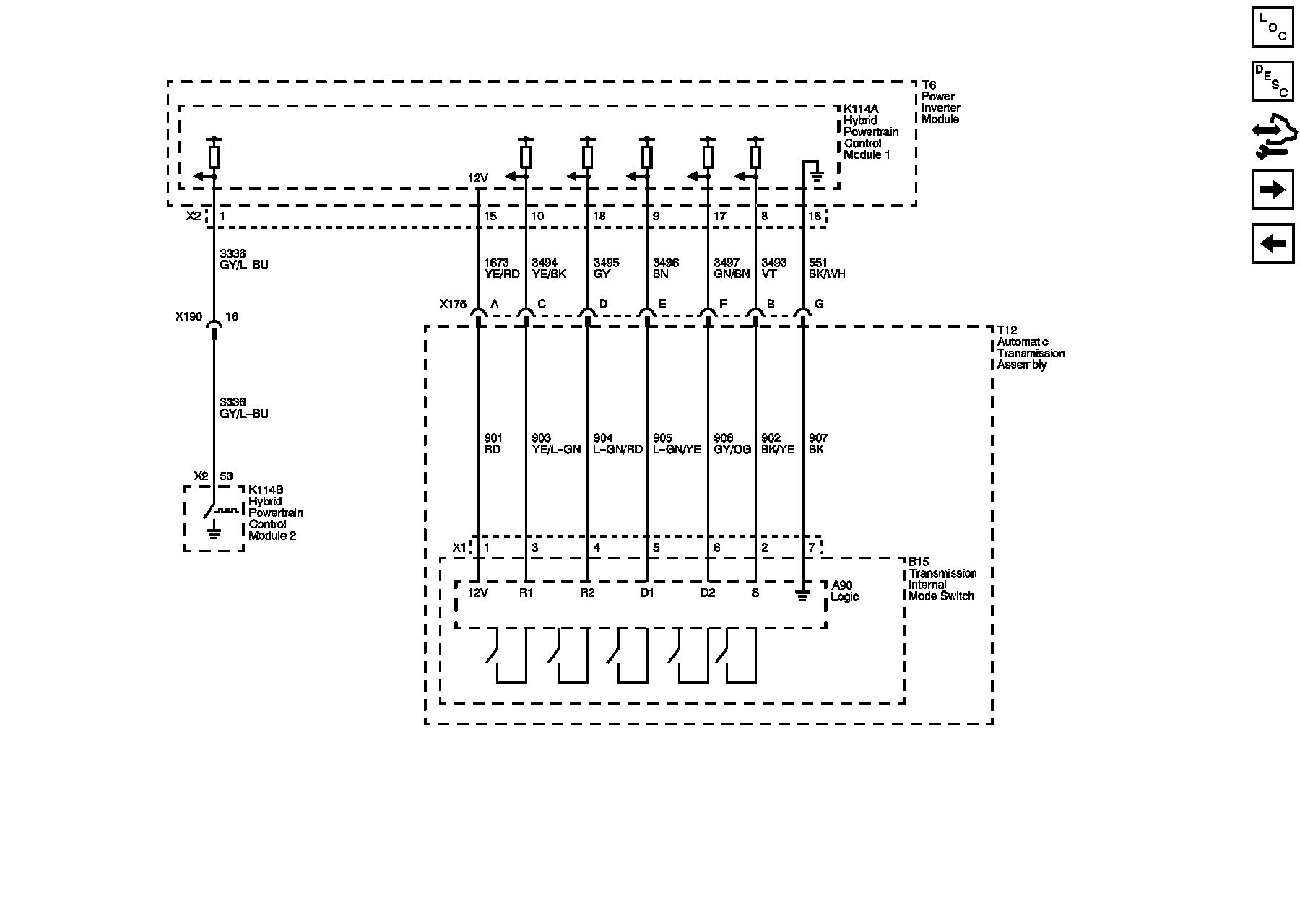

Transmission Internal Mode Switch

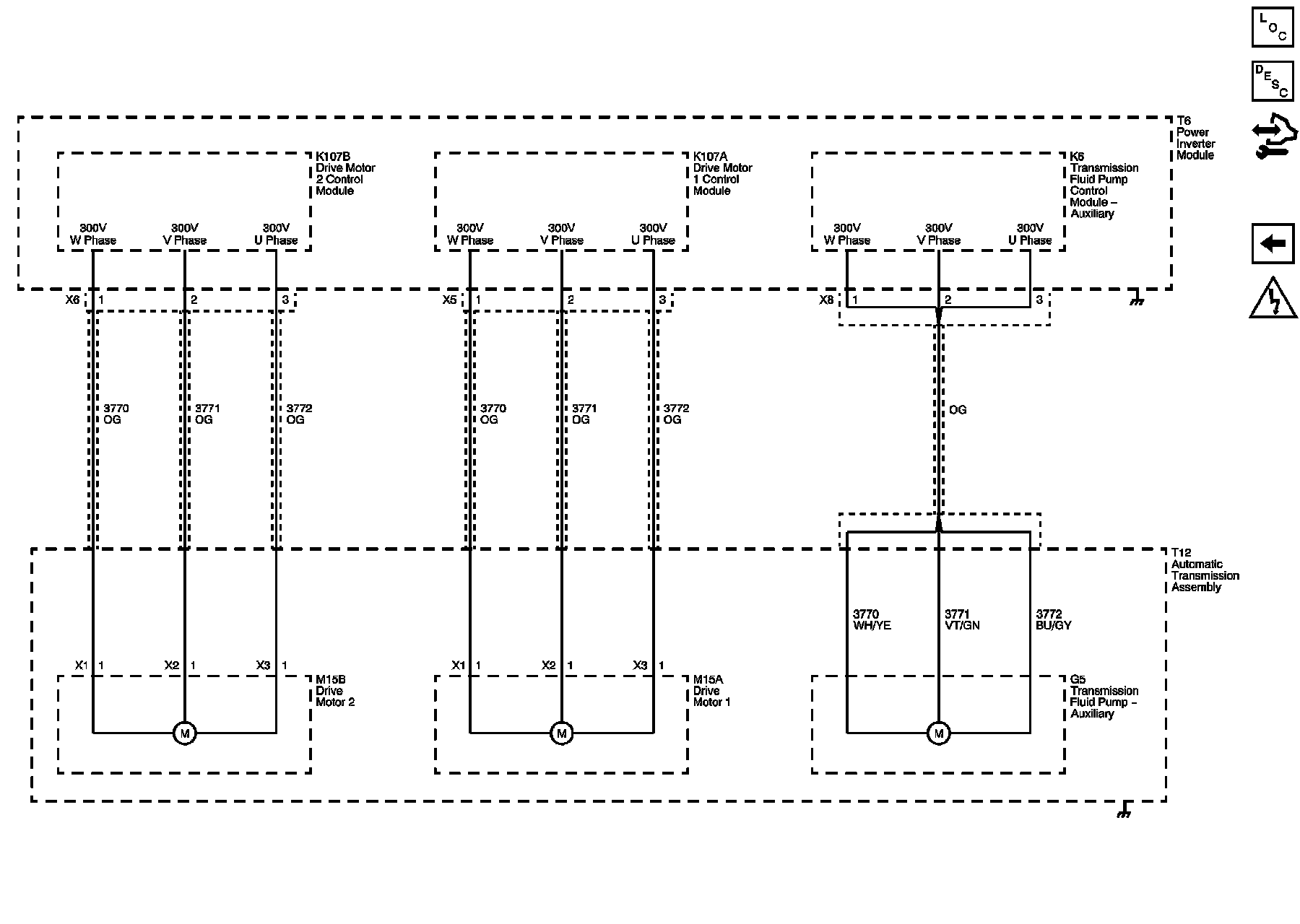

Drive Motors and Transmission Fluid Pump Controls
