Plug-In Charging Schematics

Plug-In Charging Schematics

Charging Port Door

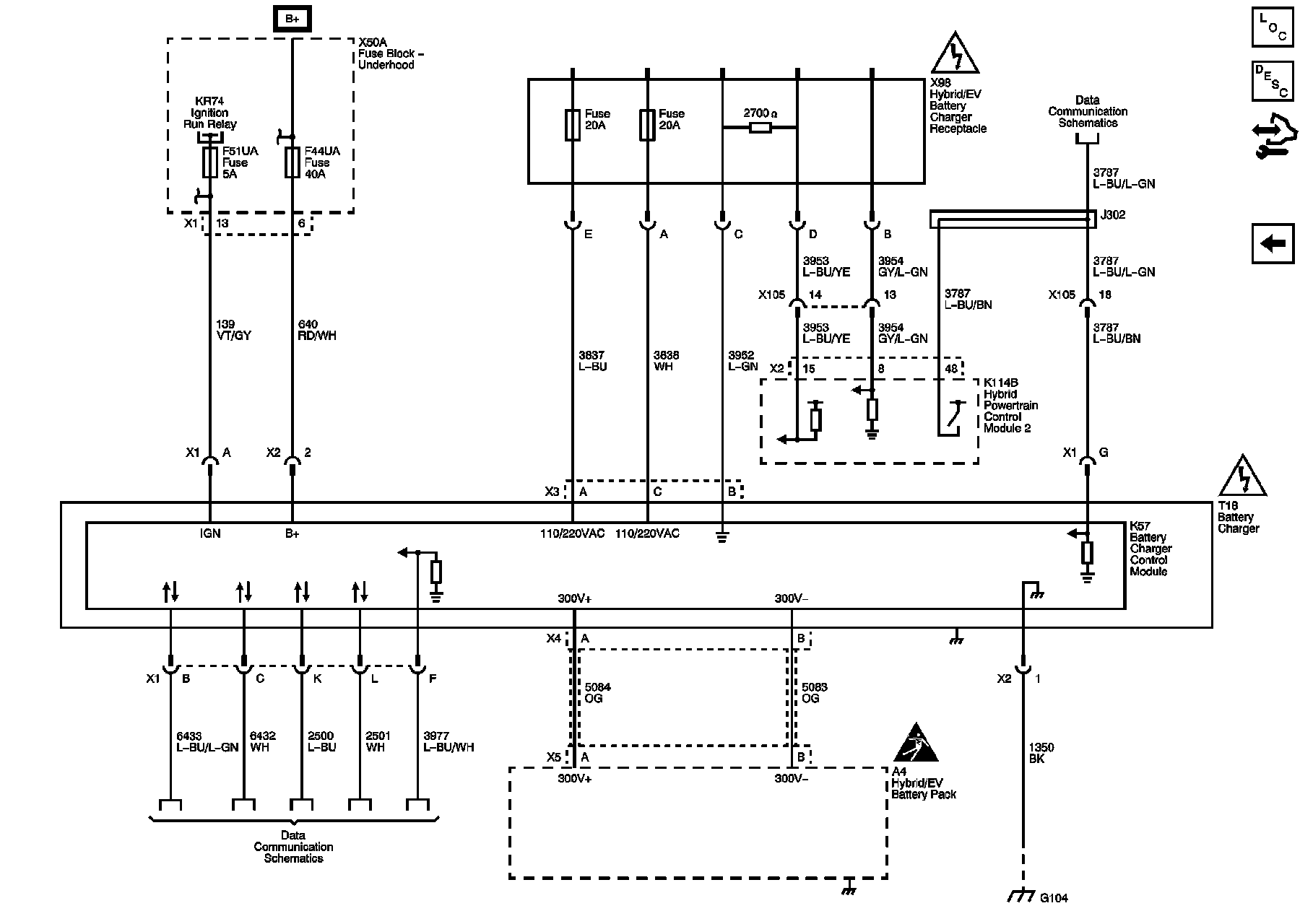

Battery Charger

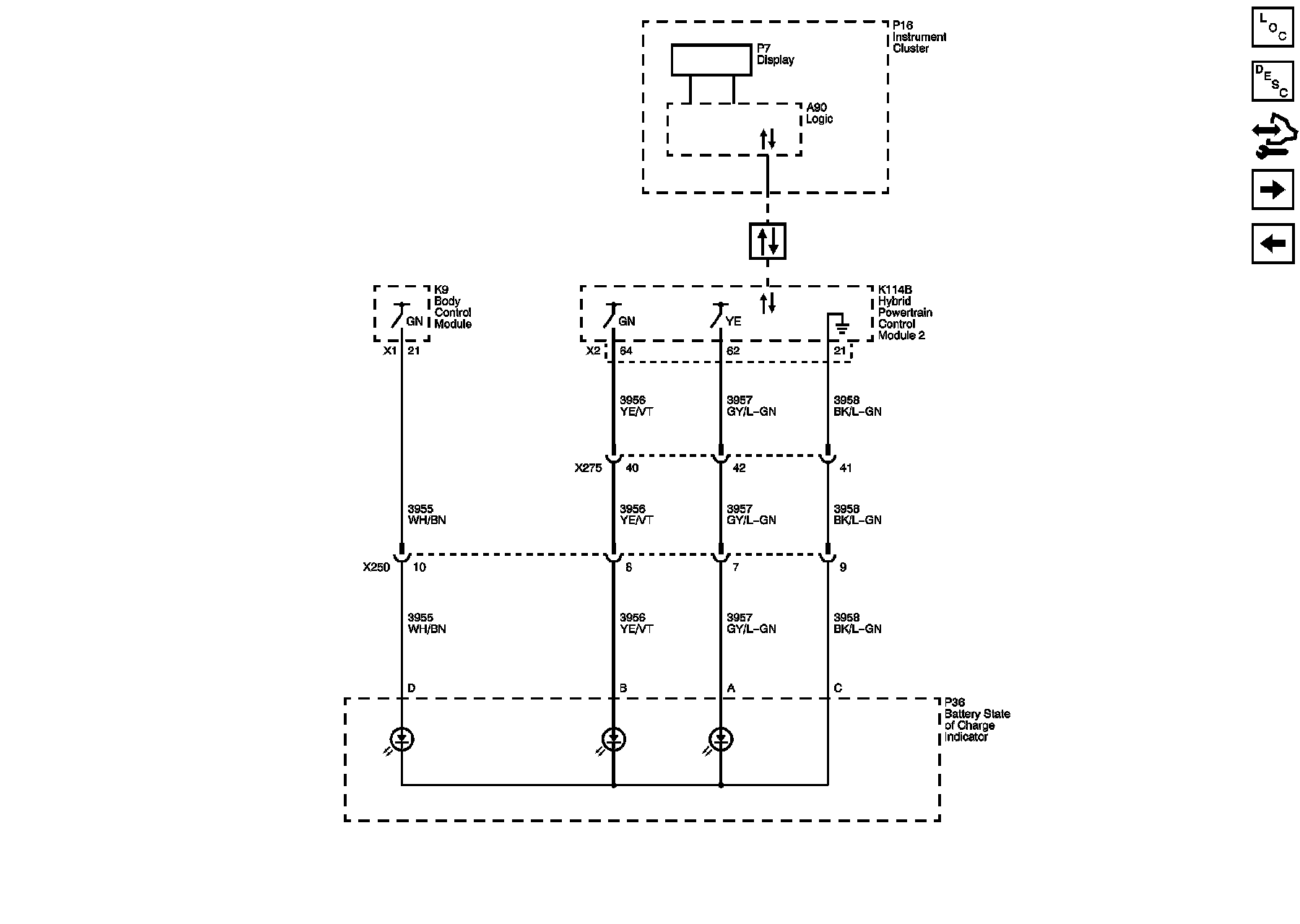

Battery State of Charge
