Hybrid Energy Storage Schematics
Hybrid Energy Storage Schematics

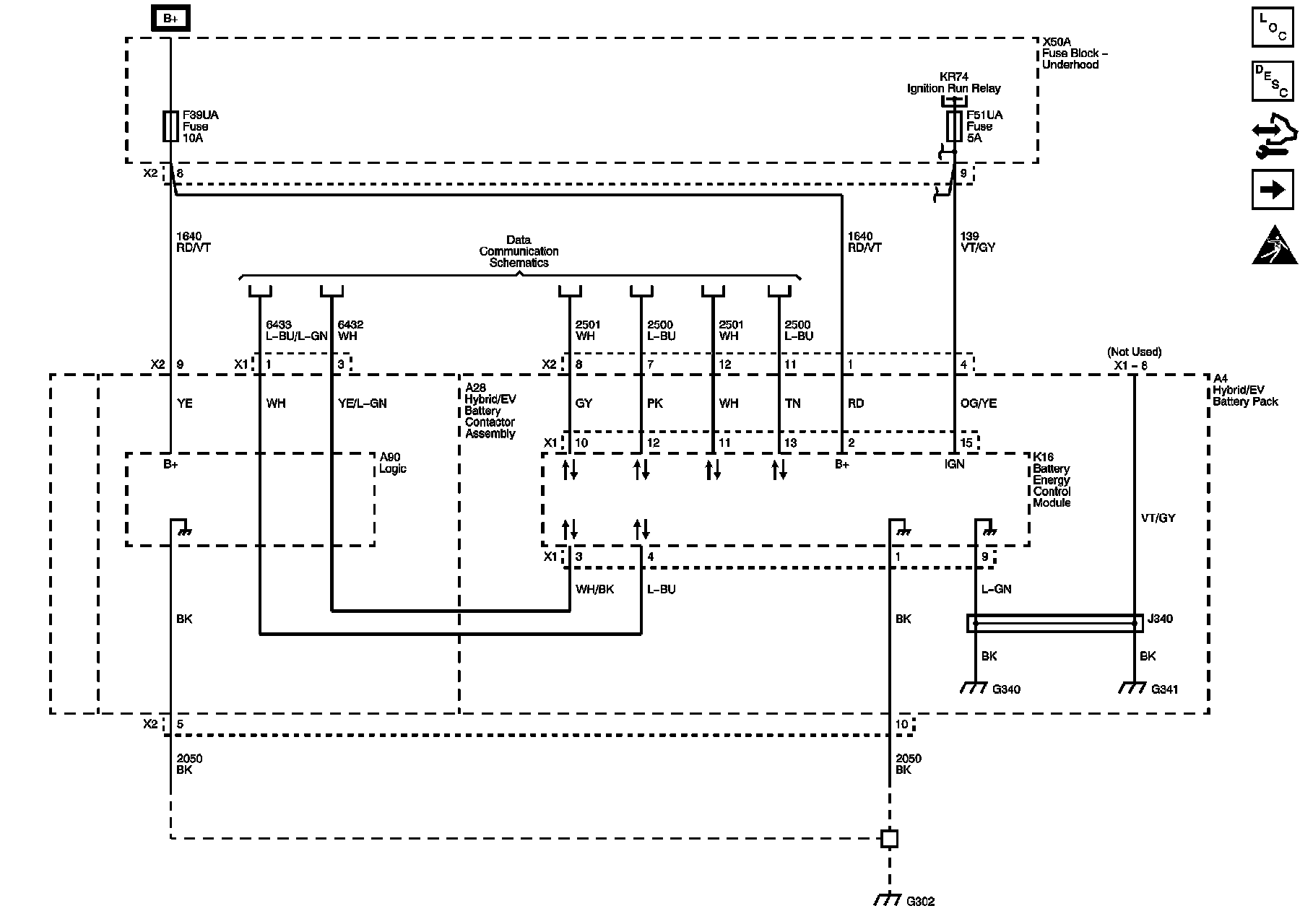

Battery Energy Control Module Power, Ground and Serial Data
K114B Hybrid Powertrain Control Module Power, Ground, and Internal Battery Communication

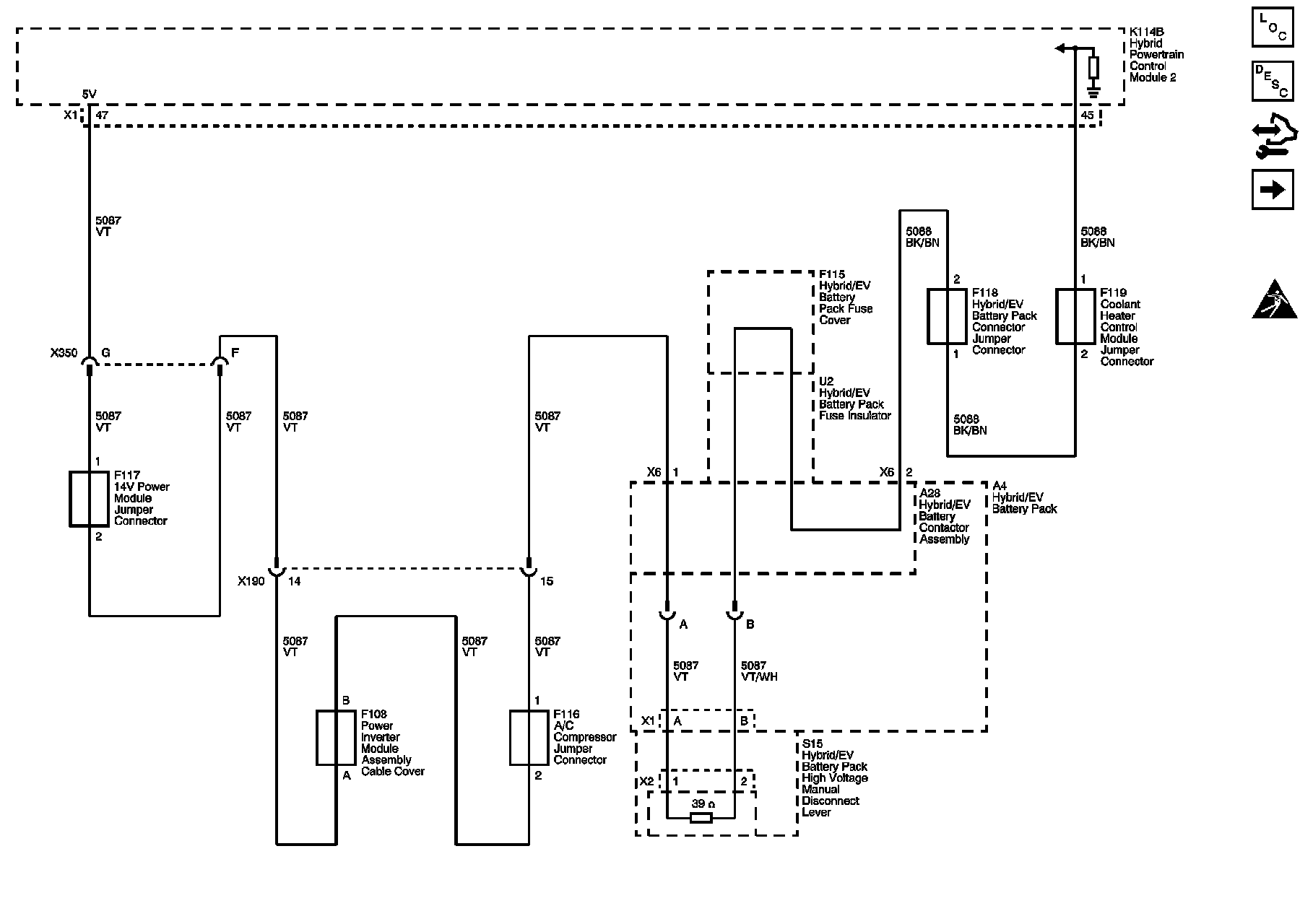

High Voltage Interlock Loop - Main

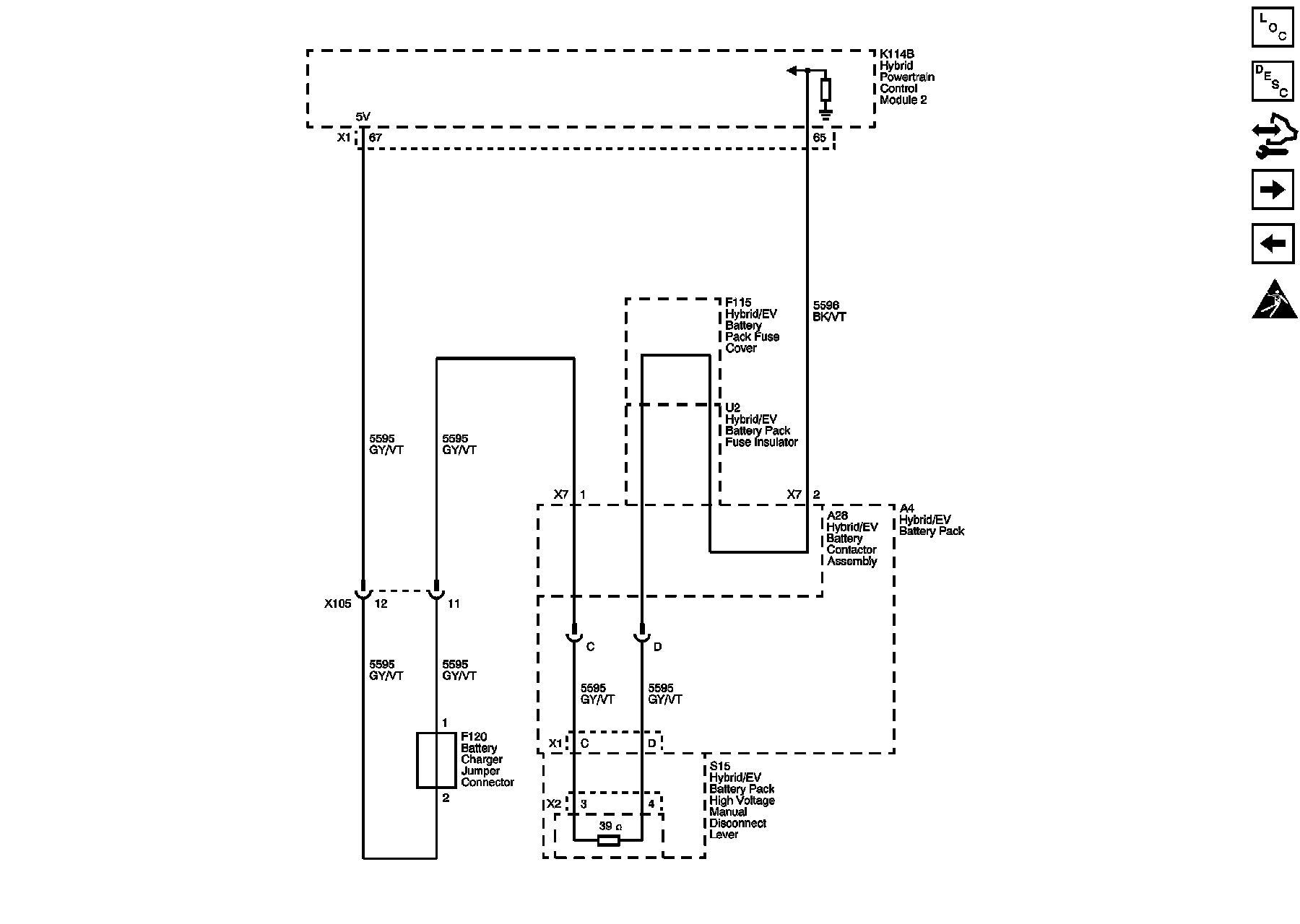

High Voltage Interlock Loop - Charging

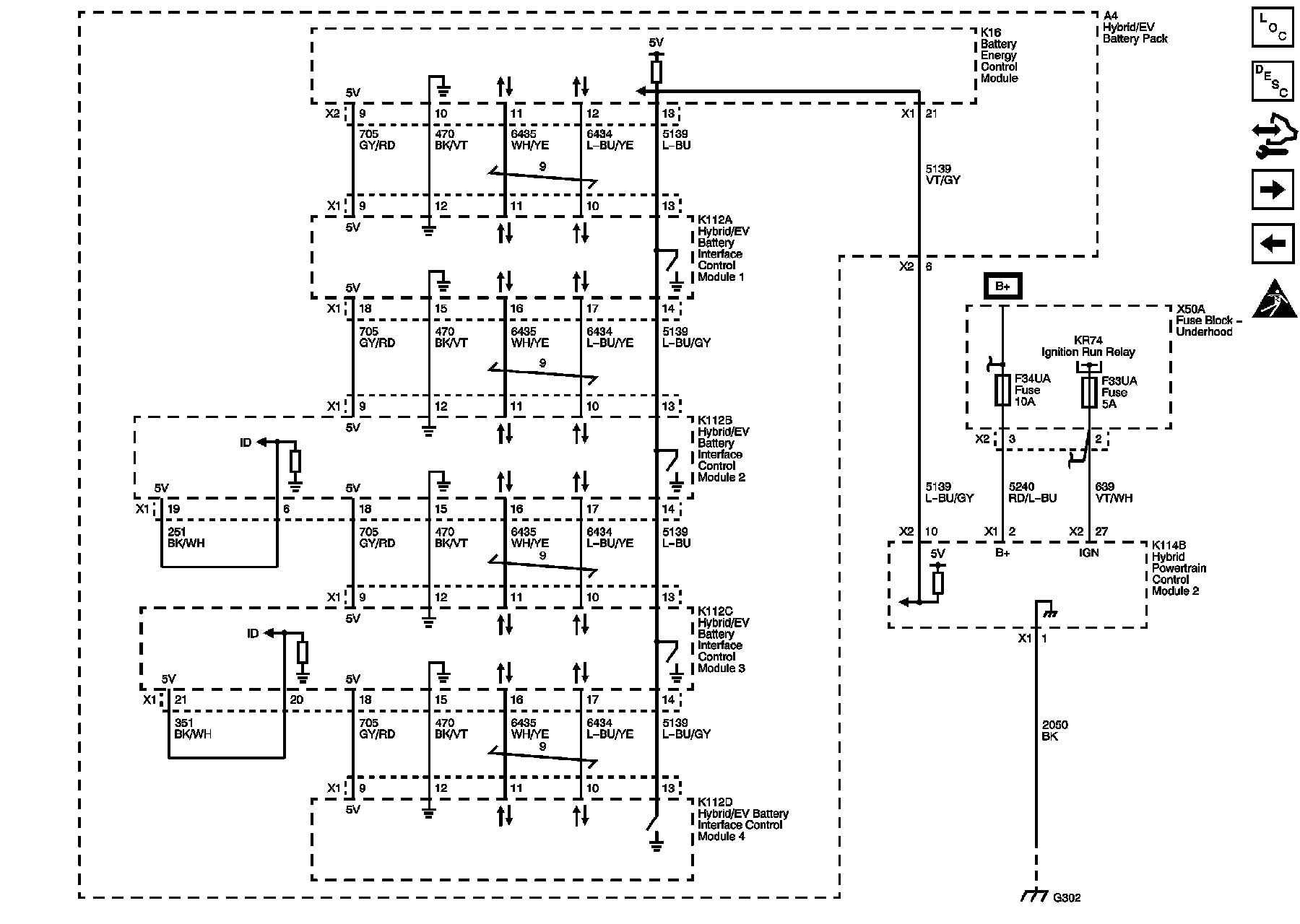

High Voltage Contactors - Control

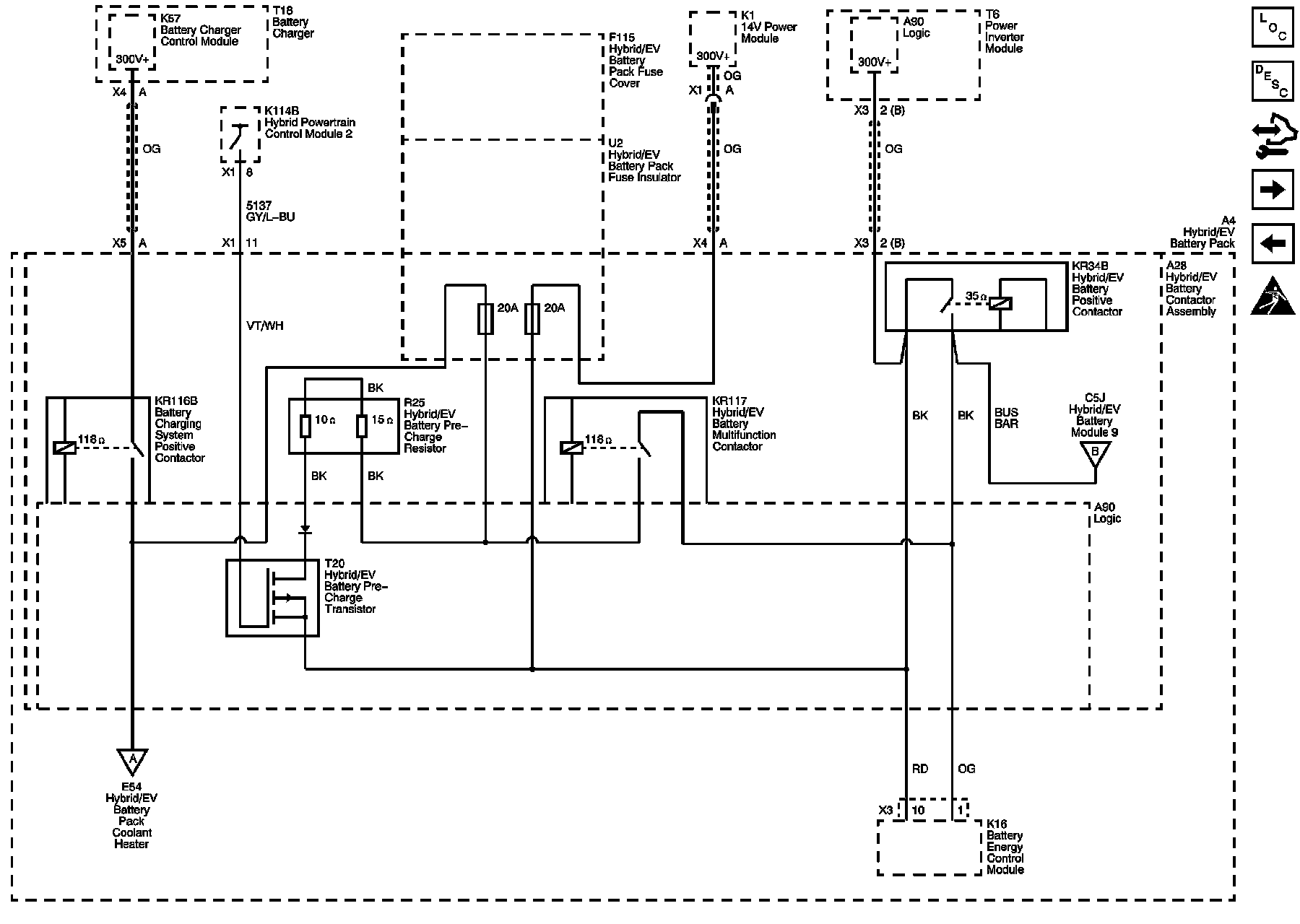

High Voltage Contactors - High Voltage Positive

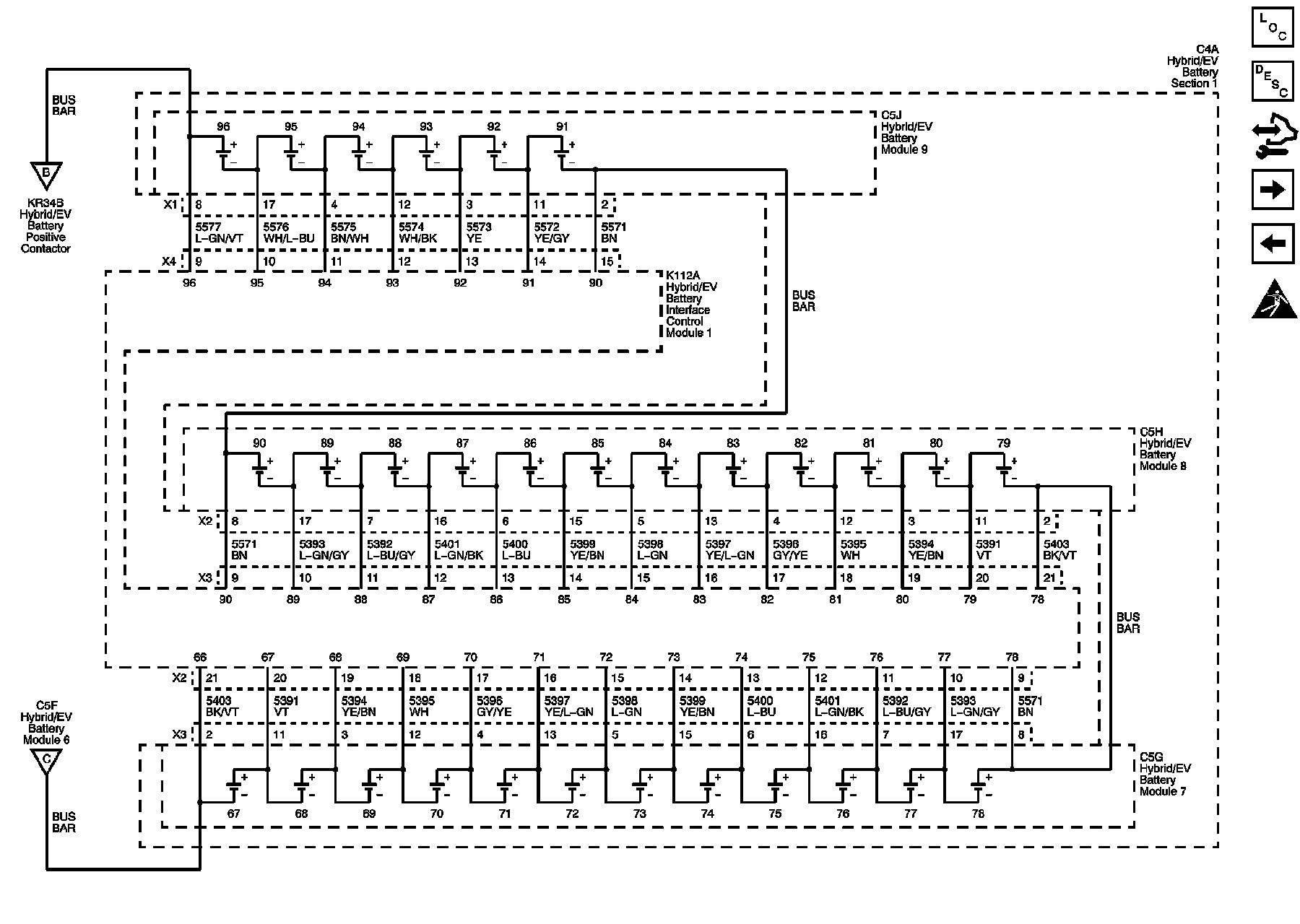

Hybrid/EV Battery Section 1

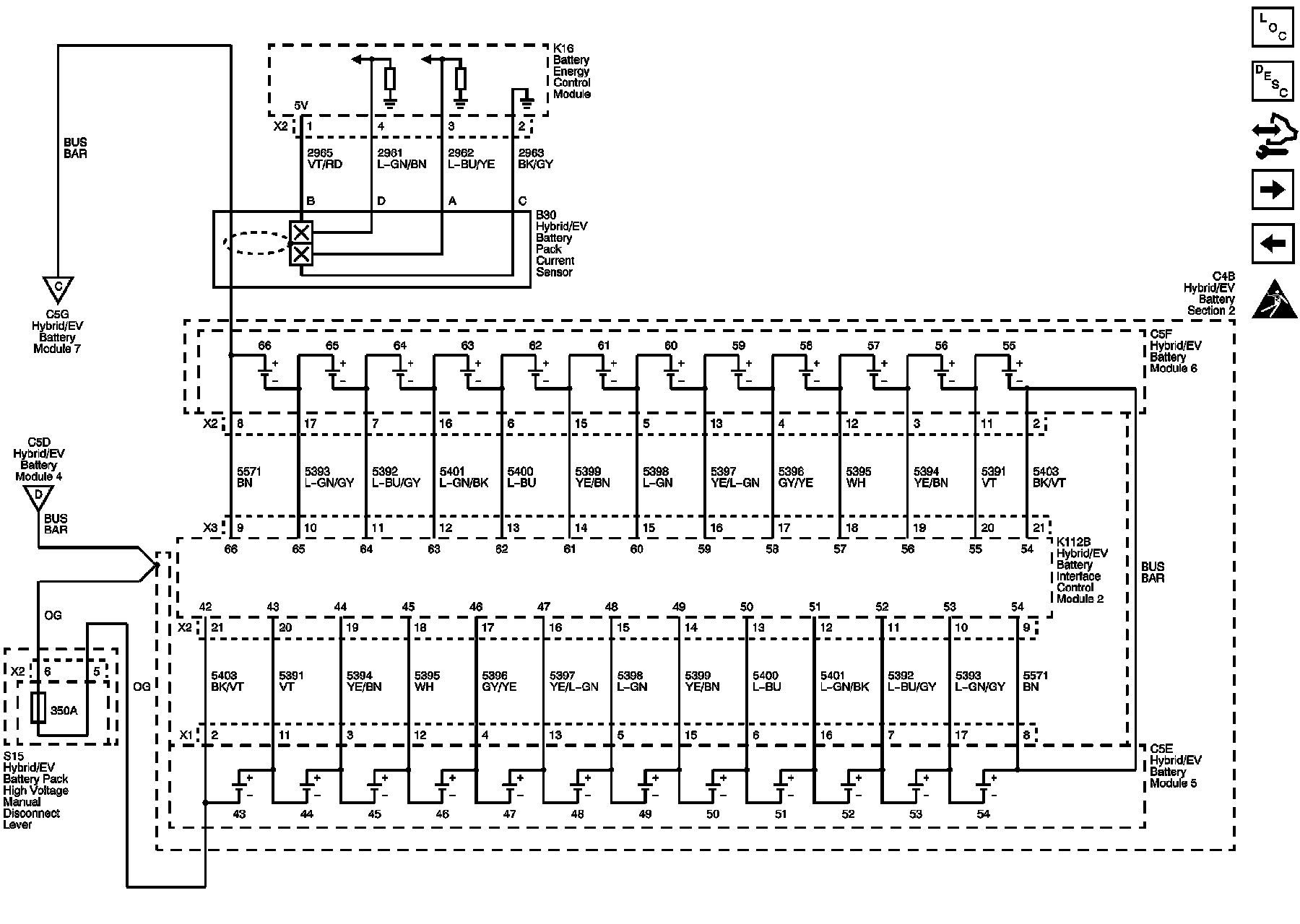

Hybrid/EV Battery Section 2

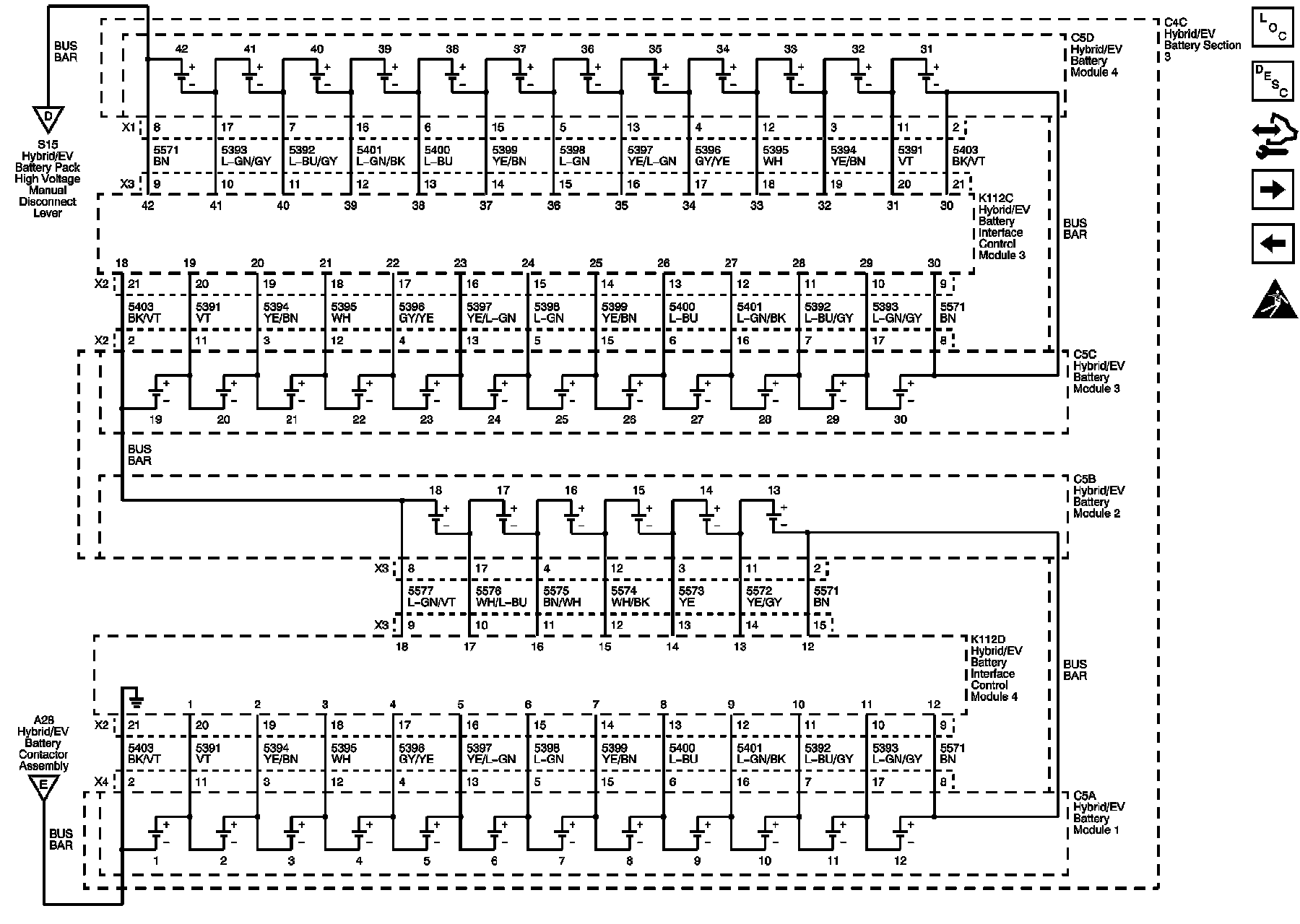

Hybrid/EV Battery Section 3

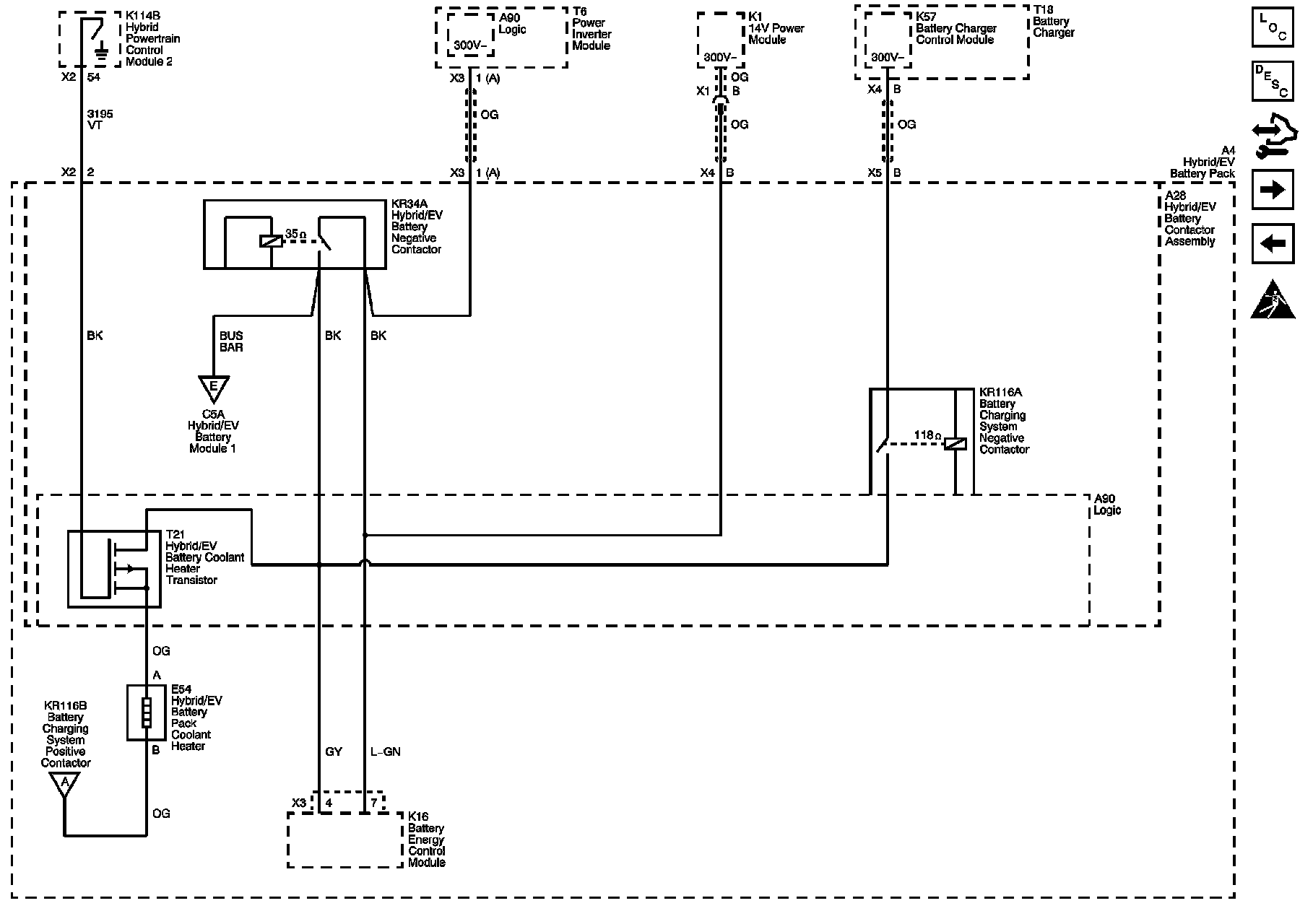

High Voltage Contactors - High Voltage Negative
