System Diagram




Automatic Transmission Controls Schematics

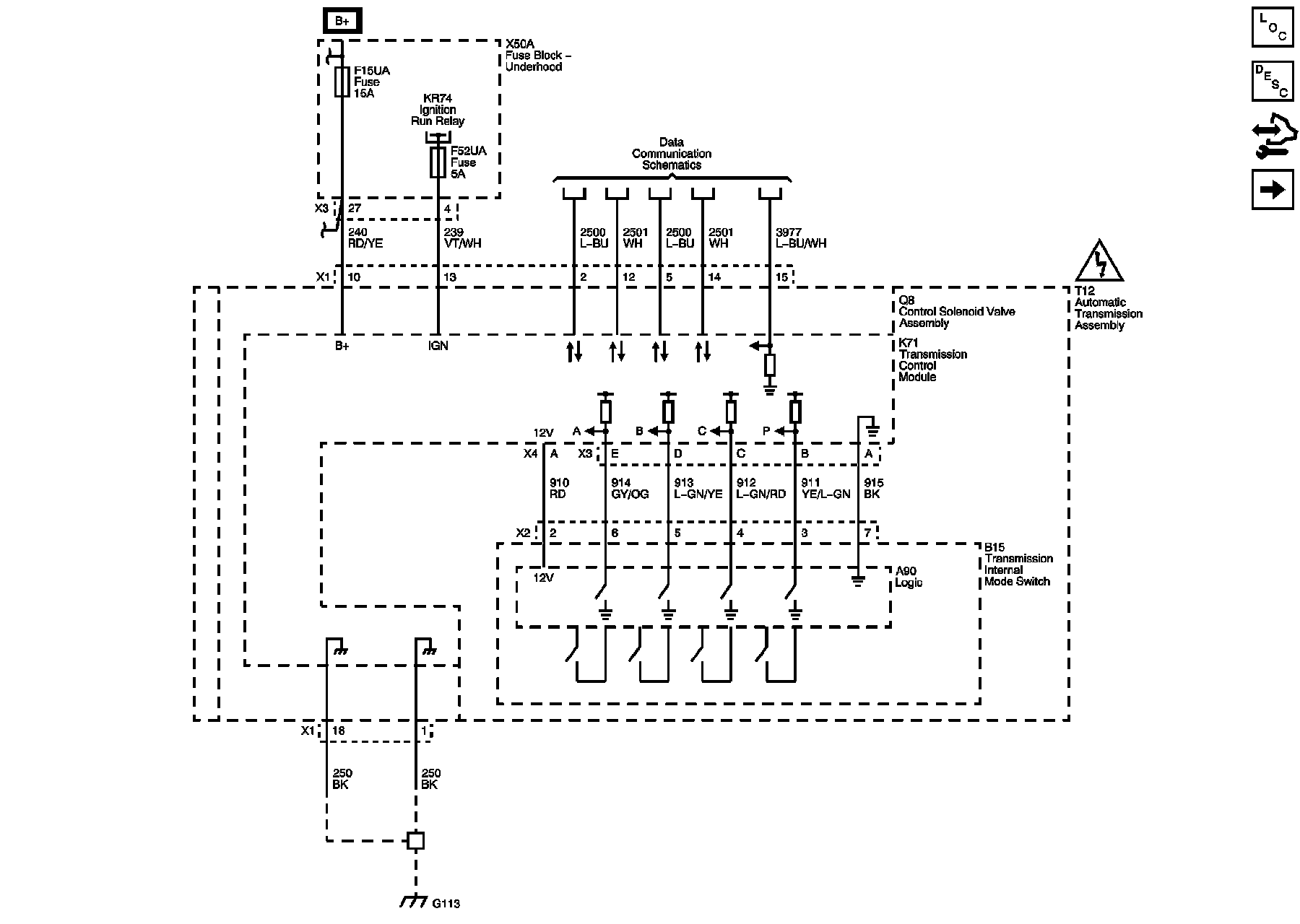

Internal Mode Switch





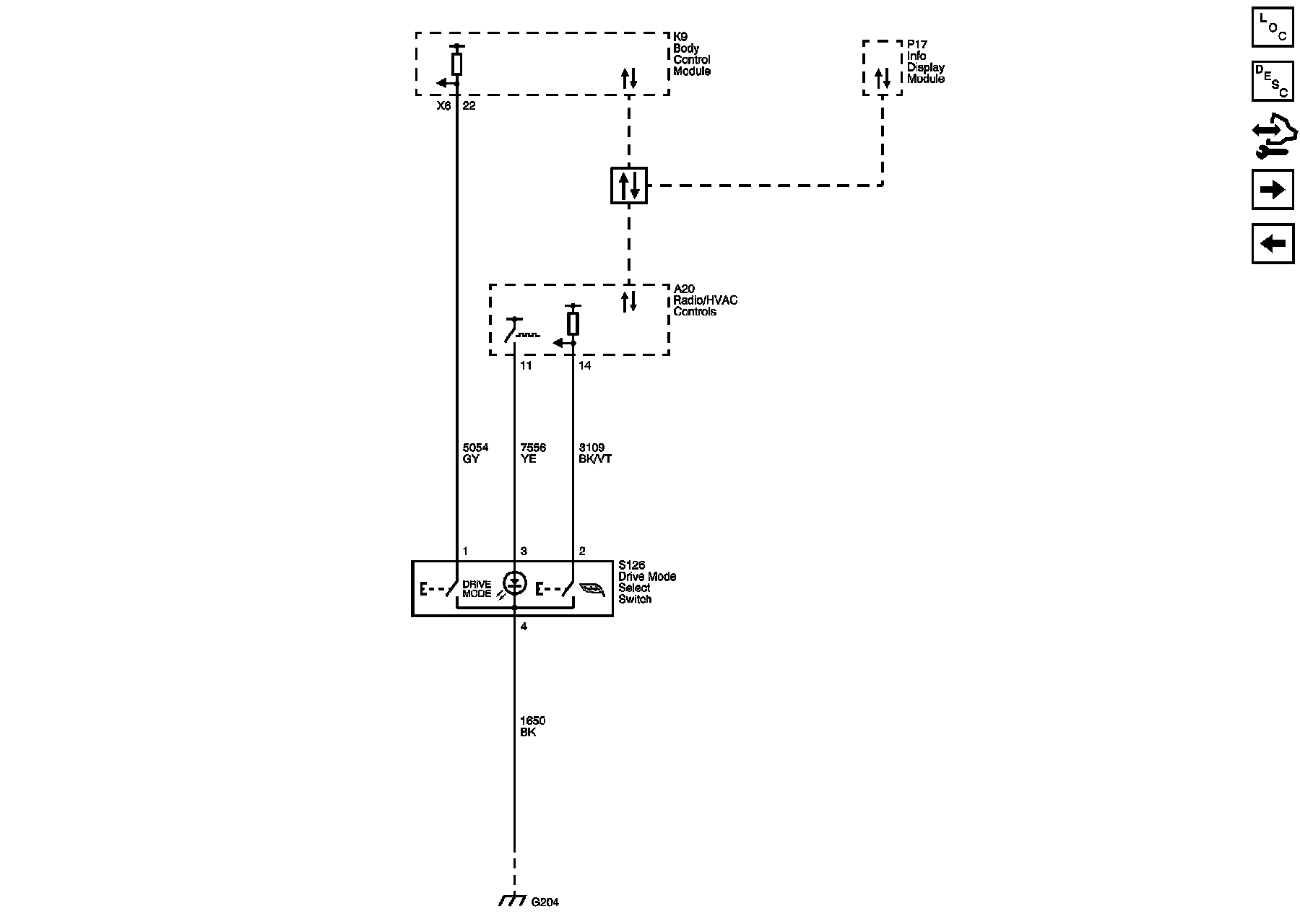

S109 Sport Mode Switch

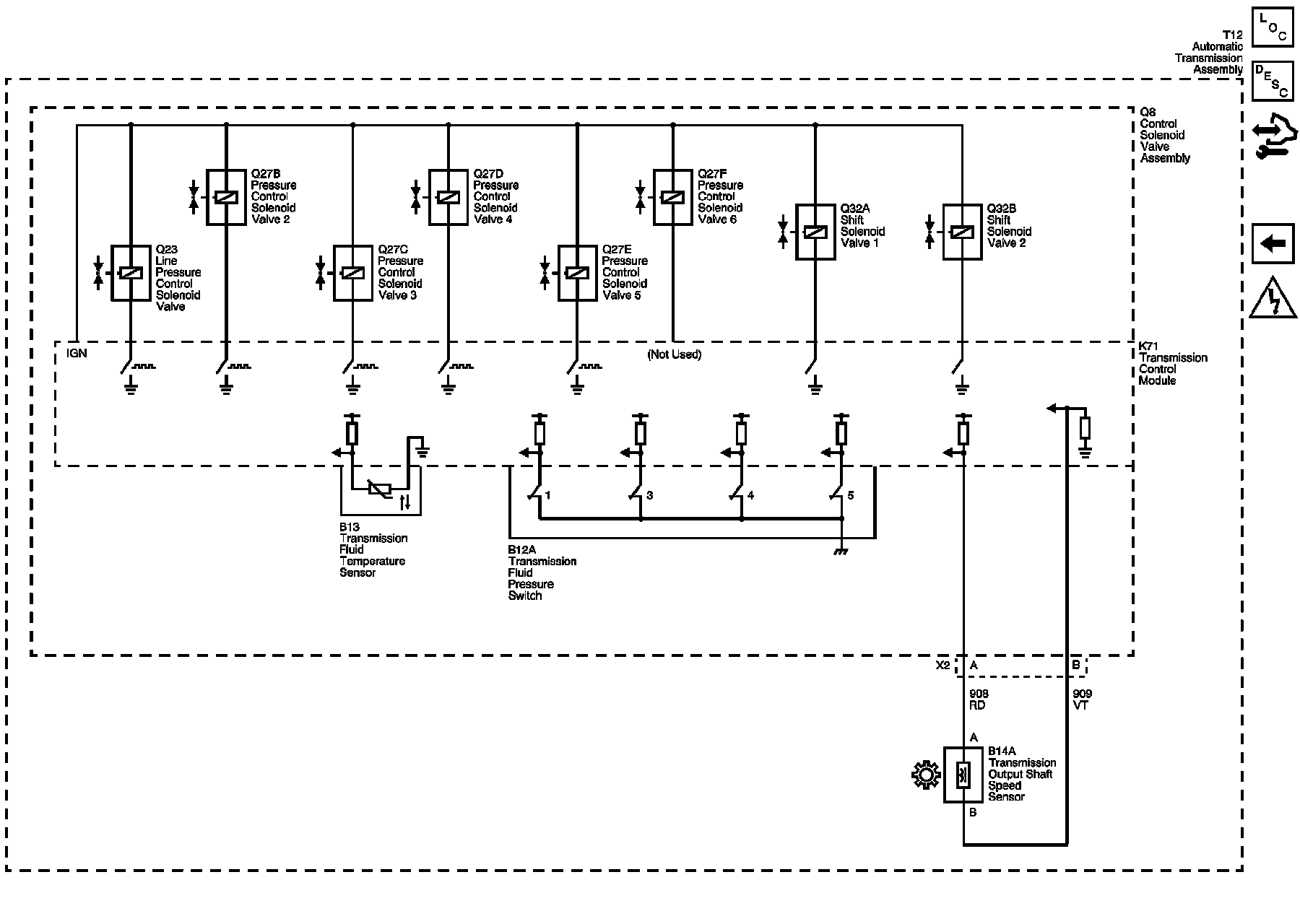

Pressure Controls, Shift Controls and Speed Sensor
