Radio/Navigation System Schematics




Radio/Navigation System Schematics

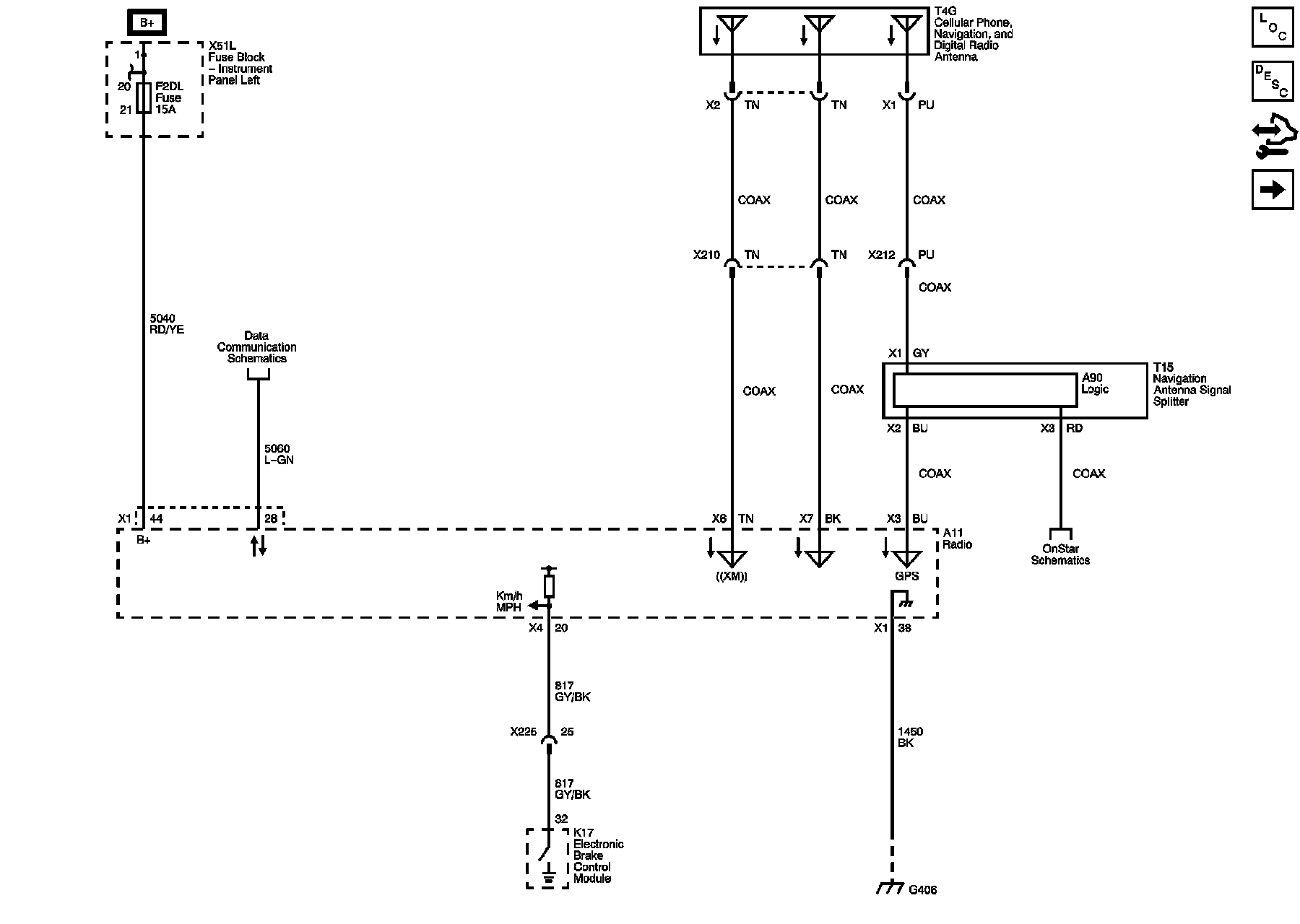

Power, Ground, Antennas and Serial Data

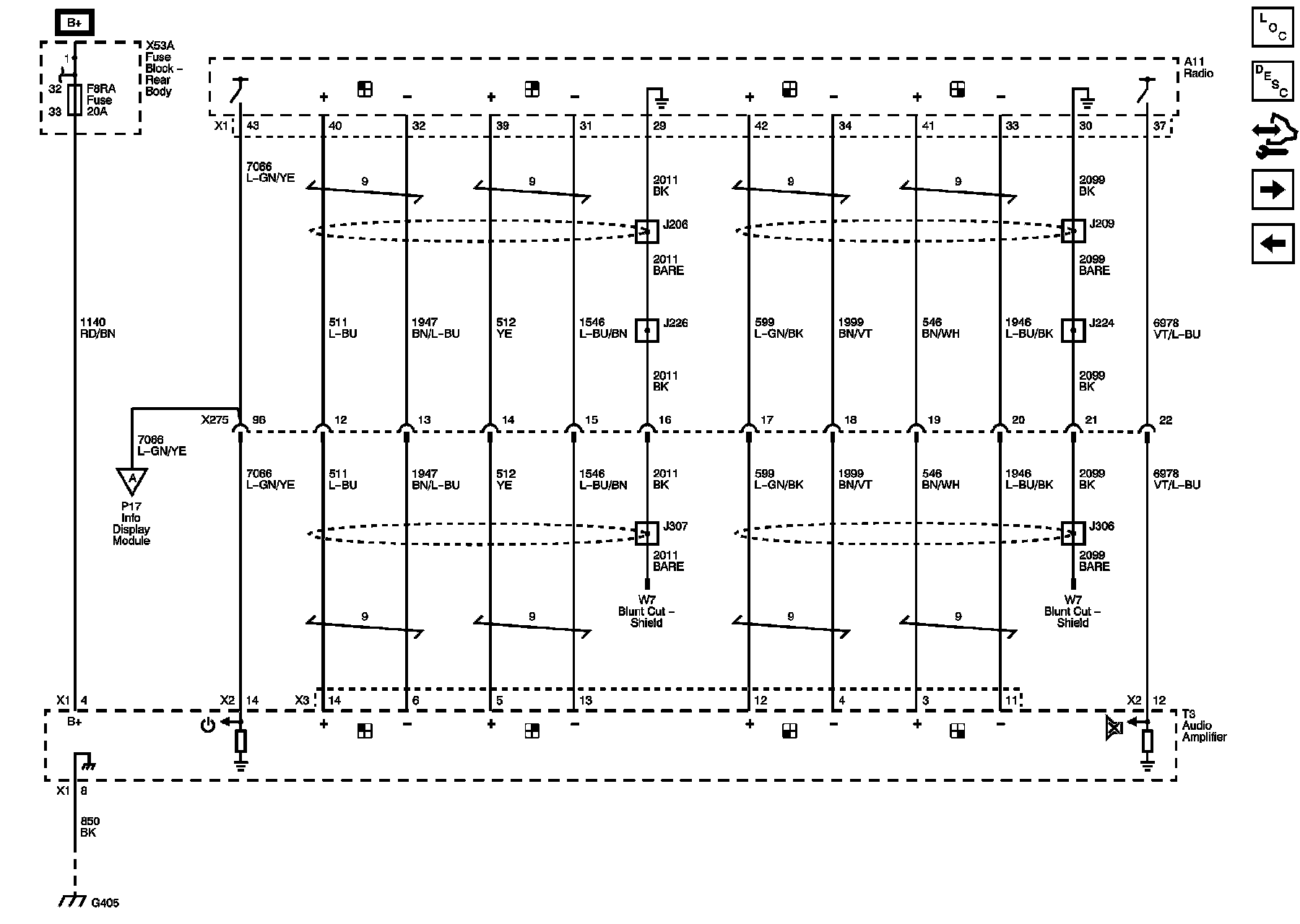

Amplifier Inputs (UQA)

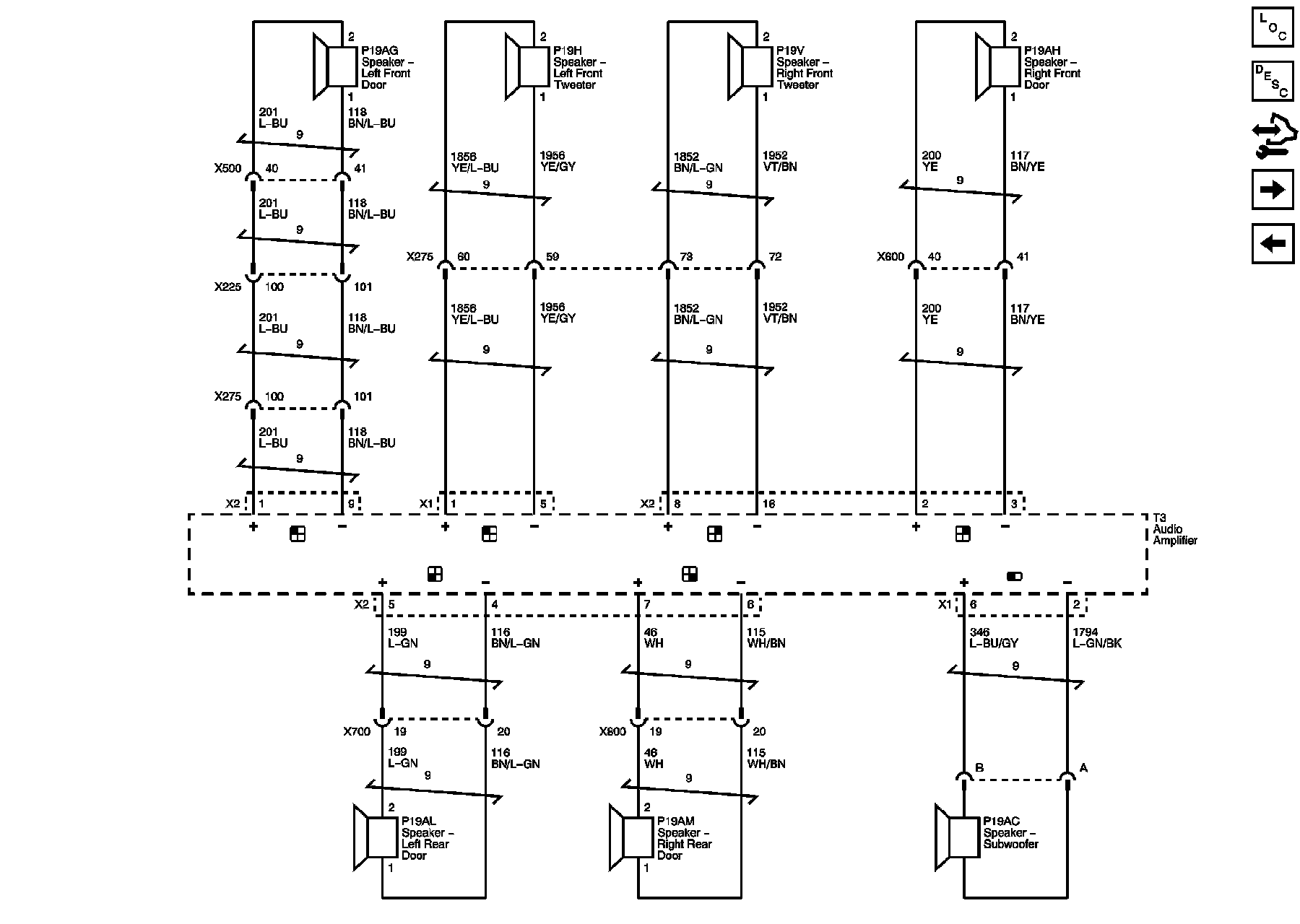

Speakers (UQA)

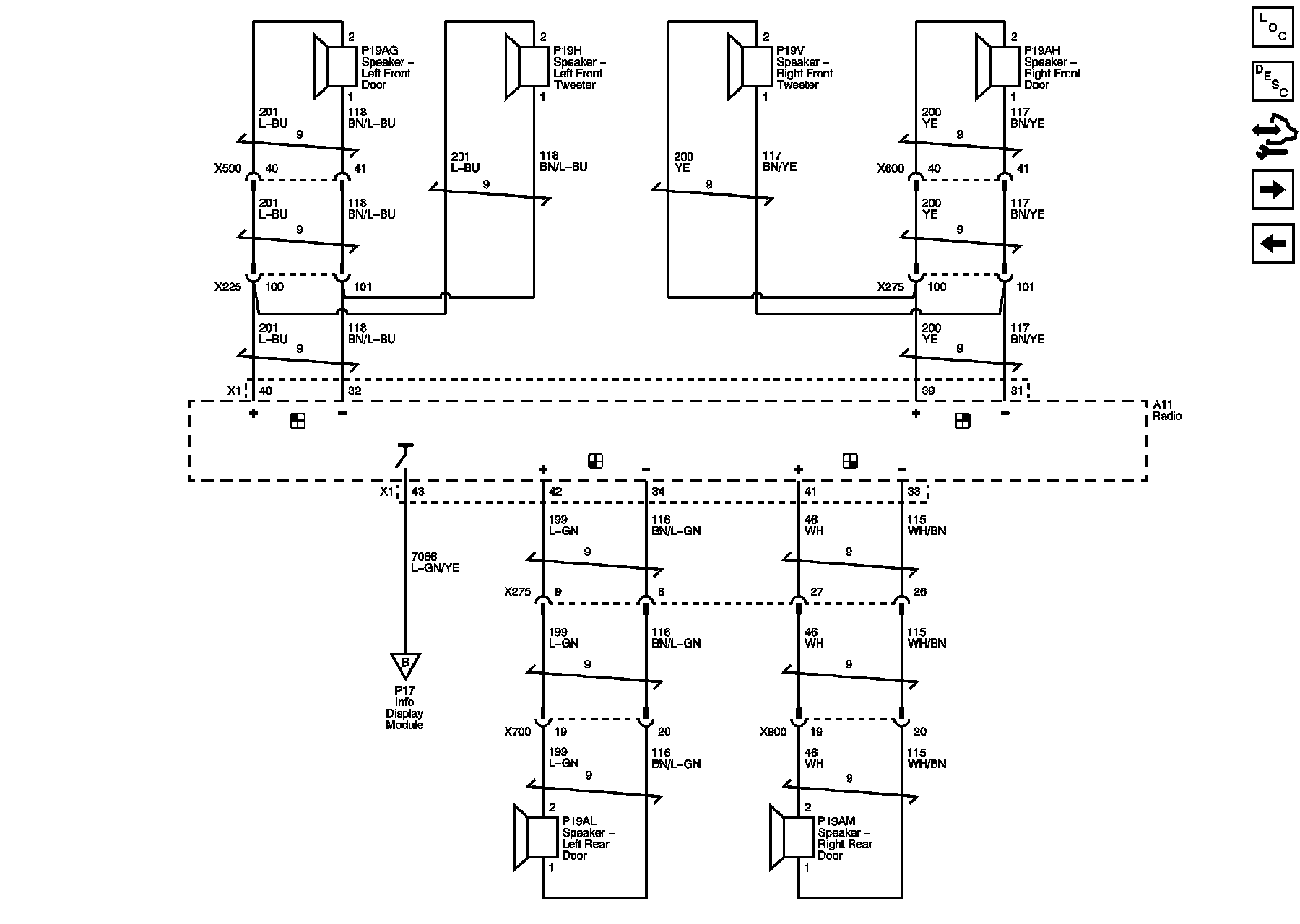

Speakers (UZ6)

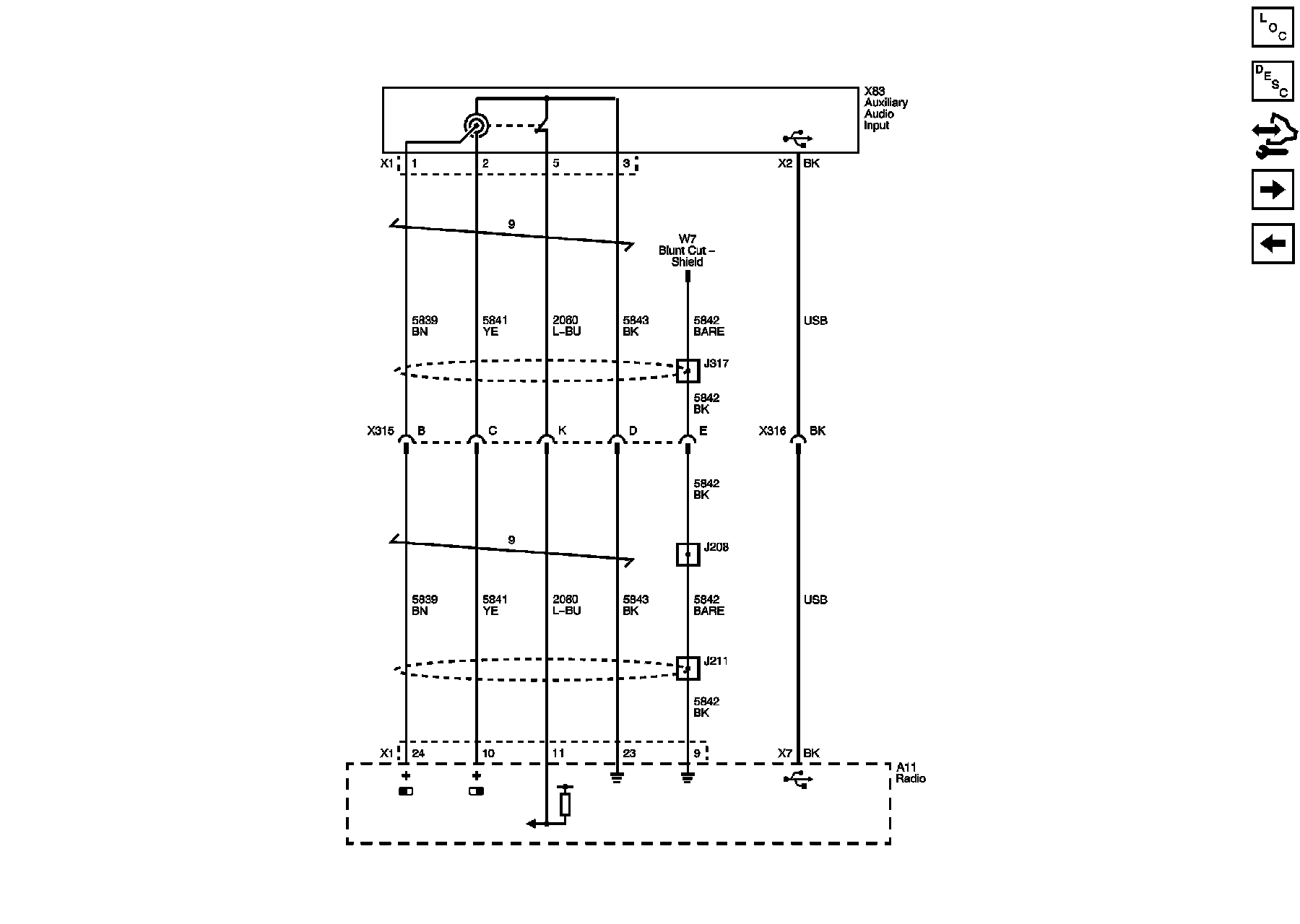

Auxiliary Audio Input

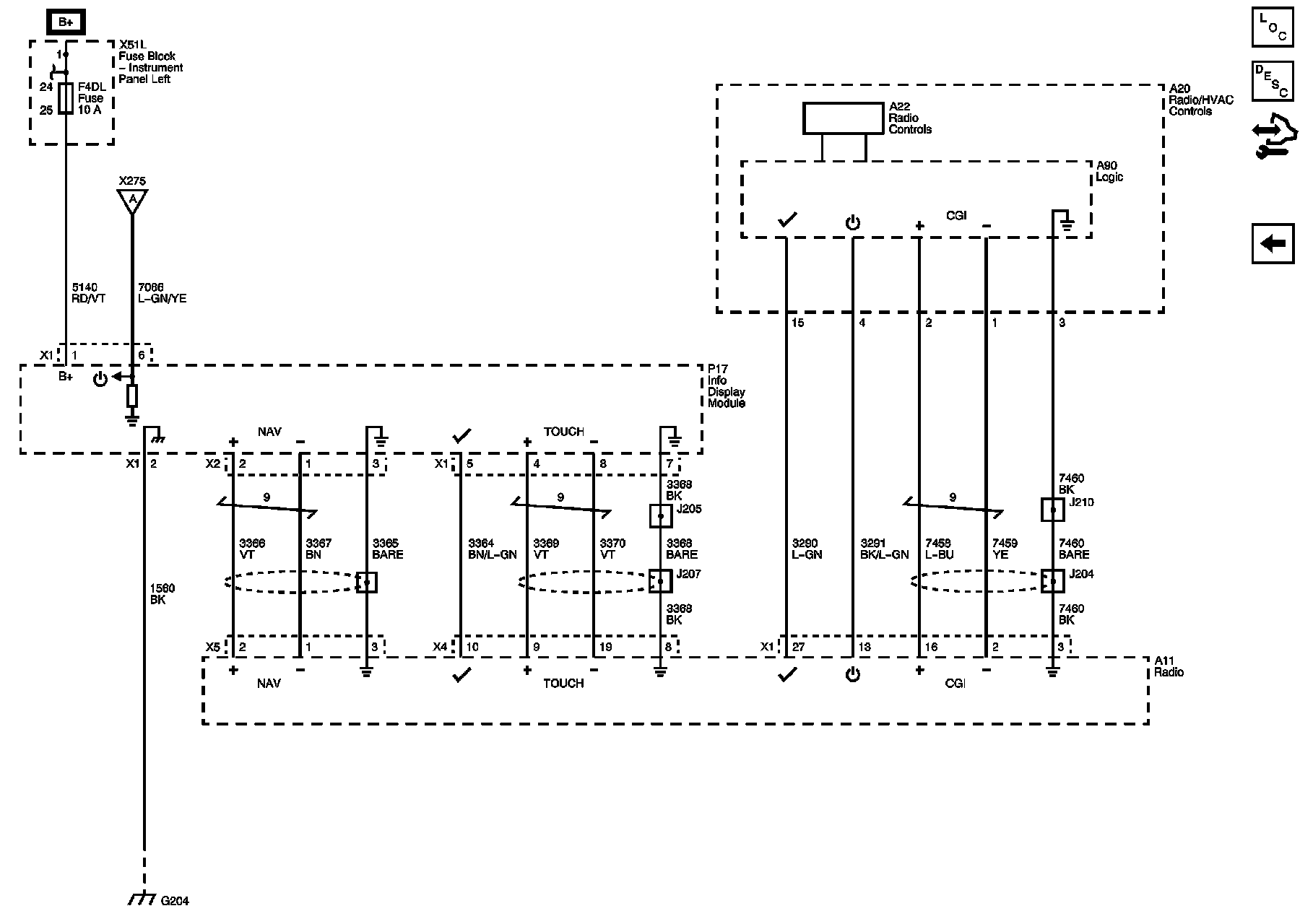

Info Display
