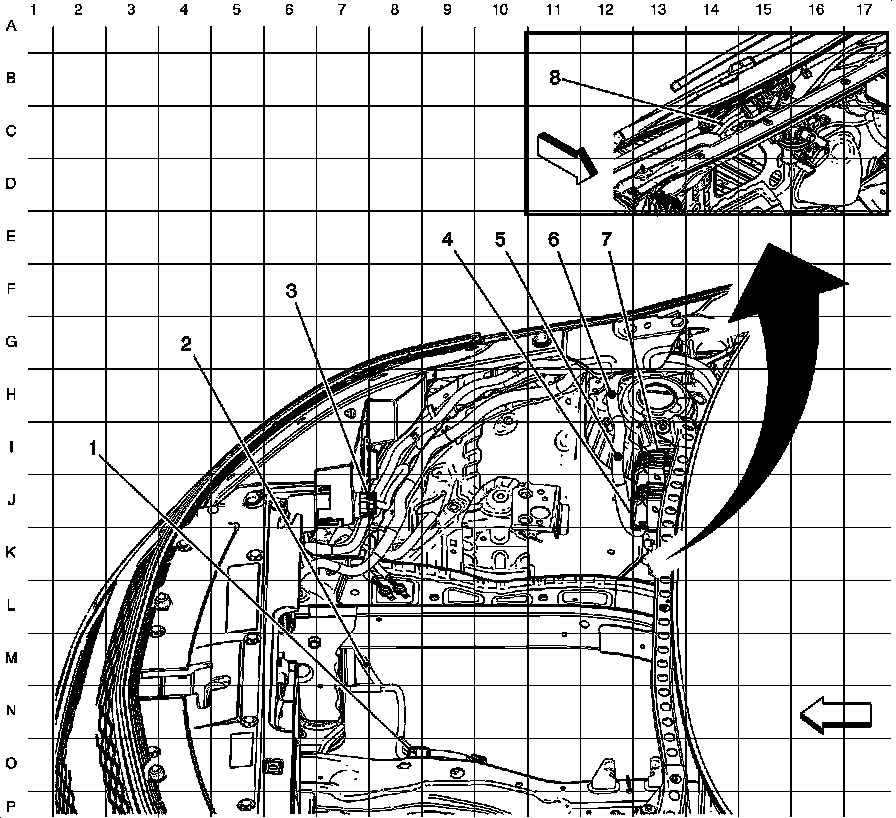

Right Side of Engine Compartment Harness Routing

Harness Routing Views

Right Side of Engine Compartment Harness Routing





1 - X180

2 - J106

3 - X120

4 - X105

5 - J107

6 - J108

7 - X107

8 - J105
