Front Fascia Harness Routing




Harness Routing Views

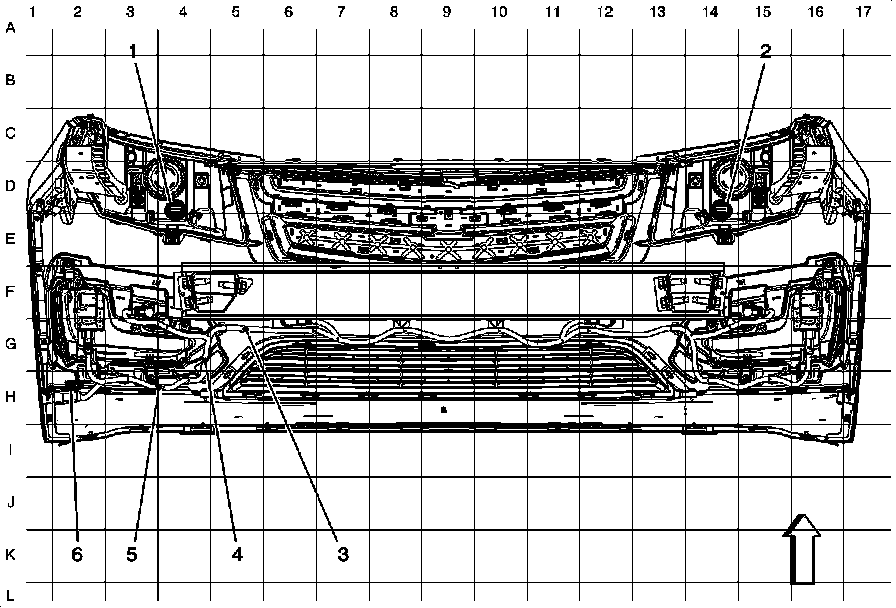

Front Fascia Harness Routing





1 - X110

2 - X120

3 - J102

4 - J101

5 - J100

6 - X100 (UD5) or X101 (without UD5)
