Chevrolet
>>
2013
>>
Volt L4-1.4L Elect
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Hybrid Drive Systems
>>
System Diagram
>>
Hybrid/EV Battery Contactor Assembly X1
Hybrid/EV Battery Contactor Assembly X1

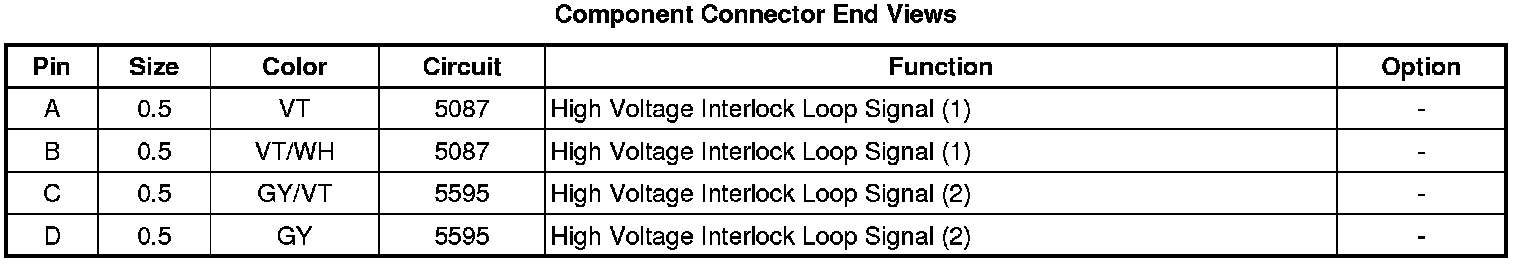

Component Connector End Views
A28 Hybrid/EV Battery Contactor Assembly X1
