Charge Port Door Unlatch Actuator

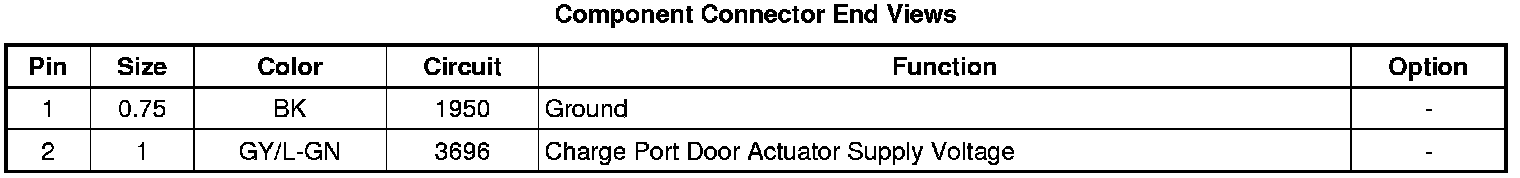

Component Connector End Views

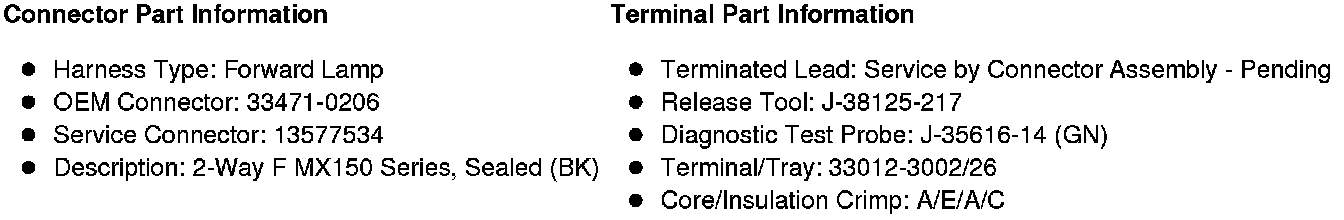

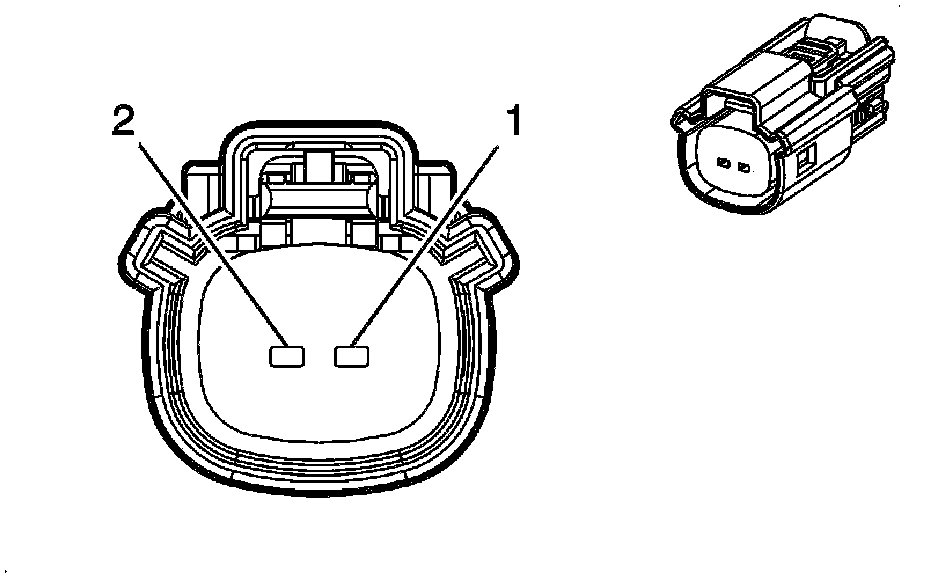

M80 Charge Port Door Unlatch Actuator
