Drive Motor 1 Temperature Sensor

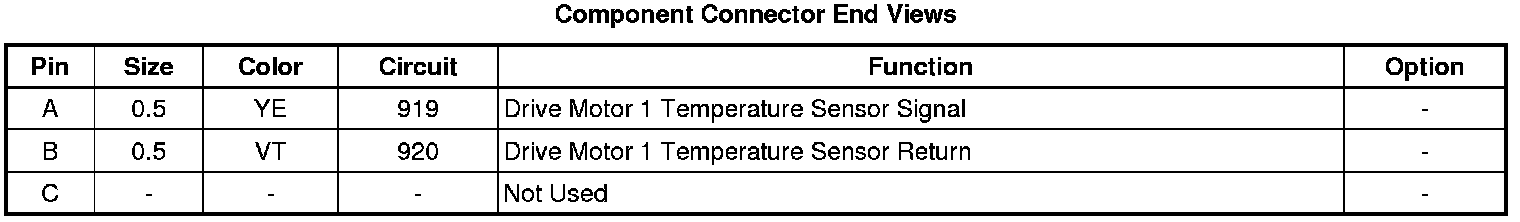

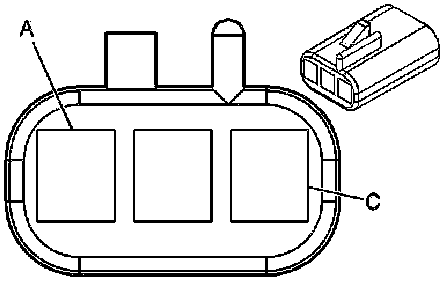

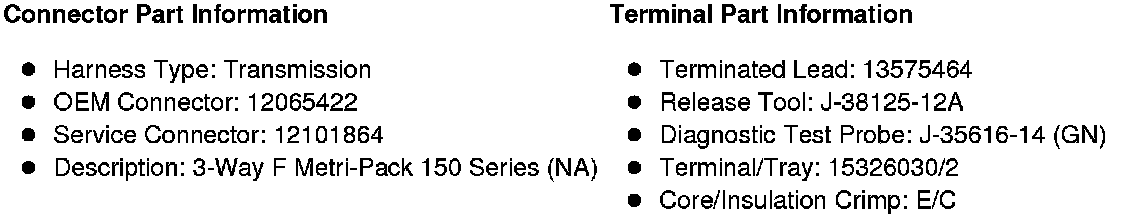

Component Connector End Views

B207A Drive Motor 1 Temperature Sensor
